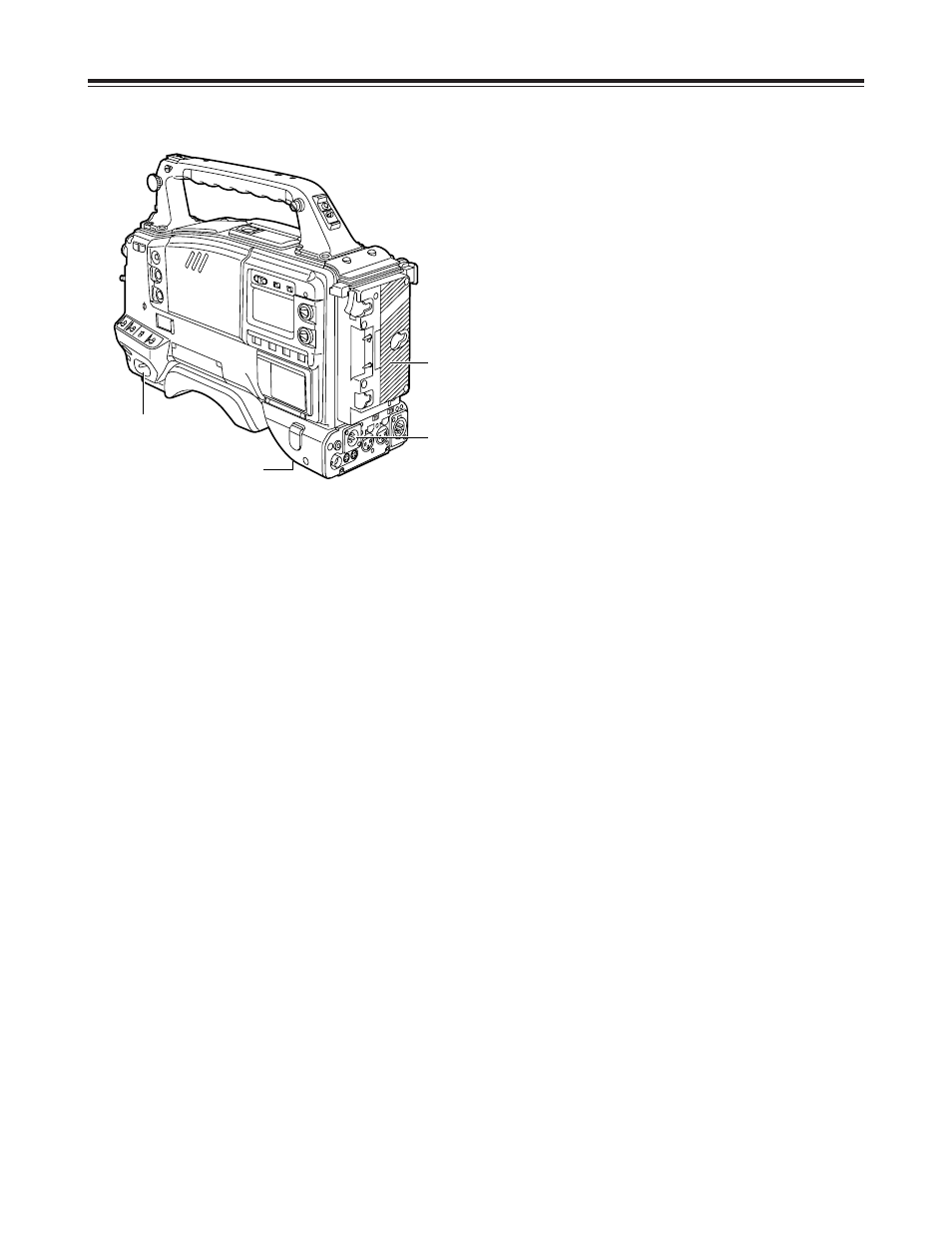

Power supply section

1 Battery mount

This is for attaching the Anton/Bauer battery pack.

2 DC IN (external power input) socket (XLR, 4P)

When operating this unit using an AC power
source, this socket is connected to the model AJ-
B75 AC adapter (optional accessory).

3 BREAKER button

To protect the equipment, the circuit breaker is
tripped when an overcurrent flows inside the unit,
and the power is automatically turned off. Push this
button to the pushed-in position after performing
internal inspections and adjustments. If there is no
problem, the power will be turned back on.

4 POWER switch

ON : Set here to turn on the power.
OFF : Set here to turn off the power.
