The DVR-930H HDD DVD Recorder comes equipped with an HDMI interface, which
enables direct and secure high definition digital content transfer from any audio/video
disc to an HDMI-equipped display… all through a single cable.
For full features and specifications, please see pages 83 and 86.
DVD RECORDERS TECHNOLOGY 25
The DVR-930H incorporates truly advanced 10-bit full digital video processing circuitry,
for smooth and natural-looking pictures. Pioneer’s advanced Video Quality Enhancer
(VQE9) offers precise video quality adjustments using PureCinema Progressive Scan and
Component Frame Recursive Digital Noise Reduction. VQE9 also significantly advances
the progressive processing of all video data. With even further enhanced jagged noise
elimination, you will enjoy crisp and real images — courtesy of Pioneer.
PICTURE-PERFECT, WITH VQE9 (DVR-930H)
VQE9 enhanced image Original signal
Full digital signal transfer from the source to your Pioneer Plasma TV
* To connect a DVI/HDCP compatible device to the HDMI connector, a conversion cable or adapter is necessary. Please note that DVI does not feature audio transfer.
This unit has been designed to be compliant with HDMI version 1.1. Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.
FULL DIGITAL 10-BIT SIGNAL TRANSMISSION
10-BIT 10-BIT
Featuring a built-in, top-of-the-range 108 MHz/14-bit D/A Converter, Pioneer’s DVR-930H offers picture-perfect images at all times. Normally only found in high-end DVD
players, the 108 MHz/14-bit Video DAC boosts image resolution far beyond the limit of traditional data converters. The result? Superior picture quality and very realistic
images, as close to the original DVD source as they can be.
108 MHZ/14-BIT VIDEO D/A CONVERTER (DVR-930H)
Chassis strength and stability are essential to produce superb video and high-fidelity sound. That’s why the DVR-930H
features a dual-layered chassis. Its innovative design absorbs unwanted internal and external vibrations offering stable
audio/video reproduction. The thick steel stabilising plate keeps the driving devices steady, eliminating undesirable
interference that can be caused by vibrations. An additional attachment point for the DVD writer also prevents vibration
and increases stability further. Together, these elements significantly enhance the already superb video and sound
reproduction.
A STABLE BASE FOR BRILLIANT A/V (DVR-930H)
Dual-layered chassis

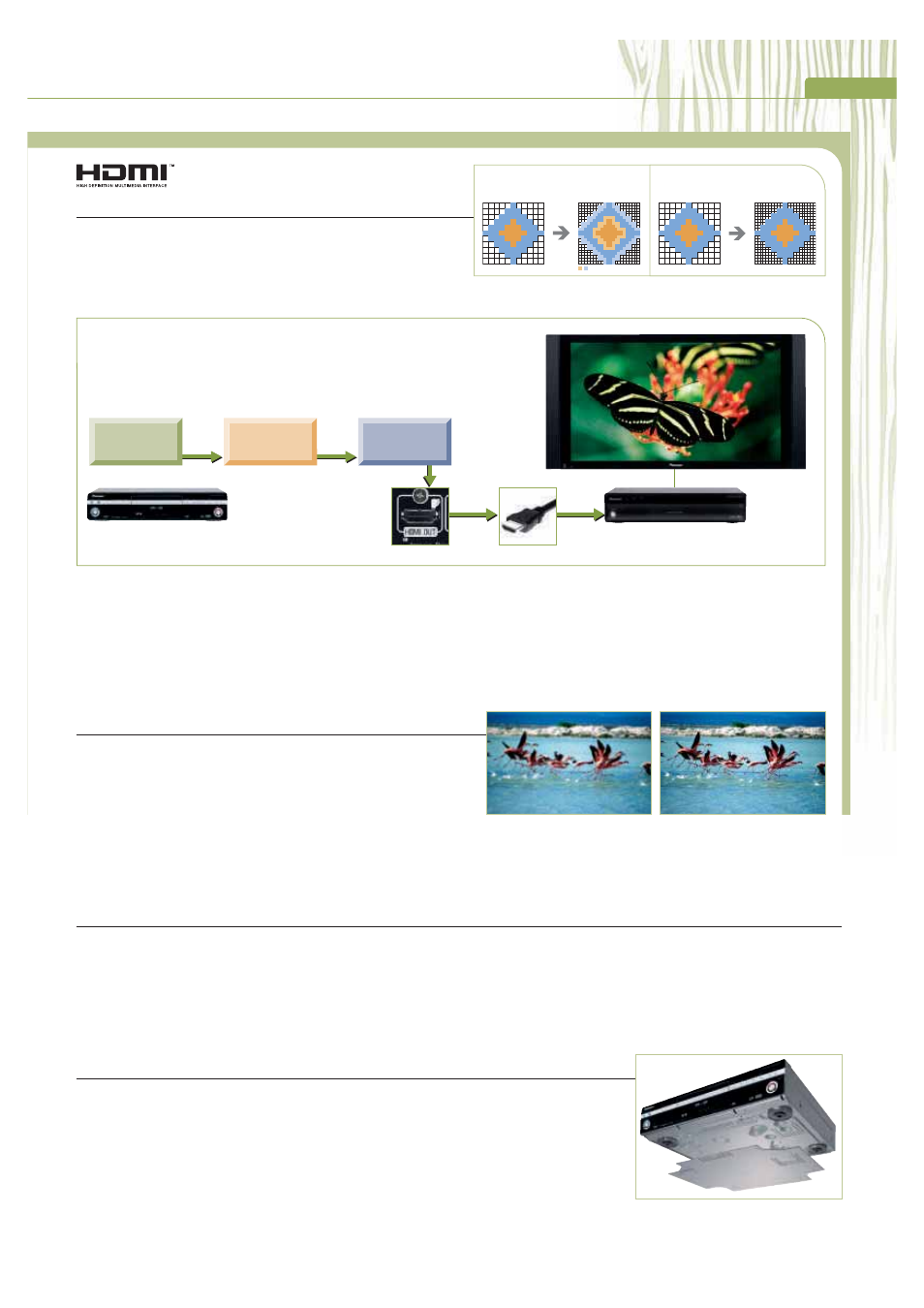

HDMI (HIGH DEFINITION MULTIMEDIA
INTERFACE): THE DIGITAL CONNECTION*
(DVR-930H)
ANALOGUE CONNECTION
-error
HDMI DIGITAL CONNECTION
original display original display
MULTIMEDIA RECEIVER DVR-930H-S
PDP-506FDE
10-BIT
10-BIT 10-BIT
MPEG DECODER
VQE9 10-BIT
VIDEO QUALITY
ENHANCER
HDMI
TRANSMITTER
