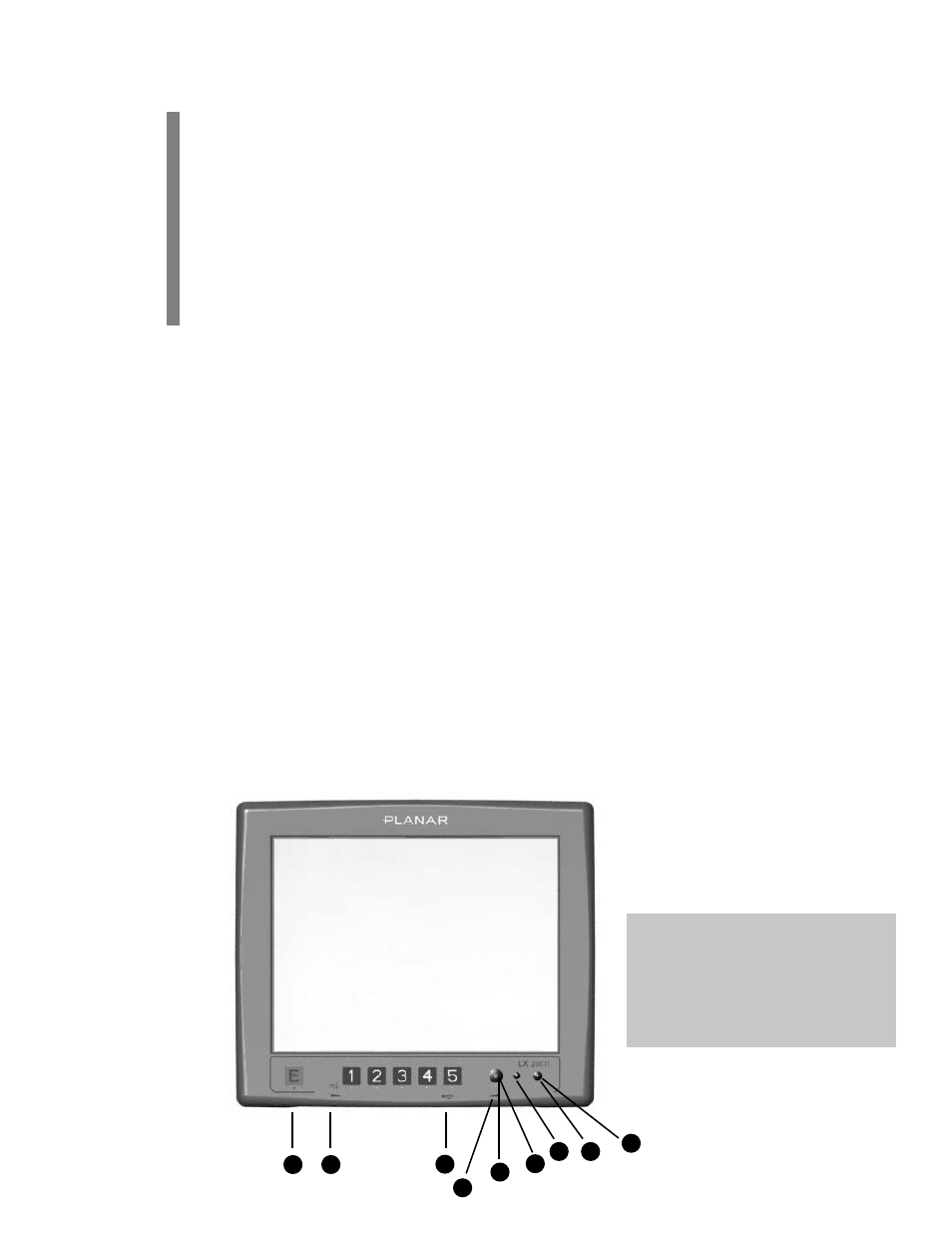

Features and User Controls
USB Type A 1.
Dimming Dial - 2.
Adjust brightness by turning the dial. Turn off the backlight for video •
blanking by turning the dial clockwise.
Remote PC Shutdown/Start Button - 3.
(Sold Separately. Refer to the diagram below). To ensure reliability strain relief as
needed.
This button doesn’t turn off the monitor directly. When connected to a docking •
station it will act as the power button for the computer. When the computer
is turned off , the LED will turn red and the monitor will go into standby. See
User’s Guide for more detail.
Autosync - 4. Press button if video is not centered on screen
Instant Off Backlight Button 5.
Backlight button will also restart the touchscreen if needed. •
Programmable SoftKey Macro Buttons - 6. Refer to the User’s Guide
Speaker Volume 7.
Adjust speaker volume by turning the dial. •
Remote PC LED Status Light 8.
Green - The display is receiving a video signal from the computer. •
Red - Standby mode. No video signal. •
Off - DC Power Off or Backlight Off . •
Backlight Status Light 9.
Green - Backlight On. •
Red - Backlight Off . •
Off - DC Power Off or No Video Signal. •
Features: 2-Port USB Hub,
Video Blanking for Privacy
and Bezel mounted button
controls the Remote PC.
