Din rear-mount, Installation – Pioneer DEX-P9 User Manual
Page 78

77
Installation
DIN Rear-mount

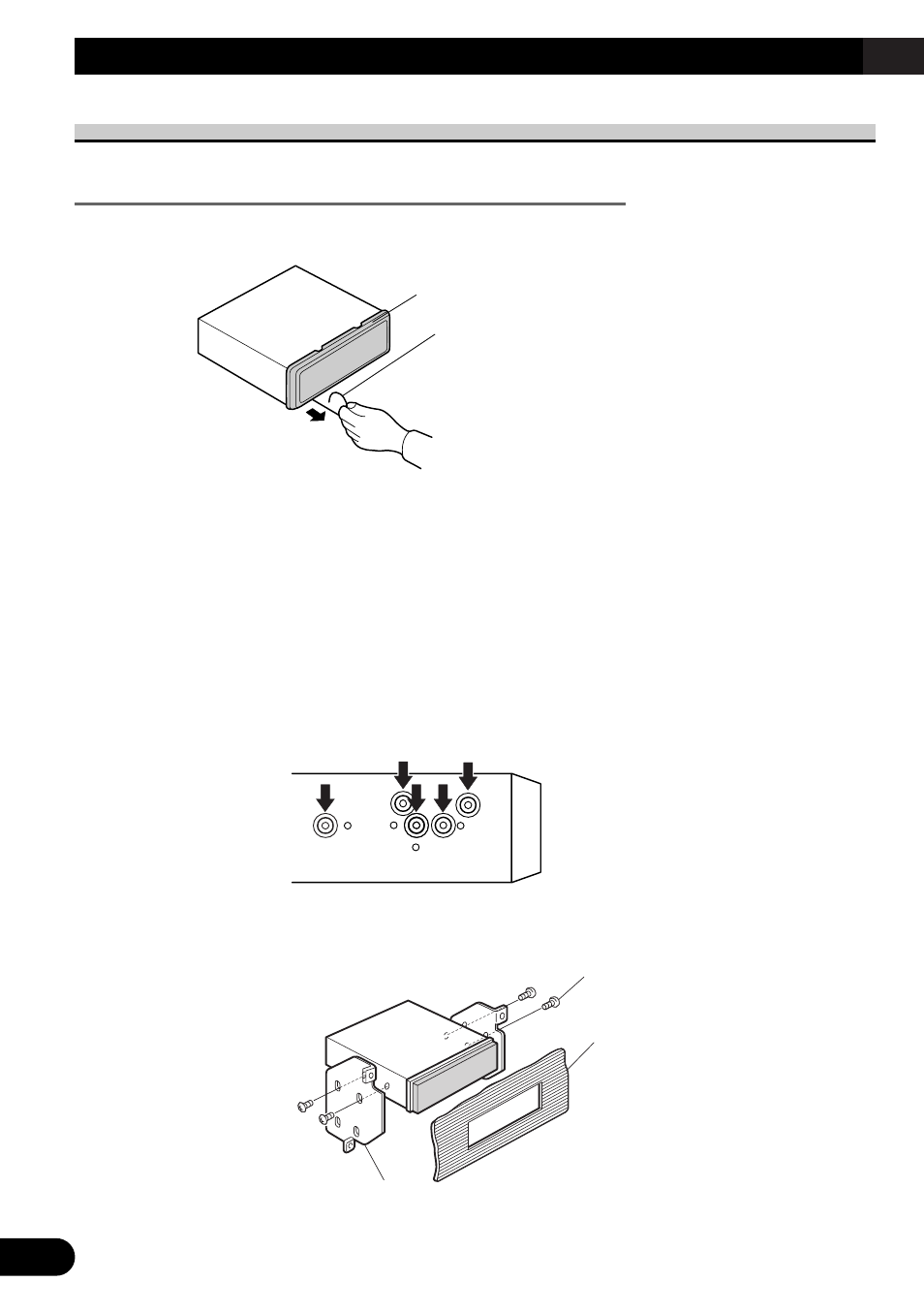

Installation using the screw holes on the side of the unit
1. Remove the frame. (Fig. 11)
Fig. 11
2. Fastening the unit to the factory radio mounting bracket.
(Fig. 12) (Fig. 13)
Select a position where the screw holes of the bracket and
the screw holes of the head unit become aligned (are fitted),
and tighten the screws at 2 places on each side. Use either
binding screws (5
× 6 mm) or flush surface screws
(5
× 6 mm), depending on the shape of the screw holes in
the bracket
.
Fig. 12
Fig. 13
11
13
12
Frame
Insert the release pin into the hole in
the bottom of the frame and pull out
to remove the frame.
(When reattaching the frame, point
the side with a groove downwards
and attach it.)
Screw
Dashboard or Console
Factory radio mounting bracket
