How to connect a DVD Player using Component Video Connections:
Connect the Video cable between the Y, Cb, Cr input jacks on the unit and Y, Cb, Cr output jacks on the DVD player.
Connect the Audio cable between the AUDIO input jack on the unit and AUDIO output jacks on the DVD player.
Note:
This unit identifies the type of component video terminals automatically. If you connect Y, Cb, Cr terminals, the
screen displays YCbCr detected on the bottom-right corner. Similar, if the component video terminals are
Y, Pb, Pr, the screen displays YPbPr detected on the bottom right corner
To play DVD
1. Turn on your PDP TV, press SOURCE button on the remote
control.
2. Press VOL+/- to select C1 (YPbPr1/YCbCr1) or C2 (YPbPr2/YCbCr2).
3. Press ENTER to confirm.
4. Turn on your DVD player, insert a DVD disc and press the Play
button.
Audio
cable Video
cable

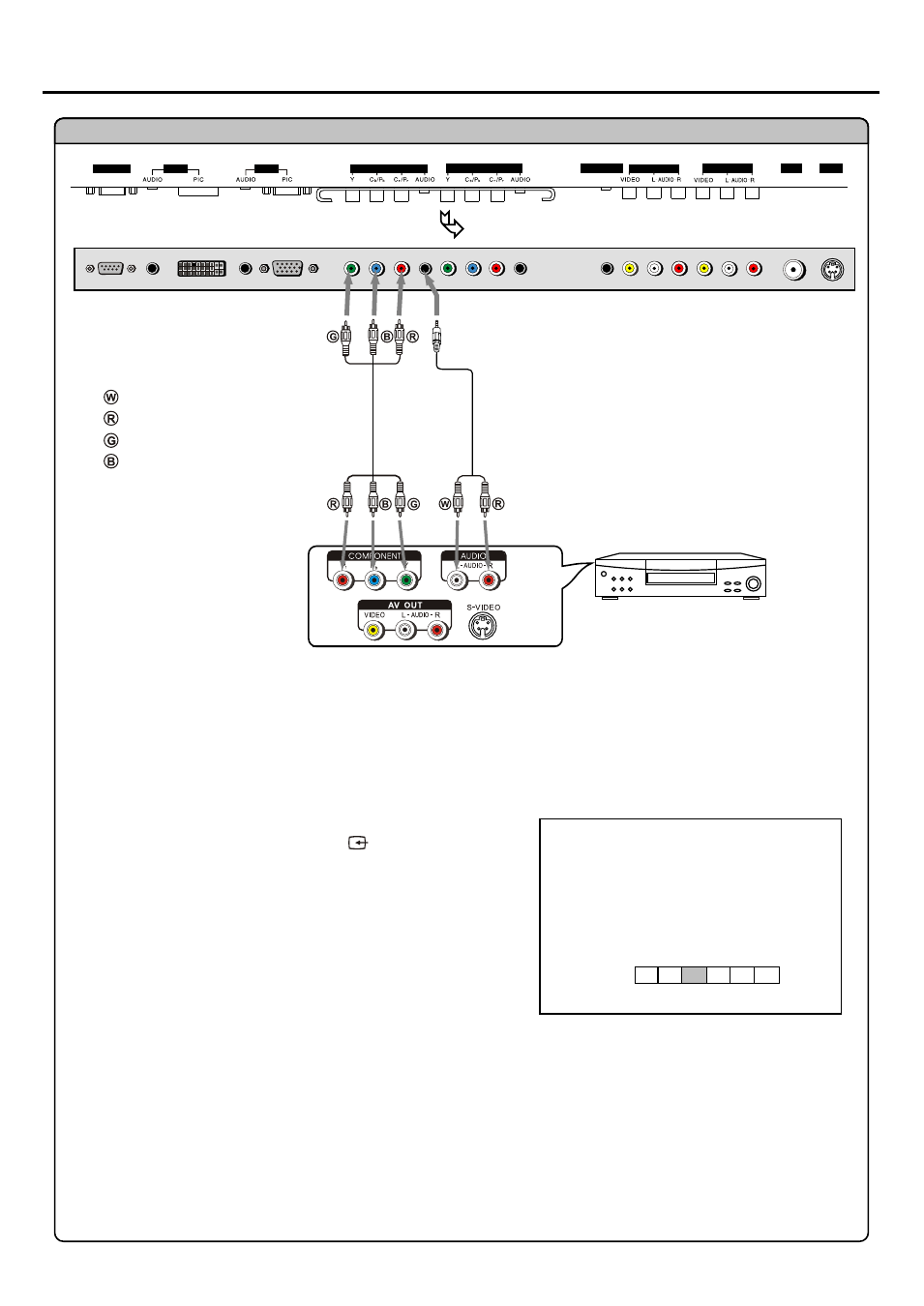

Connect a DVD Player
DVD Player
white (audio L)
red (audio R, Pr/Cr)
Green (Y)
Blue (Pb/Cb)
Rear of the DVD player
YPbPr1/YCbCr1
source A D C1 C2 AV TV
