Identification of Controls
(continued)
9
1. RS232 terminal
For service use only. The user cannot operate the unit through the RS232 terminals.
2. DVI input /Audio in
Receives the digital video/audio signals from a set top box or PC.
3. VGA input /Audio in
Connect to the VGA/audio output jacks on your PC.
4. Component inputs 1 (Y, Pb/Cr, Pr/Cr, Audio)
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
5. Component inputs 2 (Y, Pb/Cr, Pr/Cr, Audio)
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
6. Headphone jack
7. AV outputs (Video, Audio L, R)
Connect to the VCR input jacks to record programs.
8. AV inputs (Video, Audio L, R)
Receive a video/audio signals from external sources such as VCR or DVD player.
9. Antenna input
Allows you to connect cable or outdoor antenna.
10. S-Video input
Receive a S-Video signal from external source such as VCR or DVD player.
Speaker output jacks
AC power
input socket
1 2 3 4 5 6 7 8 9 10

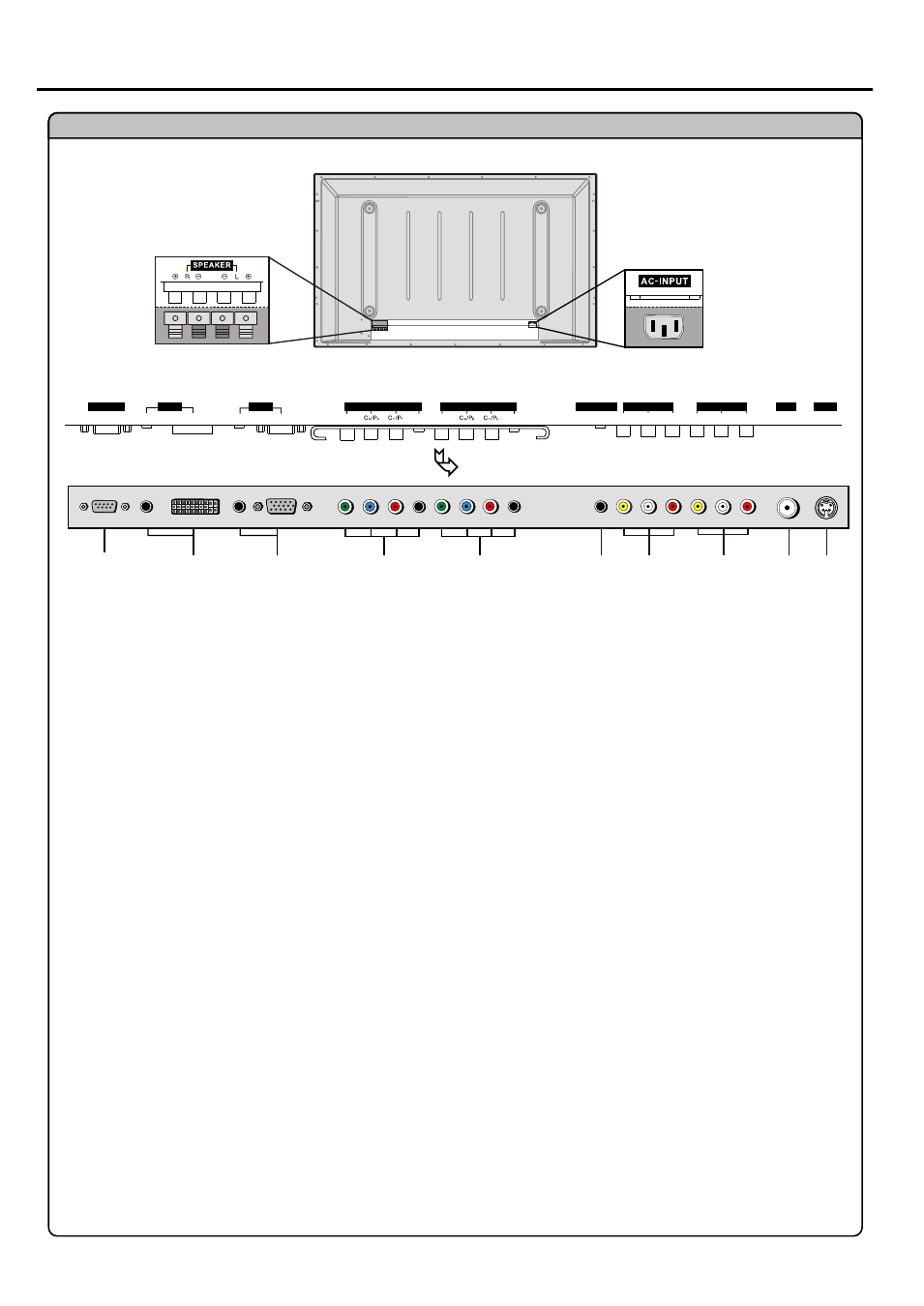

Main unit (rear view)
BOTTOM VIEW
PIC AUDIO AUDIO Y Y AUDIO AUDIO L - AUDIO - R L - AUDIO - R VIDEO
CONTROL DVI D-SUB COMPONENT INPUT 1 COMPONENT INPUT 2 AV OUTPUT AV INPUT HEADPHONE RF SVHS
VIDEO PIC
