COMPONENT DIAGRAMS – Model 1900HT-M

Firebrick (Note: All brick are 1 ¼” thick)

Part/Catalog #

Quantity

Dimensions

Part/Catalog #

Quantity

Dimensions

FB-1

10

9 x 4 1/2”

FB9

2

9 x 1” notched

FB-2

2

9 x 4 1/2” w/notch

FB11

2

4 1/2 x 4 1/2”

FB-3

2

9 x 4 1/2” w/hole

FB23

2

5 x 1”

FB7

4

9 x 2 1/8”

37075 (grate)

2

4 1/2 x 4 3/8”

PAGE 21

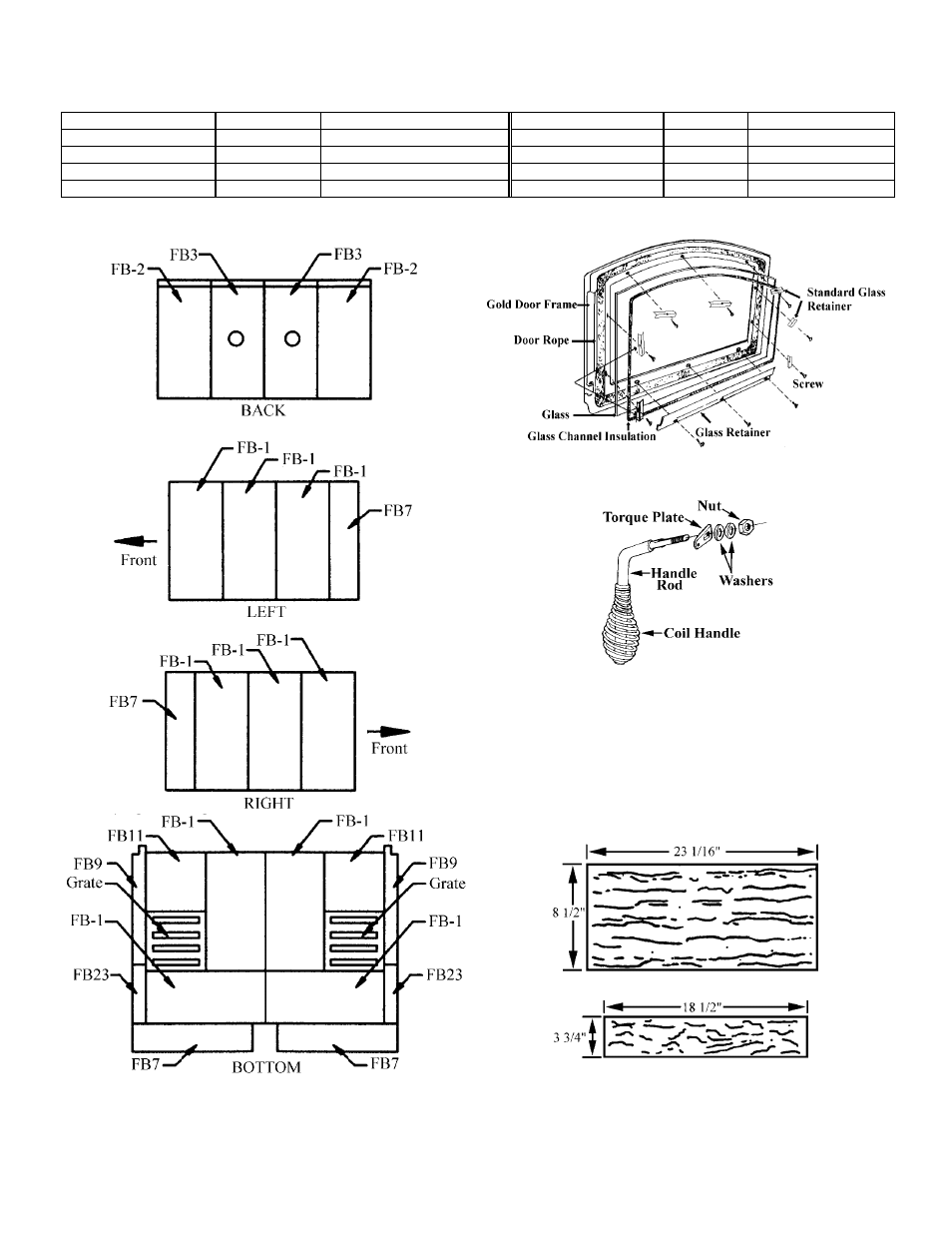

FIREBRICK DIAGRAM

DOOR ASSEMBLY

HANDLE ASSEMBLY



MARBLE SETS
(INSETS FOR STOVE TOP & ASHLIP)

Part/Catalog# MS1502–Gray Marble Set
Part/Catalog# MS1505–Green Marble Set

Marble is a natural product and therefore each piece will have its
own unique character.
