7
S y s t e m w i r i n g

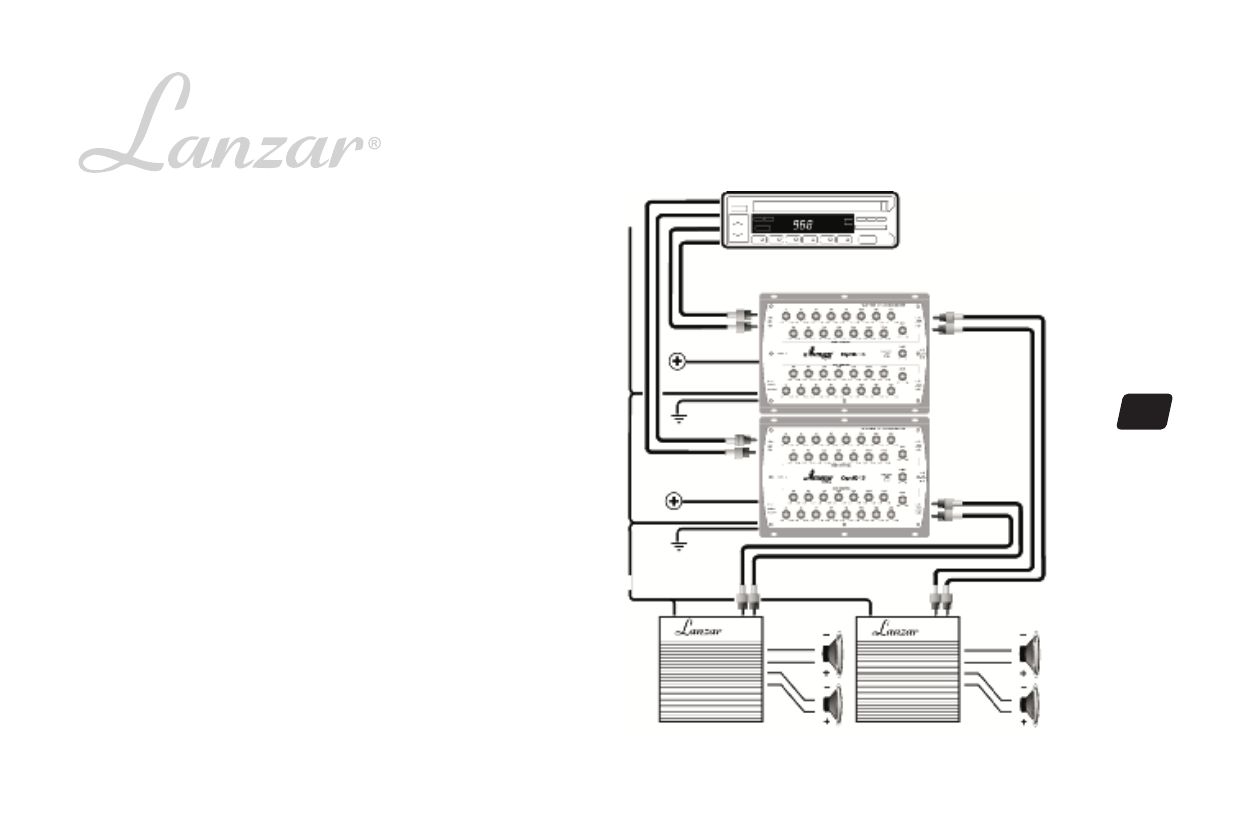

Dual E-15 2 + 2 Channel Output Using 4 RCA Inputs
Two Model E-15s are required for this configuration. For
more exact control, the E-15s can be configured into separate mono
units with the outputs summing the signal into stereo.
If your head unit has two pairs of RCA outputs, plug both of the left
outputs into the E-15’s left inputs and both of the right outputs
into the E-15’s right inputs. Place both of the fader controls of the
E-15’s into the center detent position.
Speakers Speakers
TO FRONT OUTPUT
OF HEAD UNIT
Head unit (Stereo, DVD Player, Tape Deck, etc.)
TO REAR
AMPLIFIER
TO FRONT
AMPLIFIER
FRONT CHANNEL
Speakers
REAR CHANNEL
Speakers
to
REMOTE
OUTPUT
from
HEAD
UNIT
to AMP REMOTE ON
TO REAR
OUTPUT
OF HEAD UNIT
to BATTERY
to GROUND
to AMP
REMOTE ON
to BATTERY
to GROUND
to AMP
REMOTE ON
