6

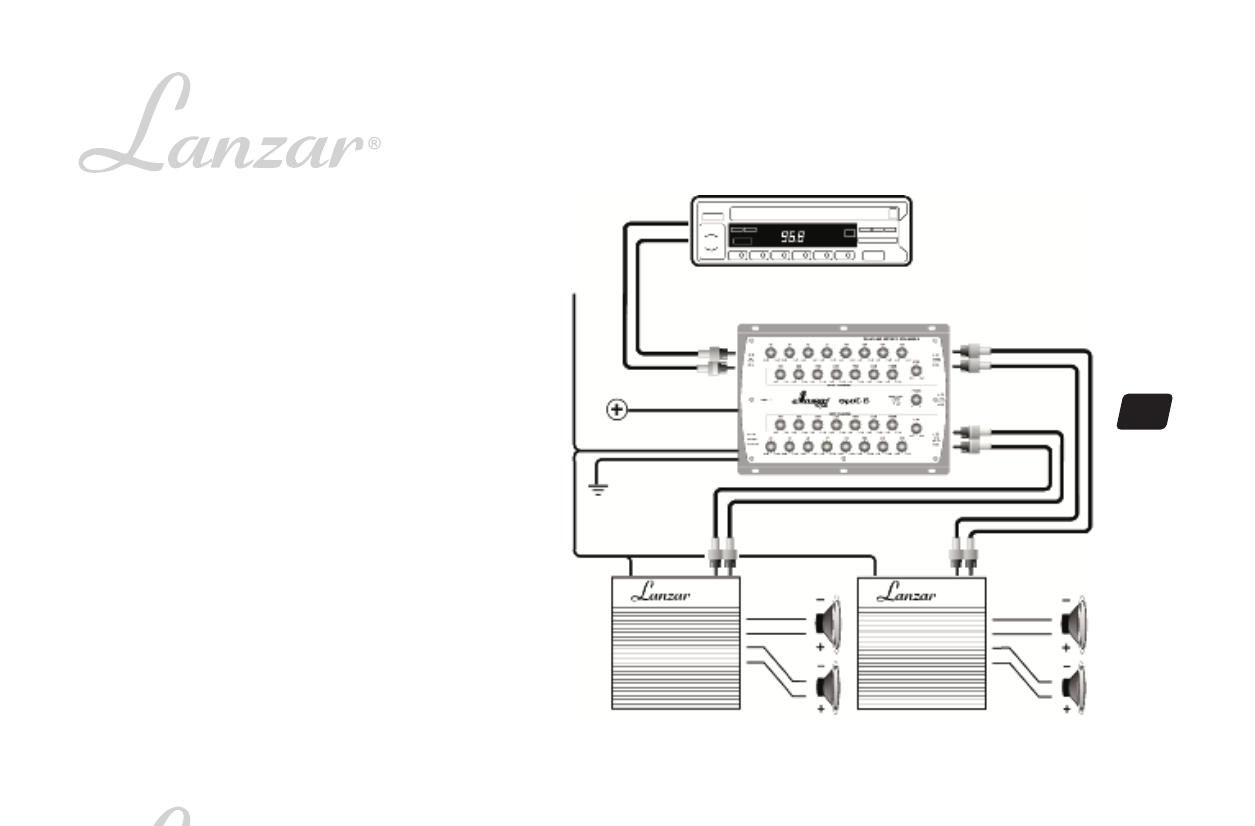

S y s t e m w i r i n g
Standard 4-Channel Output
For standard 4-channel operation, plug both the left and right RCA
outputs from your head unit into the E-15 inputs. The output power
can be distributed to either the front or rear speakers by using the
fader control. With the fader is in the center detent position, you
will have balanced output between your front and rear channels.
Turning the fader to either the front or rear position results in
increased signal strength to that particular side while decreasing
signal strength to the other side.
FRONT CHANNEL
Speakers
REAR CHANNEL
Speakers
TO OUTPUT
OF HEAD UNIT
Head unit (Stereo, DVD Player, Tape Deck, etc.)
TO REAR
AMPLIFIER
TO FRONT
AMPLIFIER
to
REMOTE
OUTPUT
from
HEAD
UNIT
to BATTERY
to GROUND
to AMP
REMOTE ON
