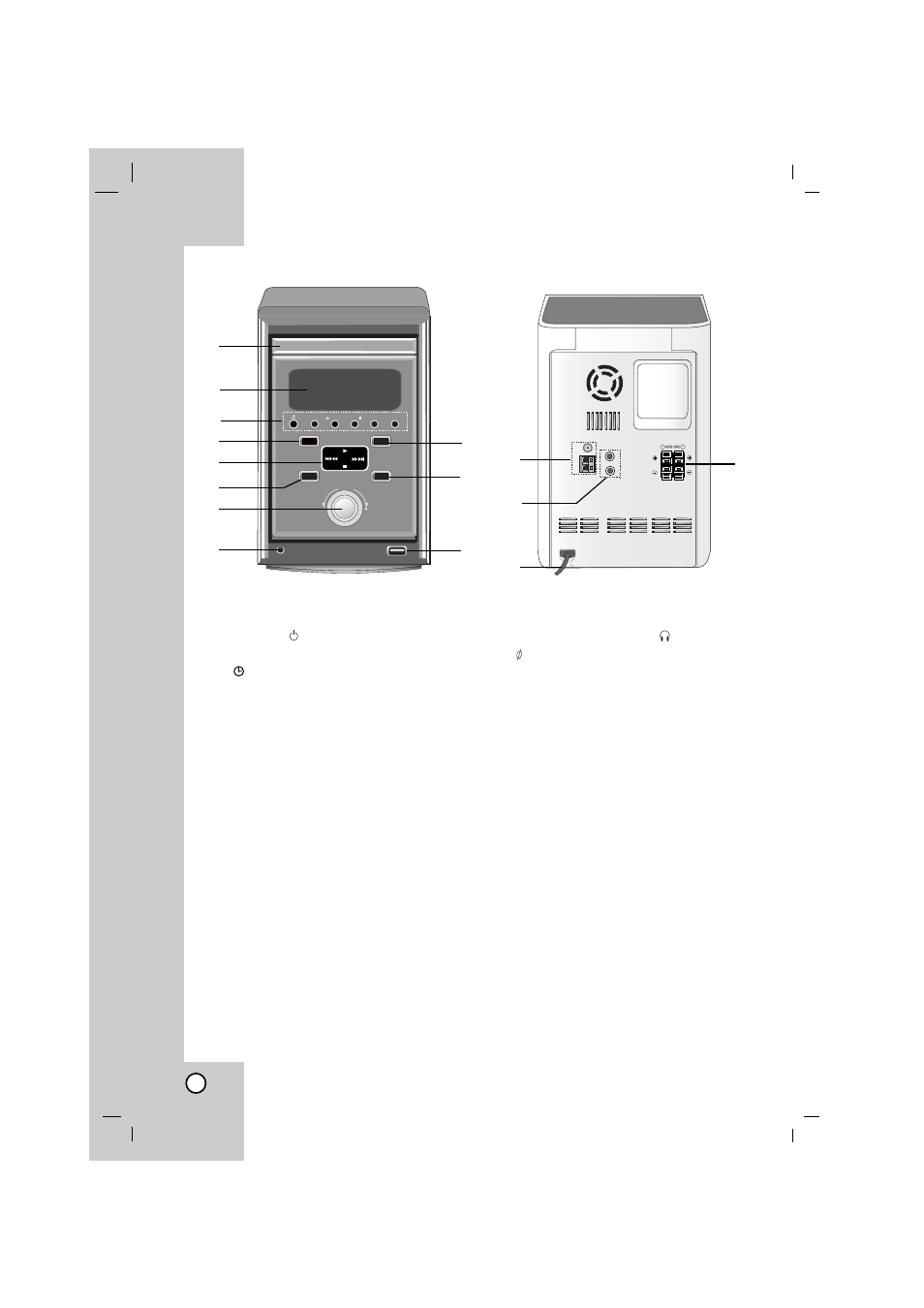

Front Front / / Rear Panel Rear Panel
1. CD DOOR
2. DISPLAY WINDOW
3. • POWER ( ) button
• CLOCK button
• TIMER button
• SET/CD[] button
• MP3 OPT. button
• MONO/STEREO (MONO/ST.) button
• Z OPEN/CLOSE button
4. FUNCTION (FUNC.) button
(FM, AM, CD, AUX, USB)
5. • PLAY ( B B ) button
• STOP(x) button
• TUN. (-/+) buttons (TUNER)
• CD SKIP/SEARCH (. b bb b/B BB B >)
buttons
6. XTSpro button
7. VOLUME CONTROL KNOB
8. HEADPHONE SOCKET ( PHONES):
3.5mm
9. USB connector
10. EQUALIZER PATTERN (EQ) button
11. XDSS button
12. ANTENNA TERMINAL
13. AUXILIARY INPUT (AUX) connector
14. POWER CORD
15. SPEAKER TERMINAL
