Life Fitness Utility Bench User Manual
Page 7

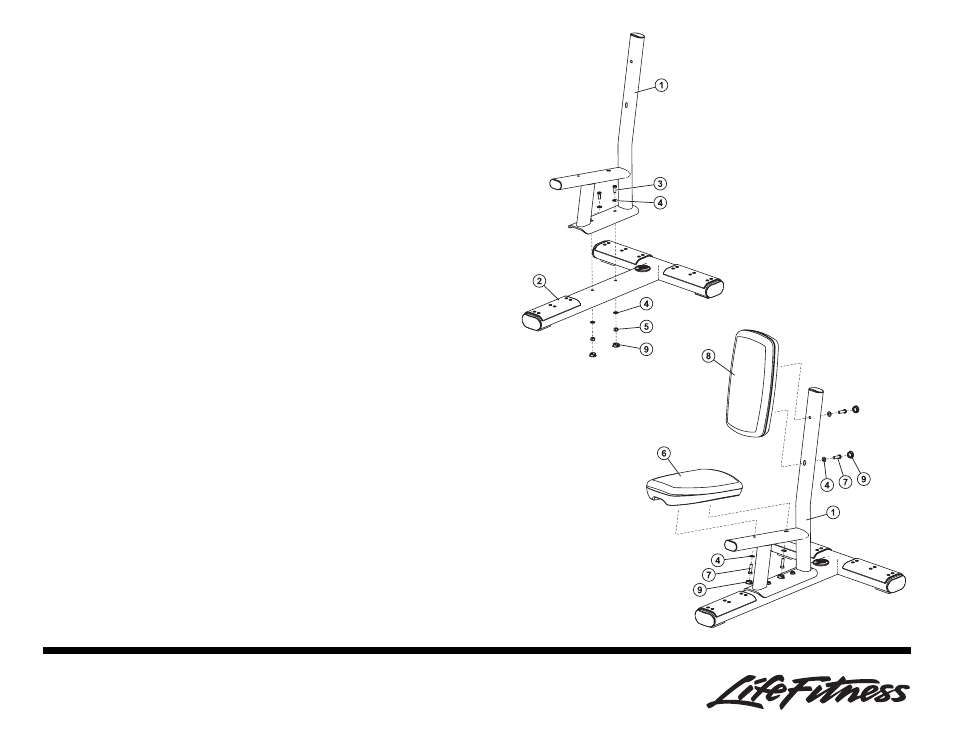

1. Assemble the SEAT FRAME (1) to the BASE FRAME (2) using two M10 X
25mm BOLTS (3), four 3/8" SAE WASHERS (4) and two M10 NYLOCK
NUTS (5) as shown. Tighten the BOLTS and NUTS securely.
2. Assemble the SEAT PAD (6) to the SEAT FRAME (1) using two M10 X
35mm BOLTS (7) and two 3/8" SAE WASHERS (4). Tighten the BOLTS
securely.
3. Assemble the BACK PAD (8) to the SEAT FRAME (1) as shown using two
M10 X 35mm BOLTS (7) and two 3/8" SAE WASHERS (4). Tighten the
BOLTS securely.
4. Install 1” HOLE PLUGS (9) in all open bolt holes.
