Life Fitness PLLHP User Manual

Page 8

background image

8

10

9

7

6

5

4

3

2

1

13

11

5

5

5

15

14

10

12

6-

3/

4"

Page 8

________________________________________

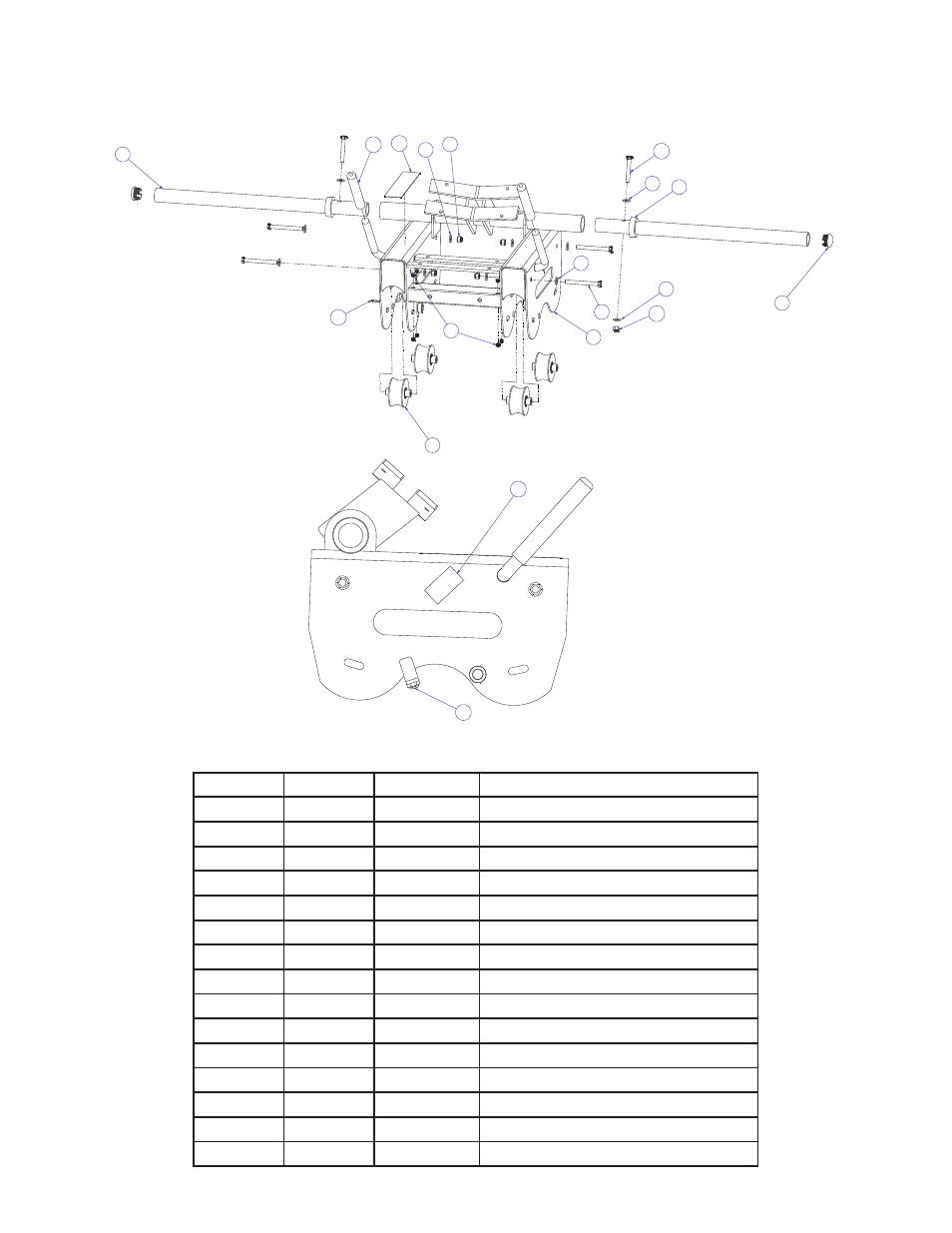

CARRIAGE ASSEMBLY - 7678701

PLLHP PLATE LOADED LINEAR HACK PRESS

ITEM NO.

QTY.

PART NO.

DESCRIPTION

1

1

7678801

WLDMT, PLLHP CARRIAGE

2

4

3251501

ROLLER ASSY

3

2

7767301

TUBE, PLLHP WEIGHT BAR

4

2

H-BENDCAP BULLET CAP

5

12

3102507

WASHER, TYPE A PLAIN

6

4

3102801

NUT, NYLOCK 1/2-13 ST ZN

7

4

3239319

1/2-13 X 4.75 UNS HEX FHB G5 ZN

8

2

7671601

MM5 RING

9

8

3237402

PLUG, HOLE

10

1

7570801

GUARD, PAINT 1.25"x.75"x.25"

11

2

H-GRIP

HAND GRIP

12

2

7422003

LABEL, MOVING PARTS

13

1

7943801

PLACARD, PLLHP

14

2

3239310

1/2-13 X2.50 UNS HEX FHB G5 ZN

15

2

3102804

NUT, NYLOCK 1/2-13 LOW HT
