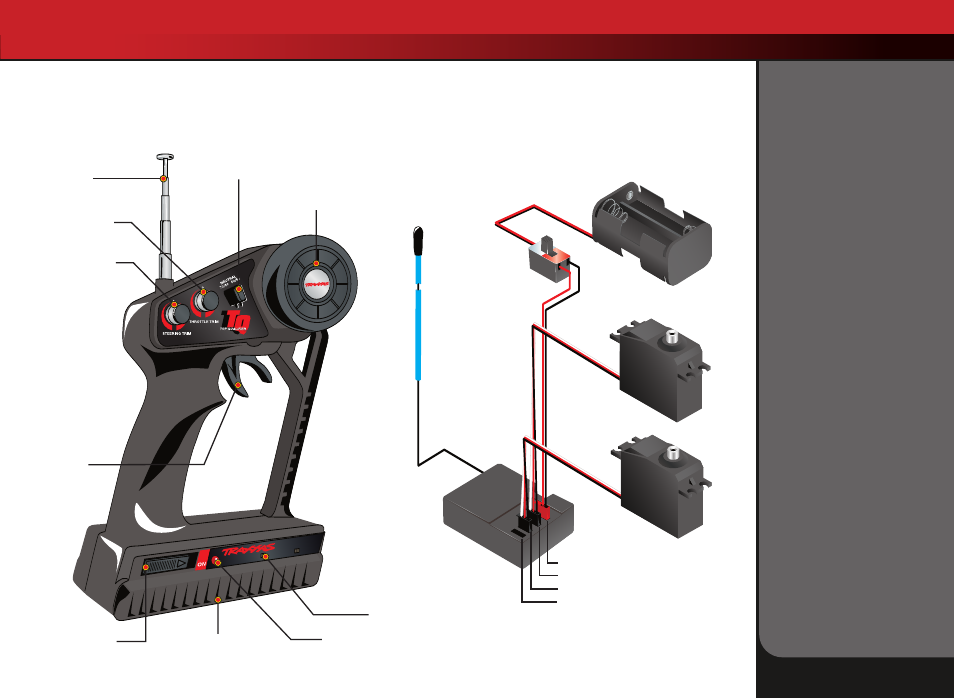

The Traxxas TQ Radio System
Your Nitro 4-Tec (model 4809) is equipped with the TQ Radio System. The TQ is a 2-channel system that provides high-power output up
to a quarter mile and control for two servos. The Nitro 4-Tec makes use of two channels for throttle/brake and steering.
Antenna
Throttle Neutral Adjust
Steering Wheel
Throttle Trim
Steering Trim
Power Switch Power Indicator Battery Compartment
Servo Reversing
Switch
Throttle
Trigger
Nitro 4-Tec 3.3 Wiring Diagram TQ Transmitter
Antenna
On/Off
Switch
Receiver
4-Cell Battery
Holder
Steering
Servo
Throttle
Servo
Battery
Channel 1
Channel 2
Not Used
(Channel 3)
