7 Chapter 3: Getting to Know the Wireless-G Range Expander
The Power Plate
Wireless-G Range Expander
The Power Plate
The back of the Range Expander has a recess where its power plates can be connected. Two
power plates come with the Range Expander, one with two prongs for connecting directly to a
power outlet, and another with a cord to reach a power outlet.
These power plates are slid into the recess and are fully connected when the orange tab snaps
into place. To remove the power plate, slide the tab to the right and slide out the power plate.
Always unplug the Range Expander before removing the power plate.

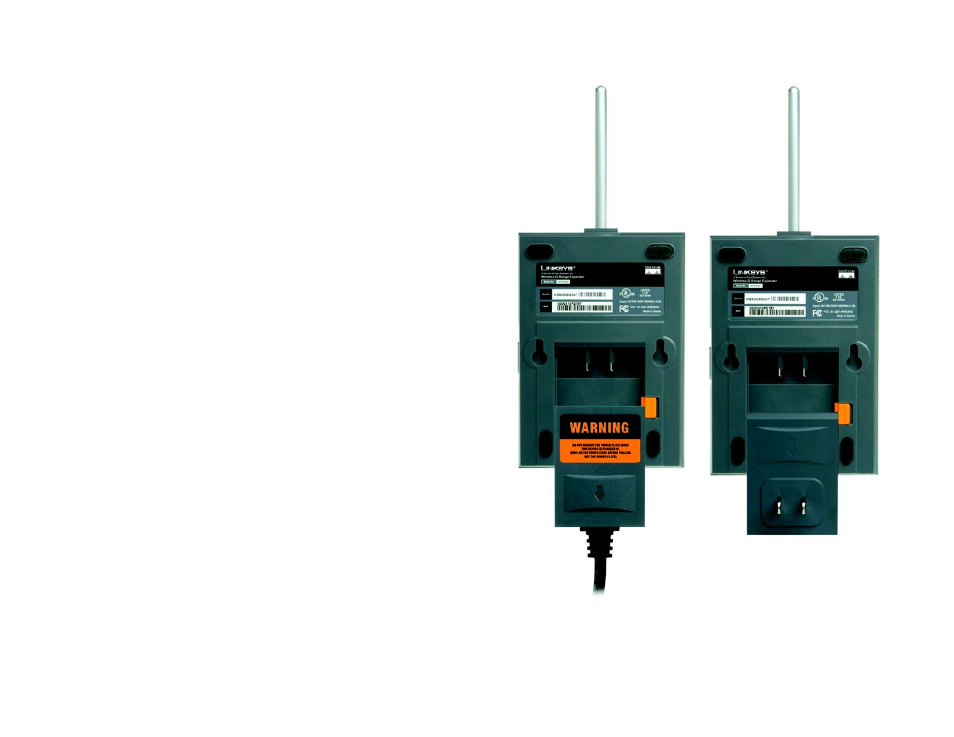

Figure 3-2: The Power Plate
with Cord
Figure 3-3: The Two-
Prong Power Plate
