Life Fitness 93S User Manual
Page 4
T
OOLS
R
EQUIRED FOR
A
SSEMBLY...
Phillips Screwdriver, T27 Torx Screwdriver, Socket
Set

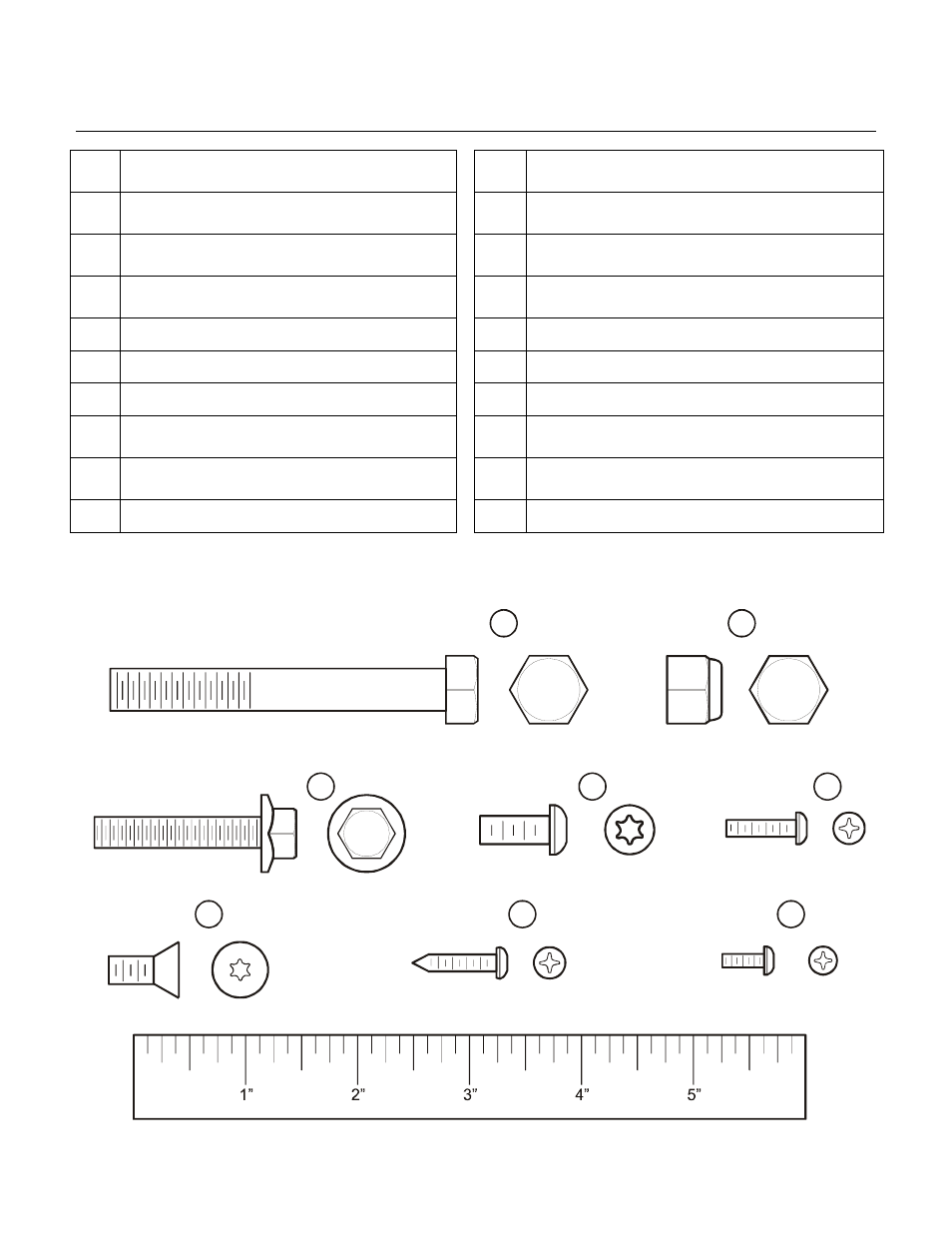

P
ARTS
D
ESCRIPTION
1
Hex Head Bolt
Qty: 2
3/8 – 16 x 3
2
Lock Nut
Qty: 2
3/8 – 16
3
Hex Head Bolt
Qty: 2
5/16 – 18 x 1.500
4
Torx Cap Screw
(Model 93S) Qty:
4
1/4 – 20 x .625
(Model 90S) Qty:
10
5
Phillips Pan Head Screw
(Model 93S) Qty:
8
#8 – 18 x .625
(Model 90S) Qty:
4
6
Flat Head Screw
(Model 93S) Qty:
6
1/4 – 20 x .625
7
Phillips Pan Head Screw
Qty: 4
#8 – 18 x .75
8
Phillips Cap Screw
Qty: 2
#6 – 32 x .375
9
Display Console Assembly
Qty: 1
10 Monocolumn
Qty:
1
11 Accessory
Tray
(Model 93S) Qty:
1
12
Vertical Handrail
Qty: 2
13
Left Bullhorn Handlebar
(Model 93S) Qty:
1
14
Right Bullhorn Handlebar
(Model 93S) Qty:
1
15
Handlebar Assembly
Qty: 1
16 Polar
®
Receiver
(Model 93S) Qty:
1
(Model 90S International) Qty:
1
17 Telemetry
Cable
(Model 93S) Qty:
1
(Model 90S International) Qty:
1
18
Frame Cap
Qty: 2
19
Polar Cover
Qty: 1
20
Monocolumn Shroud
Qty: 1
1
2
5
4
3
6
7
8
