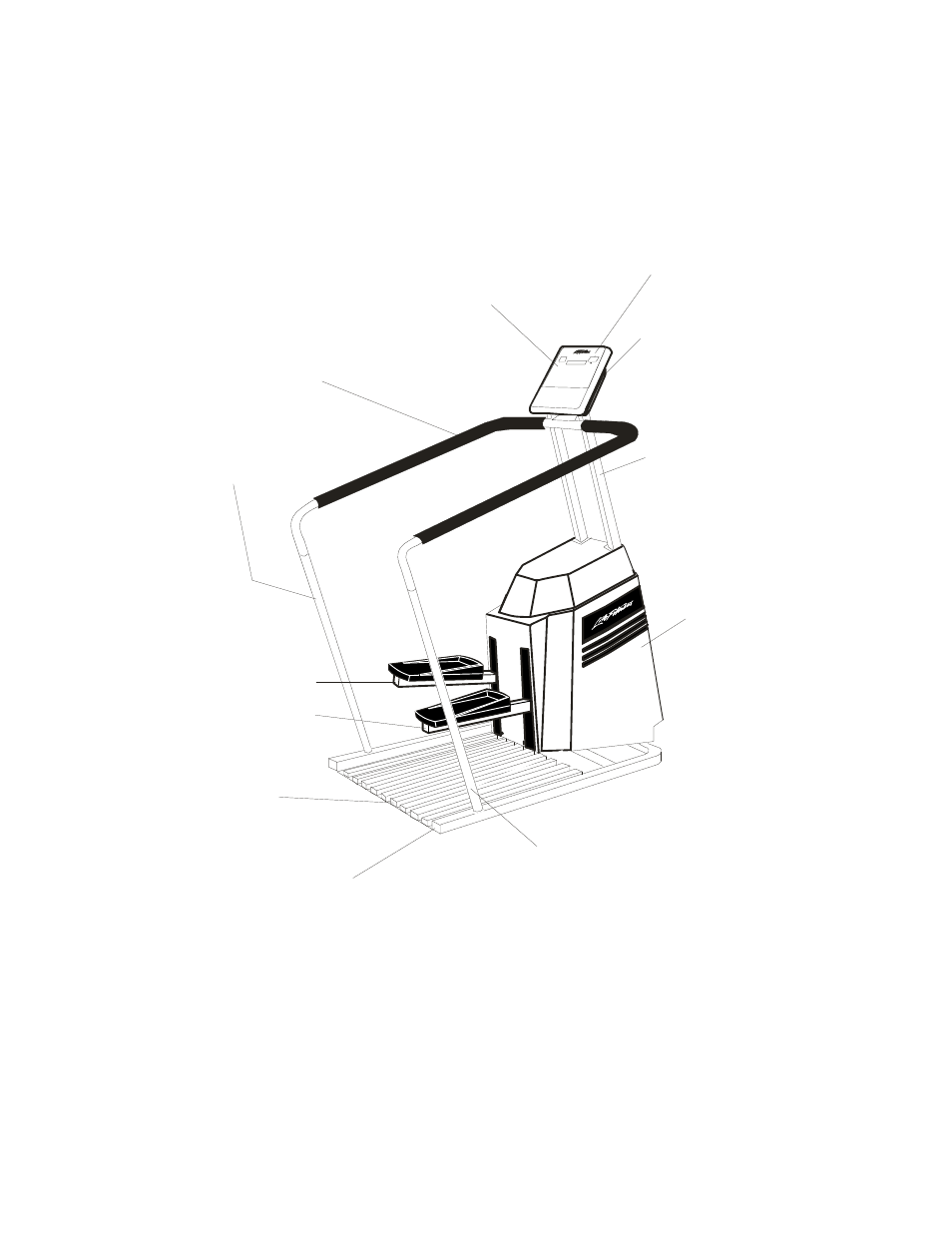

LS-1000

STAIRCLIMBERS

GK24-00001-XXXX


1 of 2

rev. 07/05/05

Console Assembly
AK24-00027-0002 Eng/Met

AK24-00027-0001 Ger/Met

Overlay Bezel
AK24-00085-0000 Eng/Eng

AK24-00085-0001 Ger/Met

AK24-00085-0003 Eng/Met

Display Console Bracket
OK24-01074-0000

Column Panel Assembly
AK24-00050-0000

Molded Handle Assembly
OK24-01016-0001

Vertical Handle(LT)

OK24-01017-0002

Pedal Lever Assembly(LT)
AK24-00049-0002
Pedal Lever Assembly(RT)
AK24-00049-0001

Drip Tray Assembly
AK24-00048-0000

End Cap(2)
OK14-01305-0000

Vertical Handle(RT)
OK24-01017-0001

Shroud w/Decal

AK24-00046-0000
