Status LEDs

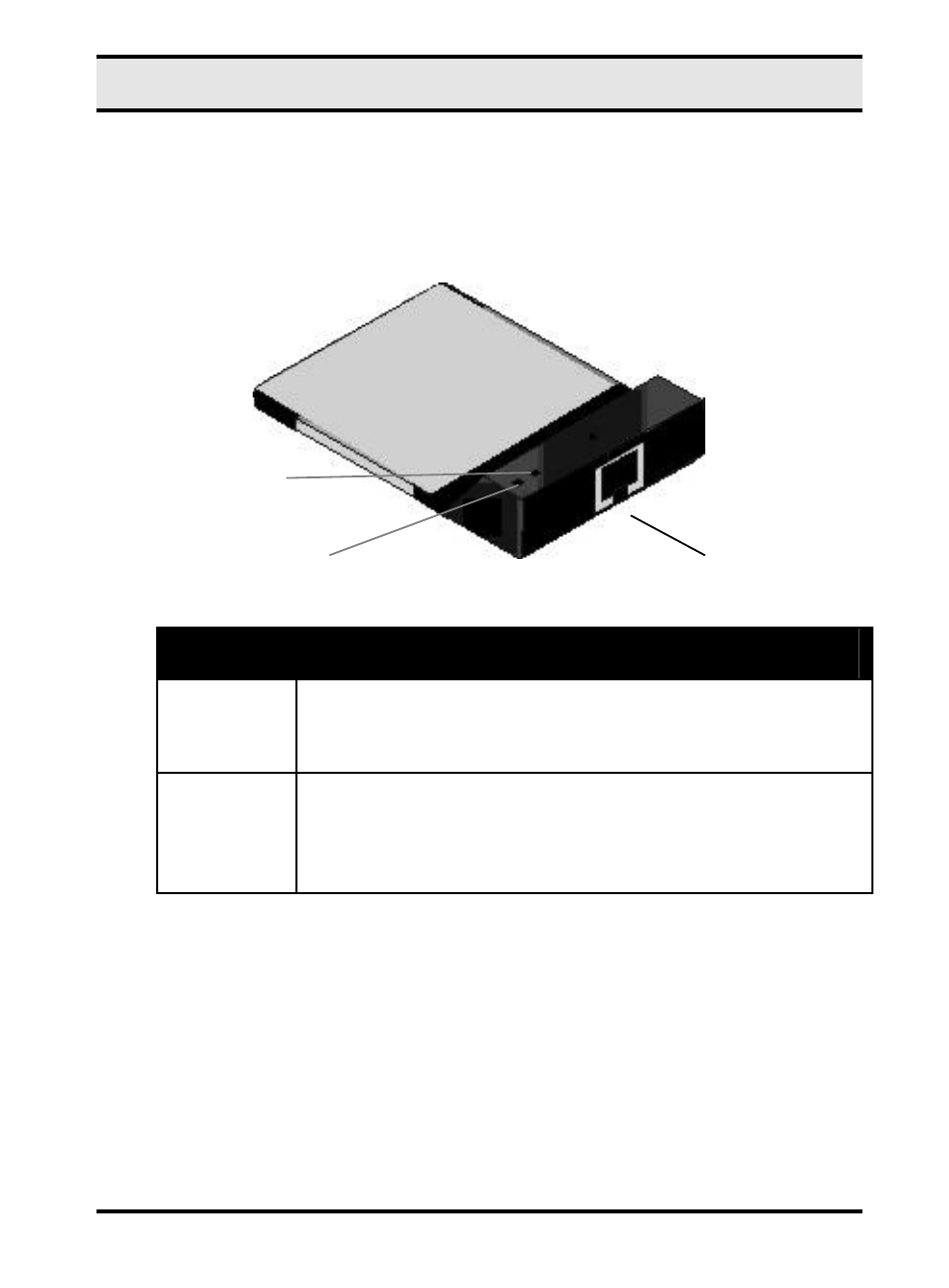

The following illustration shows the LevelOne 10/100Mbps 32bit
Fast Ethernet PC Card LEDs:
The following table describes the meaning of the LEDs:
LED MEANING
10/100M Indicates the connection speed. When off, the
connection speed is 10 Mbps. When on, the connection
speed is 100 Mbps.
LINK/ACT Indicates link status and transmit/receive activity. It is
normally off. When off, indicates that the link is inactive.
When lit, indicates that the link is active. When there is
packet transmit or receive activity, this LED is blinking.
RJ-45
LINK/ACT LED
10/100M LED
