12 Chapter 4: Connecting the Wireless-N Access Point
Placement Options
Wireless-N Access Point with Power Over Ethernet
Placement Options
There are three ways to place the Wireless-N Access Point. The first way is to place it horizontally on a surface,
so it sits on its four rubber feet. The second way is to stand the Access Point vertically on a surface. The third way
is to mount it on a wall. The stand and wall-mount options are explained in further detail below.
Stand Option
1. Locate the Access Point’s left side panel.
2. The Access Point includes two stands. With the two large prongs facing outward, insert the short prongs into
the little slots in the Access Point, and push the stand upward until it snaps into place.
Repeat this step with the other stand.
Now that the hardware installation is complete, proceed to “Chapter 5: Setting up the Wireless-N Access
Point,” for directions on how to set up the Access Point."
Wall-Mount Option
1. On the Access Point’s back panel are two criss-cross wall-mount slots.
2. Determine where you want to mount the Access Point, and install two screws that are 2-15/16" apart.
3. Line up the Access Point so that the wall-mount slots line up with the two screws.
4. Place the wall-mount slots over the screws and slide the Access Point down until the screws fit snugly into
the wall-mount slots.
Now that the hardware installation is complete, proceed to “Chapter 5: Setting up the Wireless-N Access
Point,” for directions on how to set up the Access Point."

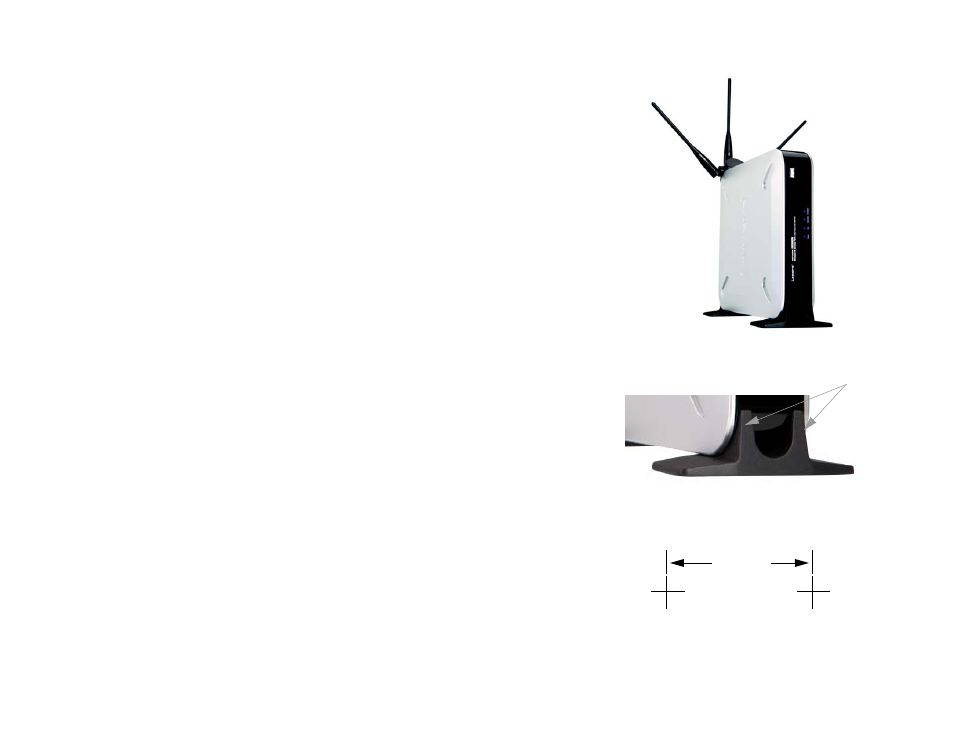

Figure 4-3: The Stand Option
Figure 4-4: Stand
Figure 4-5: Mounting Dimensions
2-15/16"
Large
Prongs
