5 Chapter 2: Planning Your Wireless Network
Example of a simple wireless network
Wireless-N Access Point with Power Over Ethernet
wireless connectivity. These wireless products can also communicate with a 802.11n, 802.11g or 802.11b
wireless print server (if available).
To link your wired network with your wireless network, connect the Access Point’s Ethernet network port to any
switch or router with Power over Ethernet (PoE)—or a PoE injector, such as the Linksys WAPPOE or WAPPOE12.
Note that the 12 VDC on the WAPPOE12 is for the splitter output. Both PoE Injectors provide 48 VDC power output.
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about wireless products.
Example of a simple wireless network

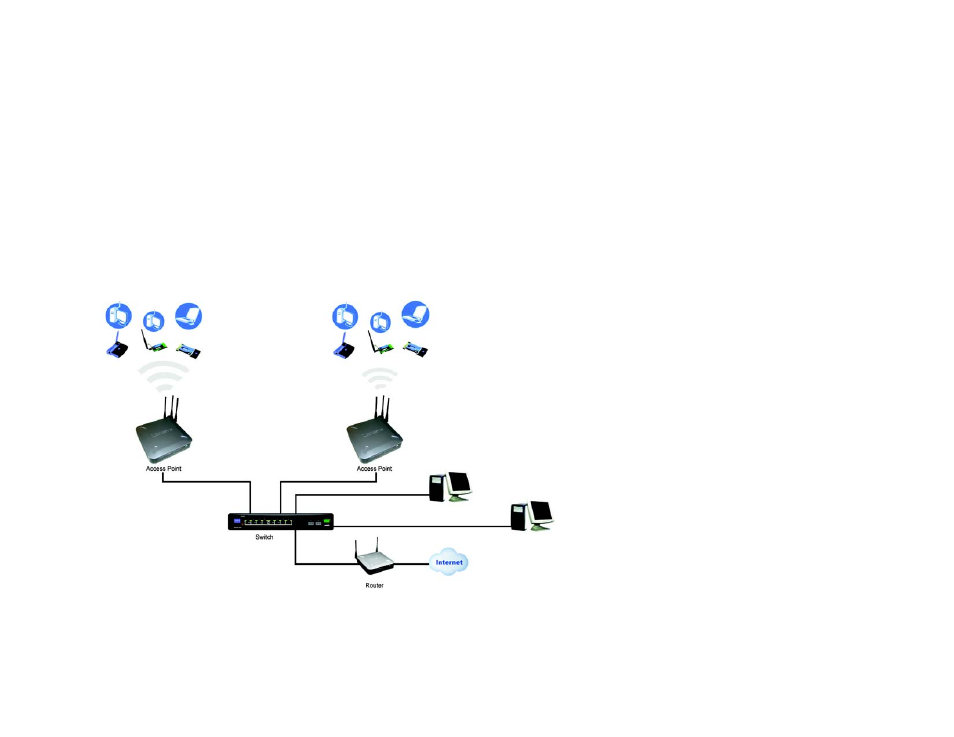

Figure 2-1: Example of a Simple Wireless Network
