• Insert the two GUIDE RODS (15) into the base
of the TOWER (3) as shown in FIGURE 10.
Lubricate the GUIDE RODS (15) with a slicon
or teflon spray that is available at most
hardware stores.
STEP 10
• Slide two WEIGHT STACK CUSHIONS (36)
down over the GUIDE RODS (15). See FIG-
URE 10.
• Using EXTREME CARE slide fifteen
WEIGHT PLATES (35) down over the
GUIDE RODS (15) with the key-hole facing
as shown in FIGURE 10.
• Securely assemble the WEIGHT STACK
SHAFT (32) to the HEAD PLATE (33) using
one 3/8 X 1-1/4” BOLT (20) and one 3/8”
WASHER (25). (Note: The bolt hole in the
HEAD PLATE (33) should be on top.)
• Carefully Slide the HEAD PLATE ASSEM-
BLY (32 & 33) down over the GUIDE RODS
(15) onto the weight stack as shown in FIG-
URE 10.
9
• Apply one set of WEIGHT STACK LABELS
- LBS. OR 1-25 (38) (39) to each WEIGHT
PLATE (35) as shown in FIGURE 10.
• Slide two 13/16” SHAFT COLLARS (31)
over the GUIDE RODS (15) as shown in
FIGURE 10.

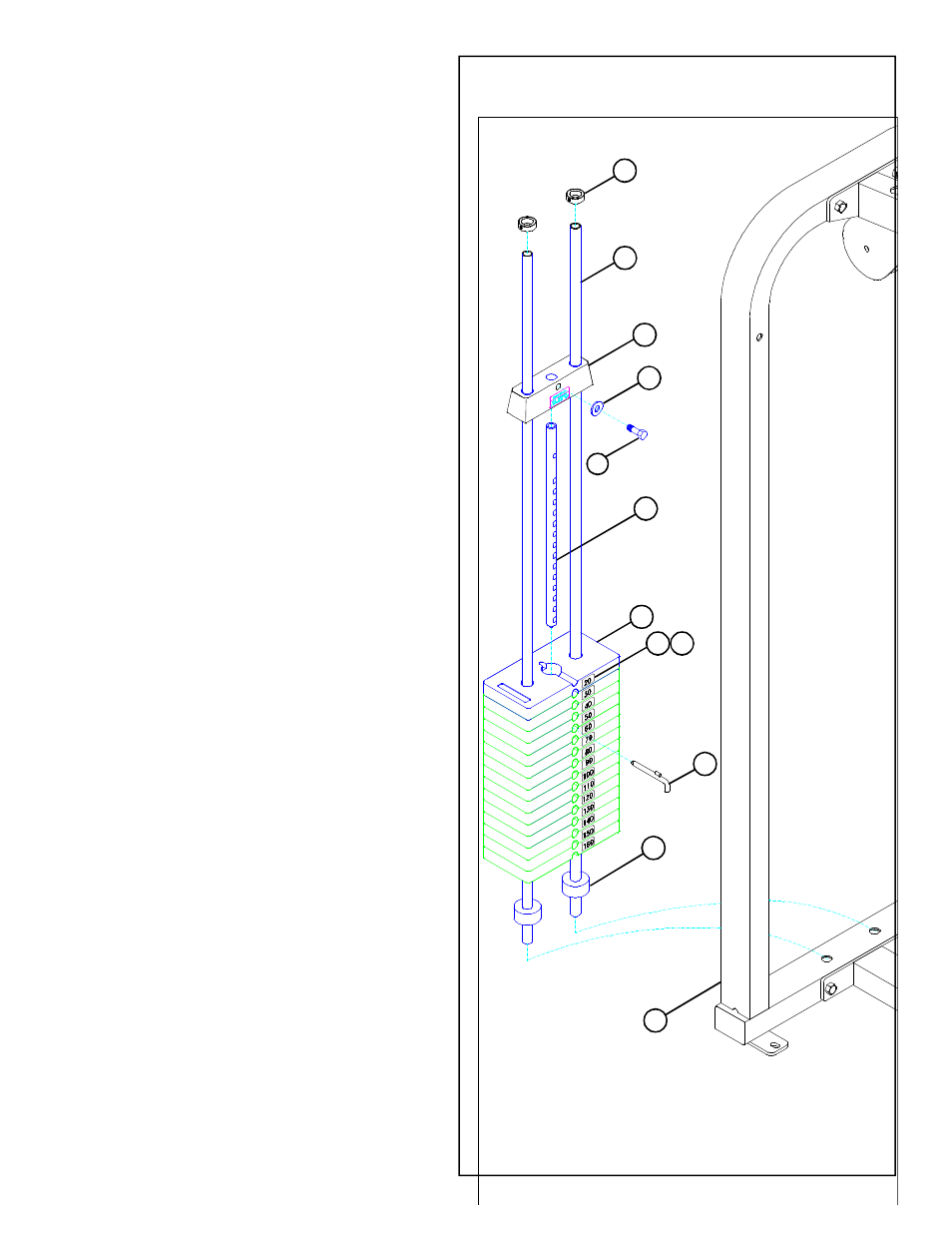

FIGURE 10
20 3/8 X 1-1/4”
3
36
39 38
35
32
25
33
15
31
34
• Insert the SELECTOR PIN (34) into the
WEIGHT STACK as shown.
