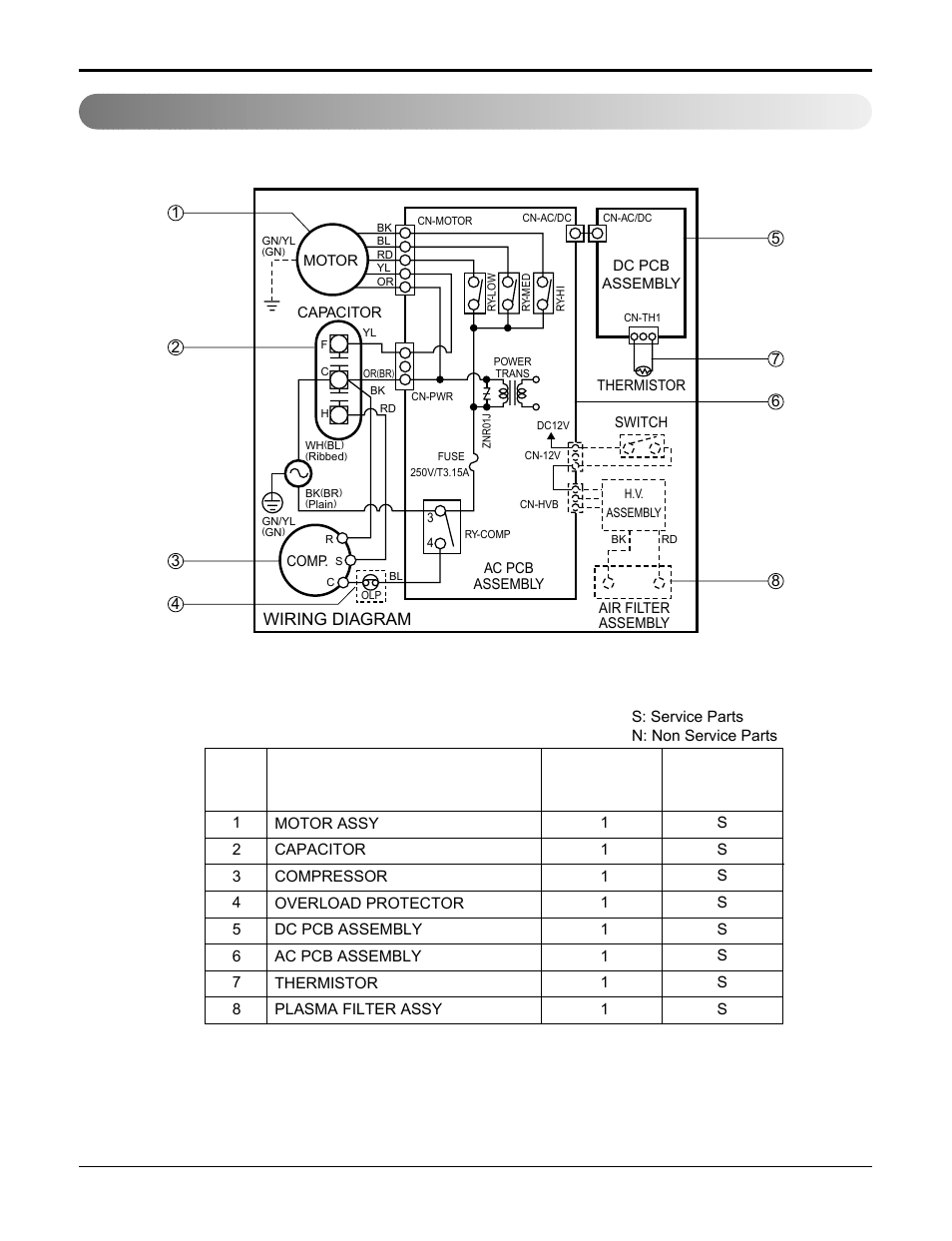

Wiring diagram, Service manual 21 schematic diagram – LG HB8004R User Manual
Page 21
Text mode
Original mode
Wiring diagram, Service manual 21 schematic diagram | LG HB8004R User Manual | Page 21 / 40
