7. Adjust the End Condition Parameters (Optional)
The end condition parameters can be adjusted to define how the welding machine will respond at
the end of a weld application.

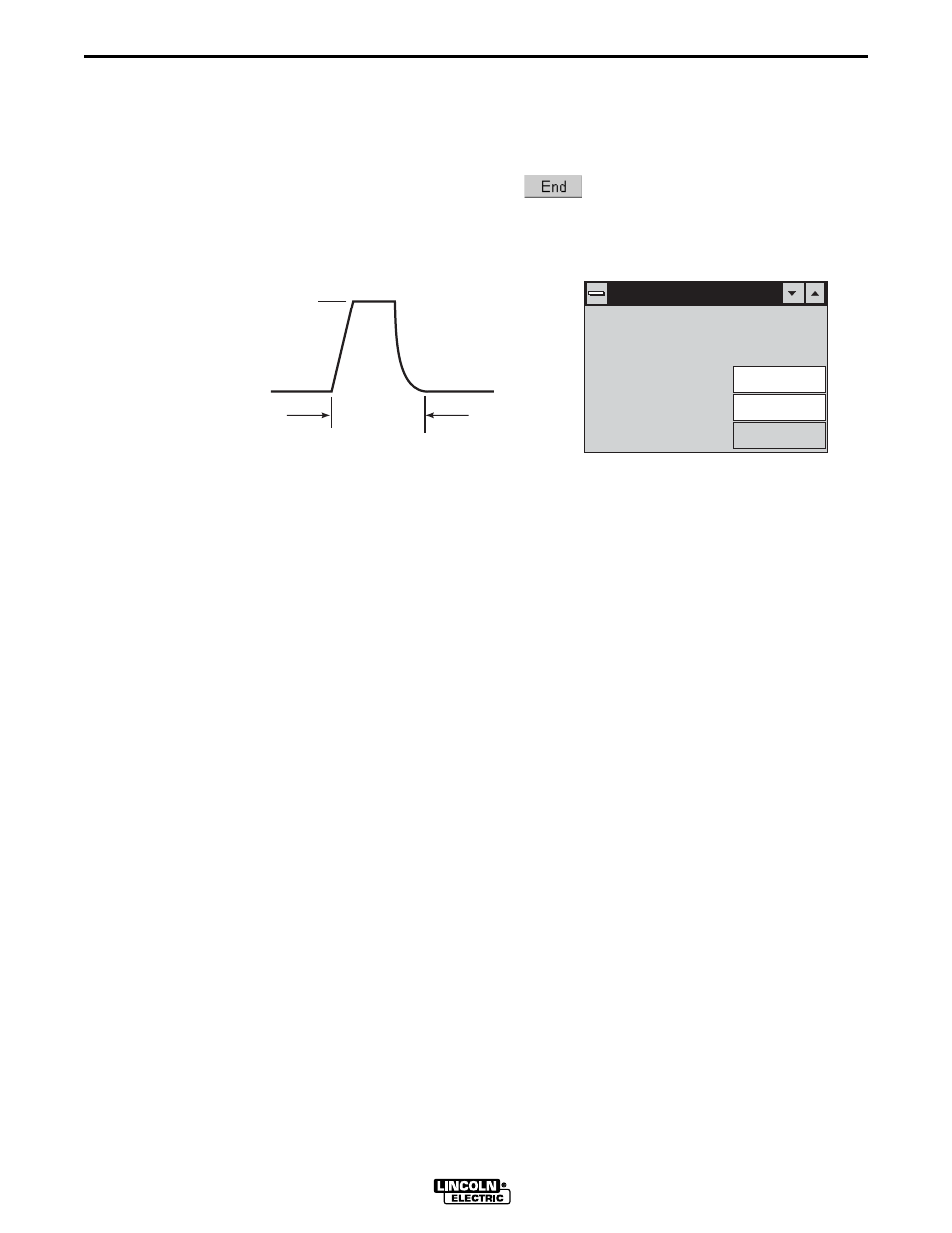

To view the end condition window, click on the button on the Waveform Editor screen.
Adjust the end condition parameters to accommodate your welding application and per the
following parameter descriptions.
A-12 Appendix A PULSE WAVE SHAPING PRINCIPLES
WAVE DESIGNER
27850037
End Conditioning
End Conditioning
For Wire Feed Speed
End Amp
End Time
Amp * Time
50
550.0
2.5
1375.0
END AMPS
END
TIME
End amps: Adjust this parameter to establish the peak amperage of the wire conditioning pulse.
The wire conditioning pulse knocks the last weld droplet from the electrode at the end of a weld.
End time: Adjust this parameter to set the duration of the ending pulse.
Amp • Time: This parameter indicates the power of the ending pulse.
