Section 3 3-11
SOFTWARE OPERATION
WAVE DESIGNER
3.3 WAVE DESIGN PROCESS

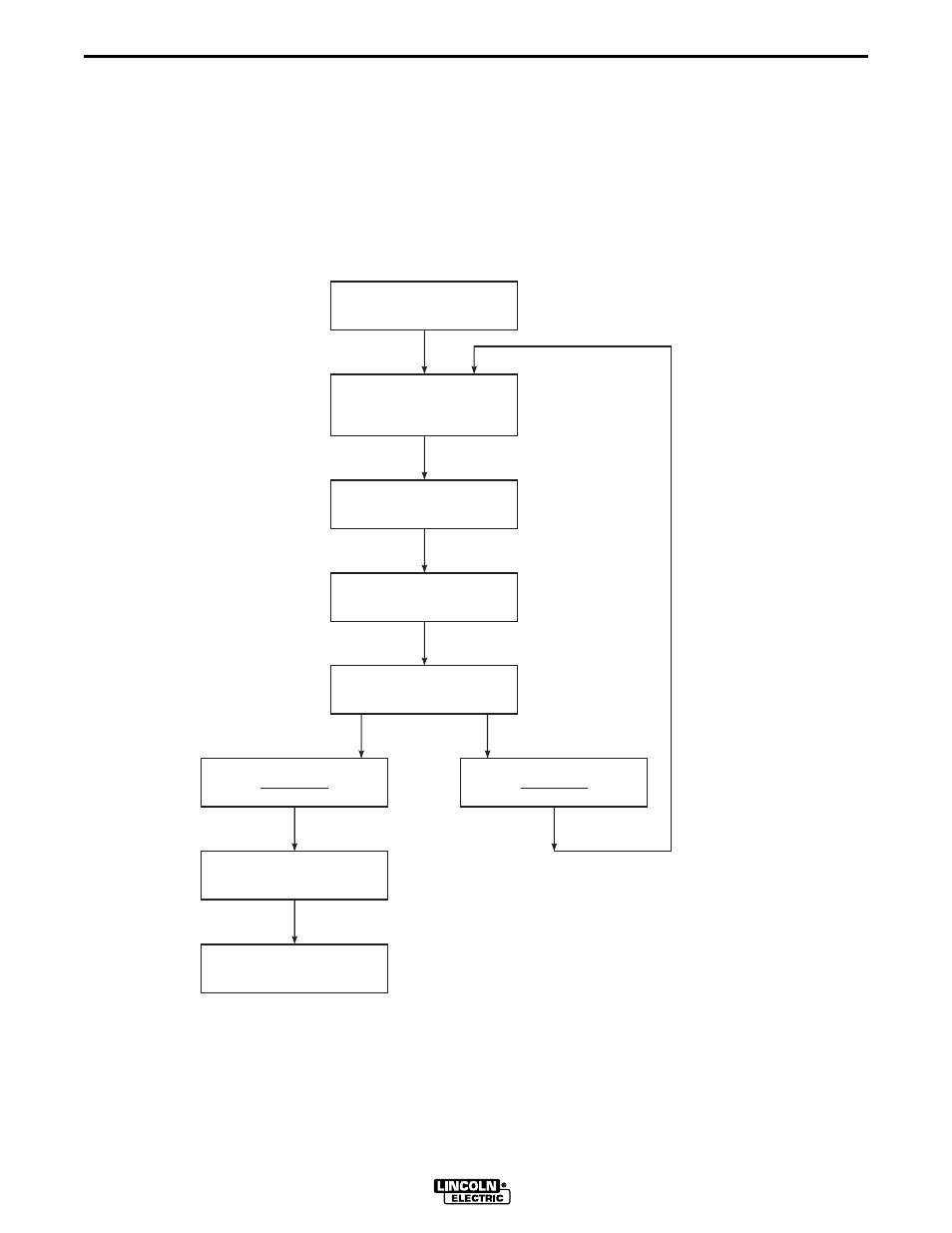

The wave design process is a series of operations that allows you to quickly modify a standard
waveform to fit your specific welding application. The following process flowchart applies to a
pulse waveform, but is similar to the process used to modify STT and other waveforms.
Examples of each process step can be found in the listed reference paragraphs.
27850021
Set NO-ADAPT
Set ADAPT
Save File to Disk; Develop Next Workpoint
A-4.2 Step 1
A-4.1
A-4.2 Step 2
A-4.2 Steps 3 & 4
A-4.2 Steps 5, 6, & 7
A-4.2 Step 8
Section 3, paragraph 3.4
Select a Waveform
from Memory
Mode = OFF
Select Workpoint
Set Powerwave WFS
Set Trim = 1.00
Set Arc Control = OFF
Adjust Pulse
Variables at
Fixed Stickout
Adjust Peak Volts
and
Adaptive Type
Adjust Optional
Variables
(if needed)
Save File to Disk
GO FIGURE GO FIGURE
Download File to Welding
Machine Memory
PROCESS FLOW: REFERENCE
PARAGRAPH:
(SEE APPENDIX A)
