PC2000/PC100 Terminal User’s Guide
22
Omni:Chron II
When connecting an Omni:Chron II using the SWIFT-485+, you will need a
cable with a DB9 female connector and the other end bare. The DB9
connector plugs into the R485 port at the OMC2, while the bare end of the
wire coming from DB9 pin #1 makes the positive connection to the
SWIFT-485+, and the bare end of the wire coming from DB9 pin #2 makes
the negative connection to the SWIFT-485+. Omni:Chron II’s can only
communicate at a rate of 9600 baud.

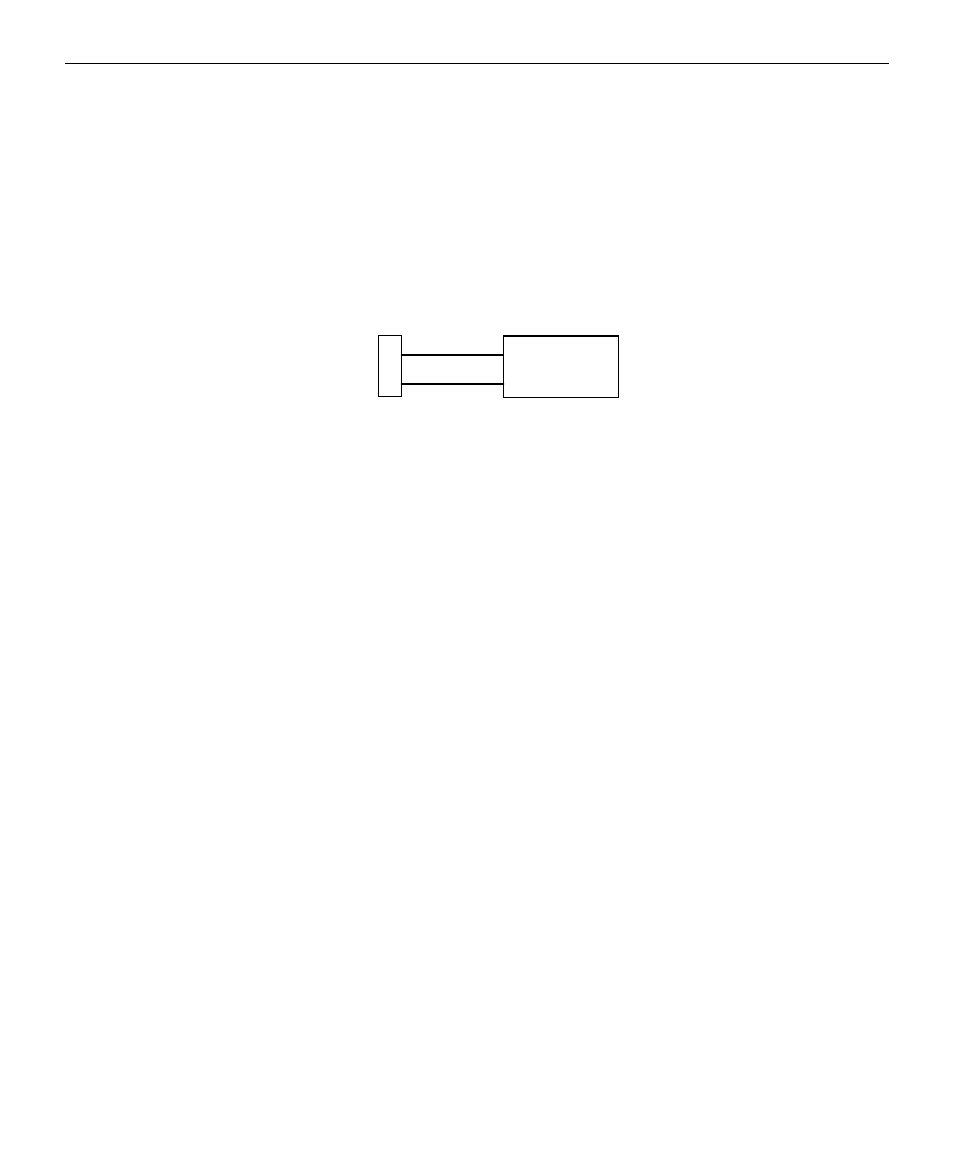

OMC2 SWIFT-485+
DB9 Pin #1
DB9 Pin #2
+
-
