Page 5

background image

5

PARTS LIST

PART #

6809908

6810108

6812402

6692601

6467001

3102910

3102502

3102801

KEY

1

2

3

4

5

6

7

8

QTY

2

1

2

2

2

10

10

10

DESCRIPTION

UPRIGHT FRAME

CROSS BRACE

SMART RACK

3 X 2” END CAP

2” SQ. COVER CAP

1/2 X 3” BOLT

1/2” WASHER

1/2” LOCK NUT

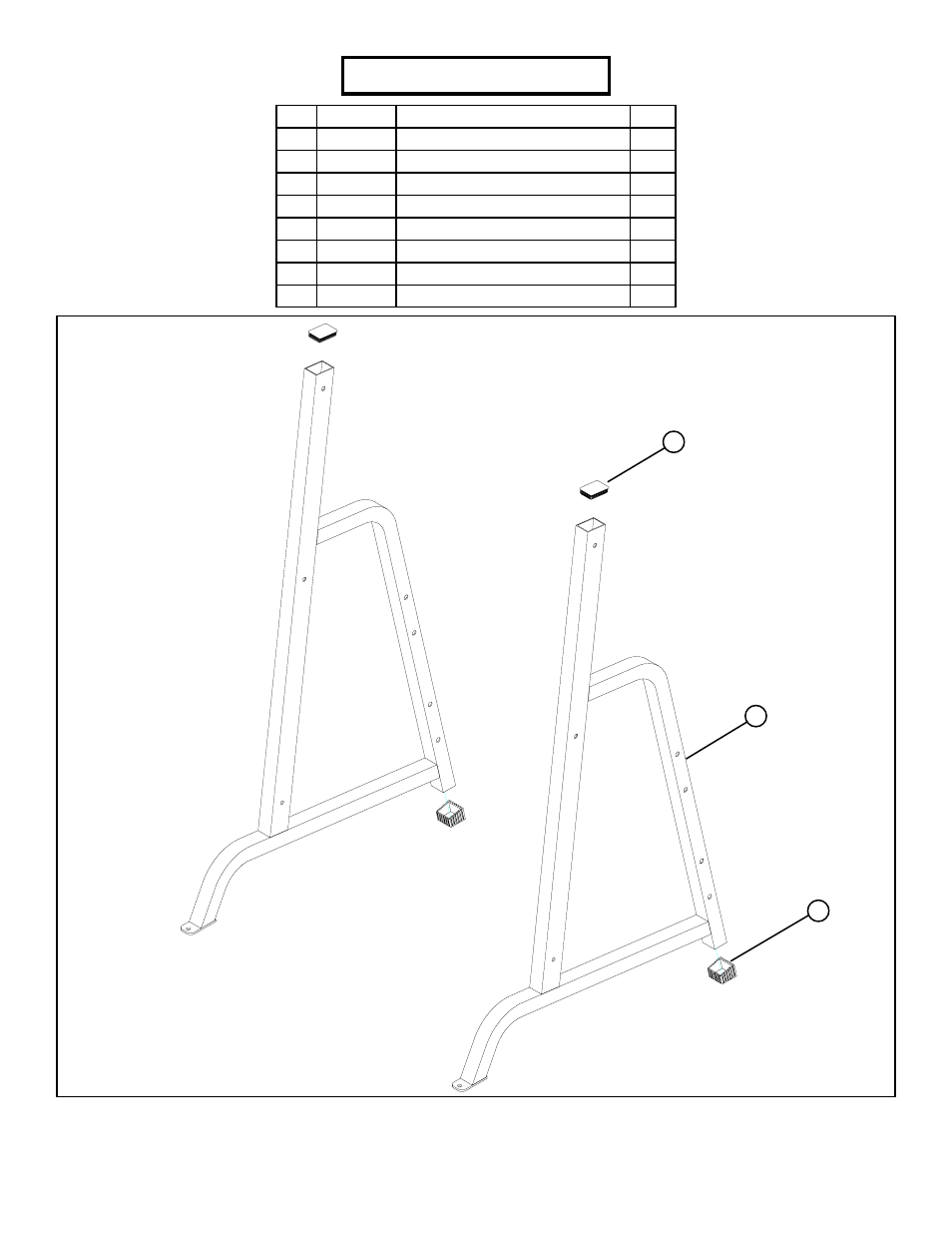

FIGURE 1

STEP 1:

• Insert two 3 X 2” END CAPS (4) in the top of the UPRIGHT FRAMES (1) as shown in FIGURE 1.

5

1

4

• Insert two 2 SQ. COVER CAPS (5) on the bottom of the UPRIGHT FRAMES (1) as shown in FIGURE 1
