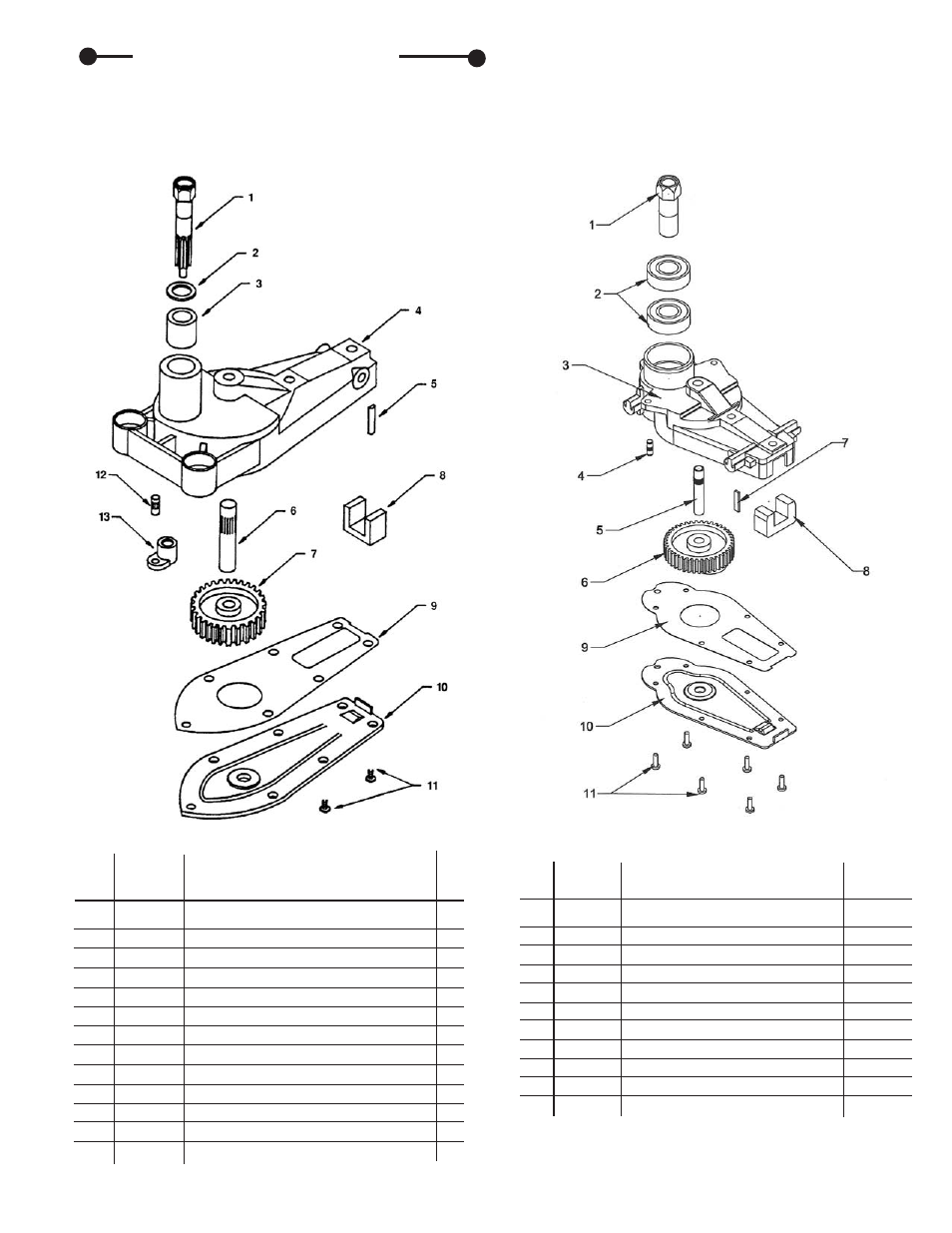

Parts Explosions
B.
Gear Housing Assembly -
Double Edge Hedge Trimmer
Key
No. Part No. Description
Qty.
1
320004
Pinion
1
2
320102
Bearing
2
3
320001
Gear Housing
1
4
16-80
Cover Plate Pin
1
5
16-61
Eccentric Shaft
1
6
320005
Eccentric Gear
1
7
D16-56F
Wear Plate
1
8
314
Felt
1
9
320100
Gasket
1
10
320101
Cover Plate
1
11
16-81-1
6-32 x 5/16 Screw
6
A.
Gear Housing Assembly -
Single Edge Hedge Trimmer
Key
No.
Part No.
Description
Qty.
1
371
Pinion
1
2
375
Washer
1
3
374
Upper Bushing
1
4
300000
Gear Hsg Assem. (inc. Key No. 3, 6, 12)
1
5
D16-56F
Wear Plate
1
6
16-61
Eccentric Shaft
1
7
372
Eccentric Gear
1
8
314
Felt
1
9
319
Gasket
1
10
316
Cover Plate
1
11
16-81
6-32 x 5/16 Screw Pack
1
12
16-80
Cover Plate Pin
1
13
373
Lower Bushing
1
