The back panel, The side panel – Linksys SR2024C User Manual
Page 9
5
Chapter 2: Getting to Know the Switch
The Back Panel
16-Port or 24-Port 10/100/1000 Gigabit Switch
The Back Panel
The power port is located on the back panel of the Switch.
Power
The Power port is where you will connect the included AC power cable.
The Side Panel
Security Slot
The Security Slot is where you can attach a lock to guard against theft.

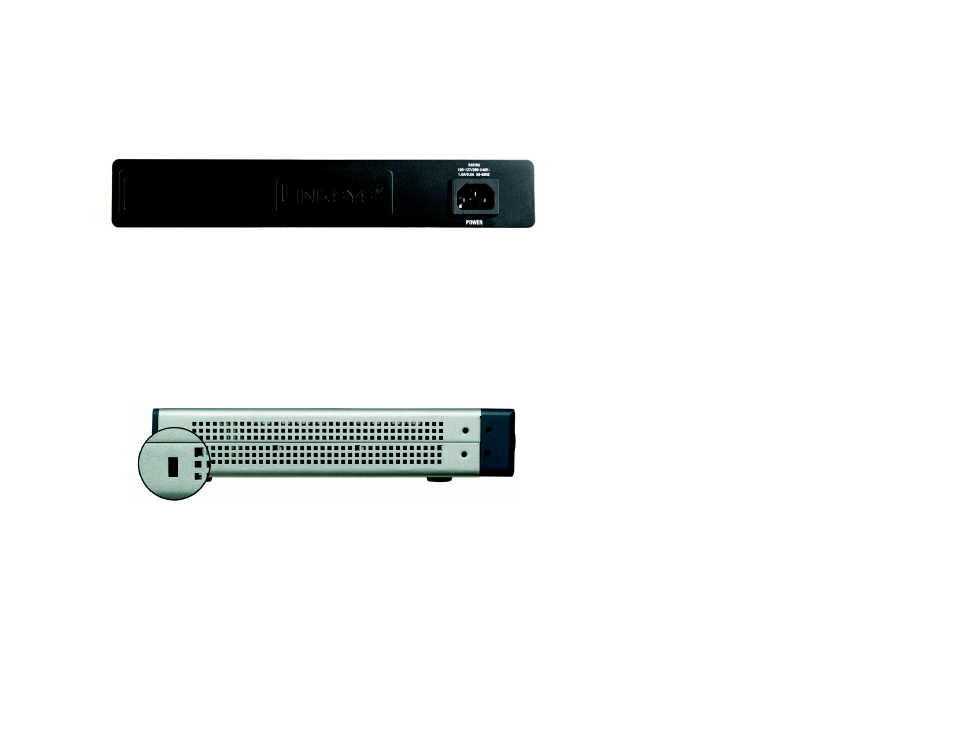

Figure 2-3: Back Panel
Figure 2-4: Left Side Panel
