WFI1051 / EWTN 2956 4
P
LANNING
I
NFORMATION

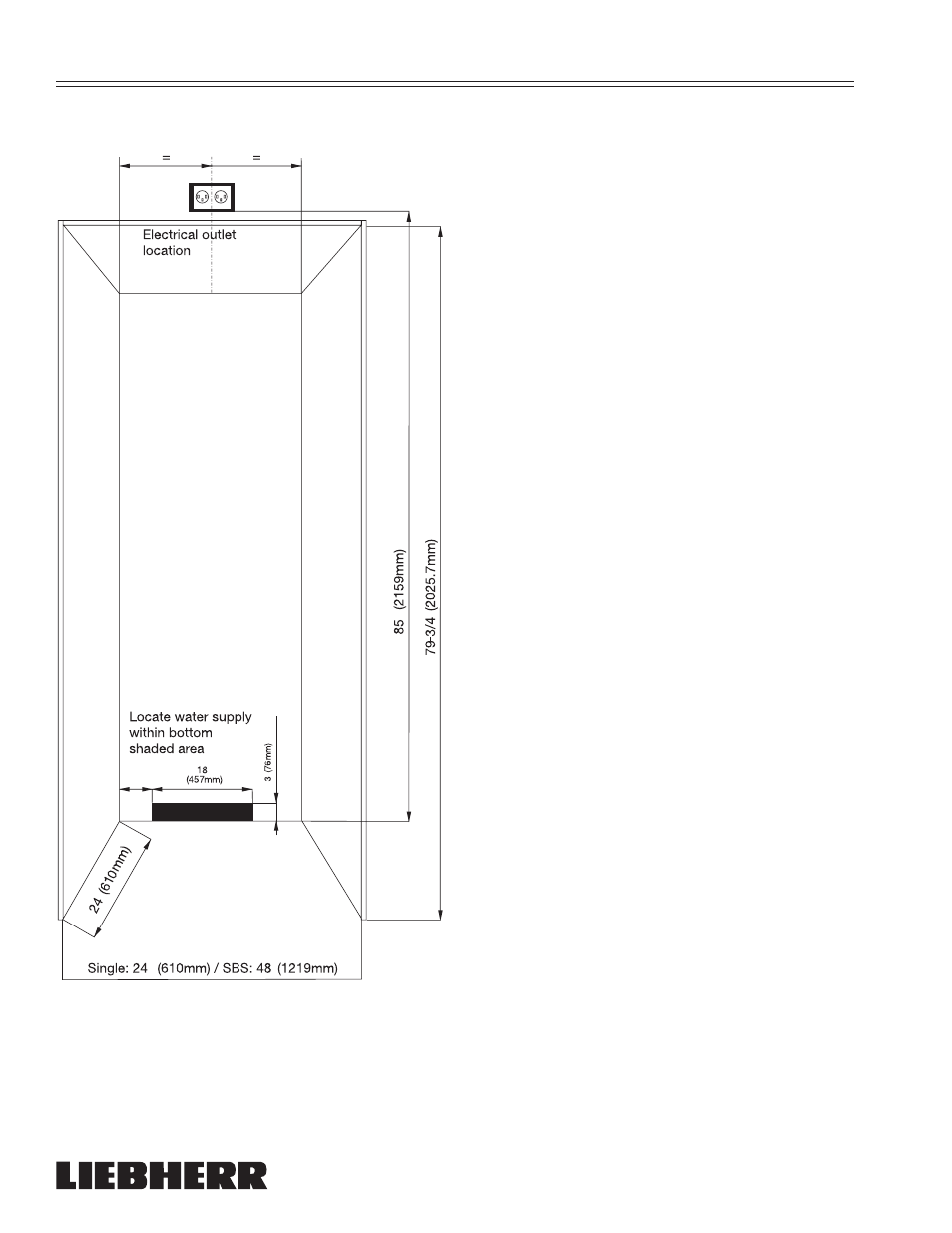

Cabinet Opening Dimensions - Figure 1
3"
(76mm)
" "
" "
"
" "
Allow units to open a minimum of 90° to prevent
problems removing drawers. With the door open-
ing 90°, you may have to move drawers slightly to
clear the door interior.
Refer to the minimum door clearances in the Pre-
Installation Specifications chart.
• Allow for a minimum 3-3/4" (95 mm) filler, for
corner installations, so the door can open to 90°.
If you’re using raised panels, consider using a
wider filler.
IMPORTANT
Refer to the full scale illustrations at the end of
this section for specifics on door openings and
filler size alternatives.
Figure 1
