2 ZXT & ZT Mower Jack Assembly Instructions Manual No. 357-259M 03/25/09
Land Pride
■
Mower Jack Assembly
Refer to Figure 2:
1. Remove existing 3/8" x 3/4" bolt (A).
2. Attach jack retainer (#1) to mower frame with
3/8"-16 x 1 3/4" GR8 hex head cap screw (#2).
Torque cap screw to 31 ft-lbs.
3. Attach screw jack (#4) to lift bracket (#3) with
5/8" clevis pin (#5) and hair pin cotter (#6).
Mower Jack Operating Instructions
!
WARNING
Make certain the engine cannot be accidentally started. Shut
engine off and remove ignition switch key for maximum safety.
Repairs or maintenance requiring engine power should be
performed by trained personnel only.
!
WARNING
Exercise caution when working under the deck as the mower
blades are extremely sharp. Wearing gloves is advisable when
working around or with blades.
!
DANGER
For your safety and safety of others, a jacked mower must be
supported properly with jack stands before working under and
around it. Also the wheels on the ground must be chocked on
both sides to prevent the mower from rolling forward or
backward.
Refer to Figure 2:
1. Park unit on a flat surface and make sure blade
engagement switch is in the down (OFF) position.
2. Spread both control levers fully apart. Stop engine
and remove ignition key.
3. Chock back and front of rear wheels to prevent
mower from rolling forward or backward.
4. Mount lift bracket (#3) onto jack retainer (#1). Make
sure flange of jack retainer is fully through the lift
bracket slot and that the lift bracket cannot be pulled
off the jack retainer when raised up.
5. Turn hand crank of screw jack to raise lift bracket up
until lifting flange is against mower axle.
6. Continue jacking front of mower up until mower is
slightly higher than what is required for the work
intended.
7. Place jack stands under two to three well spaced
support points at the deck edge.
8. Lower mower frame until all weight is off the jack.
When properly lowered, the deck will be resting on
the jack stands and the mower frame will be resting
on the deck.
9. After completing maintenance, jack mower up until
deck weight is off the jack stands.
10. Remove jack stands and then lower mower weight
onto its front wheels.
11. Remove lift bracket and screw jack from jack retainer.
Store bracket with jack in a convenient location for
future reuse.
12. Remove wheel chocks.

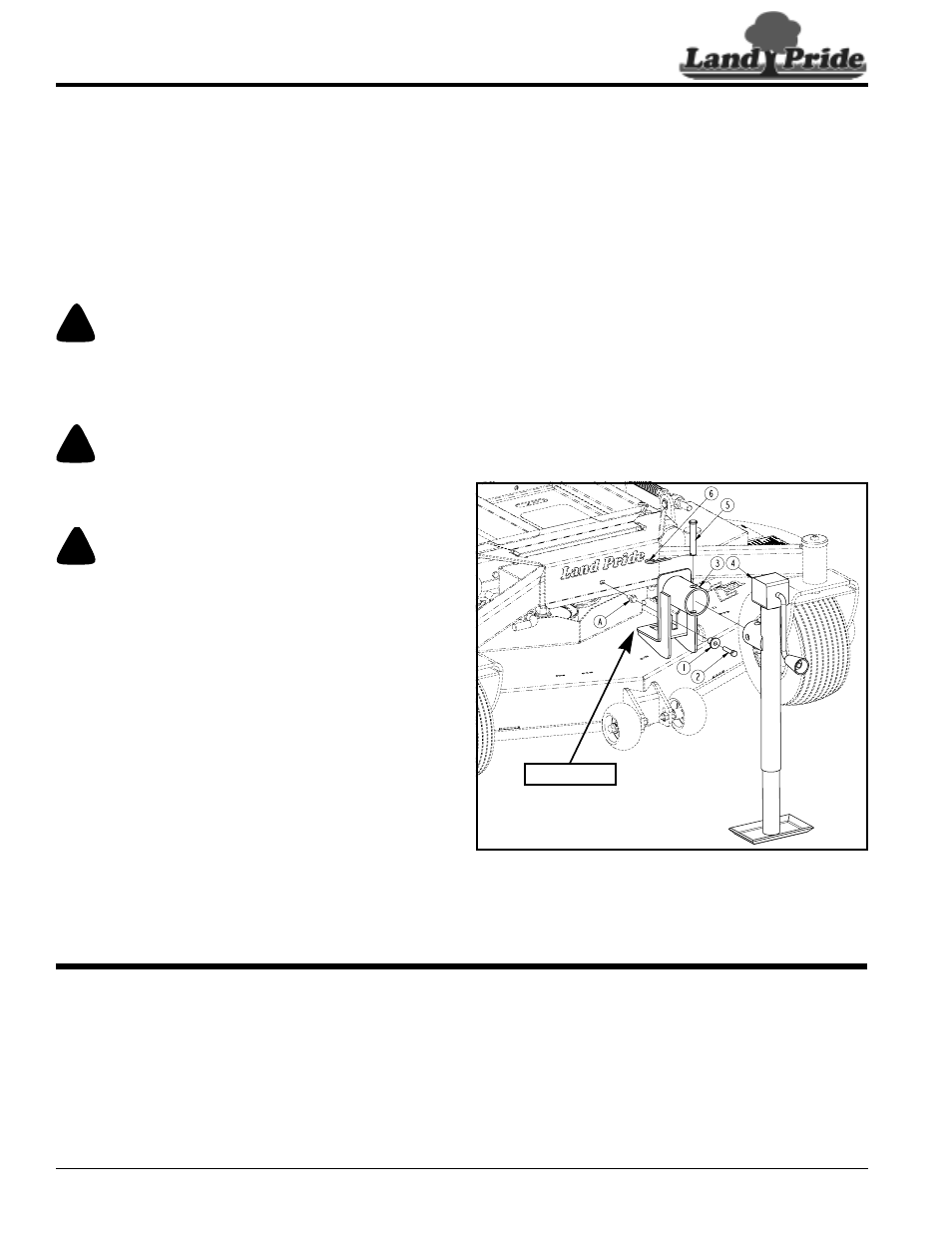

Mower Jack Assembly (ZT Series Mower Shown)
Figure 2
25810
Lifting Flange
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Refer to Figure 2:
1 357-503D JACK RETAINER 1
2 802-297C HEX HEAD CAP SCREW 3/8"-16 x 1 3/4" GR8 1
3 357-208H LIFT BRACKET 1
4 890-245C SCREW JACK 2000# 15-30 1
5 805-334C PIN CLEVIS 5/8" x 3 1/2" PLT 1
6 805-032C PIN HAIR COTTER .148 WIRE 1
Kit No. 357-209A Mower Jack, ZXT & ZT Series
Item Part No. Part Description Qty
