F-1 DIAGRAMS F-1
BIG RED™ 600
A
M22253
ELECTRIC
SHOCK
CAN KILL
WARNING
Do not operate with covers removed
Disconnect input power before servicing
Do not touch electrically live parts
Only qualified persons should install,
use or service this equipment
1. TURN OFF THE ENGINE AND DISCONNECT THE NEGATIVE BATTERY CABLE.
2. REMOVE THE SCREWS THAT SECURE THE LOWER CONTROL PANEL AND
OPEN THE PANEL.
3. WHILE HOLDING THE RCD MOUNTING BRACKET REMOVE THE TWO SCREWS
SECURING THE COVER PLATE AND RCD MOUNTING BRACKET. SET THE RCD
MOUNTING BRACKET AND SCREWS ASIDE AND DISCARD COVER PLATE.
(SEE FIGURE 1).

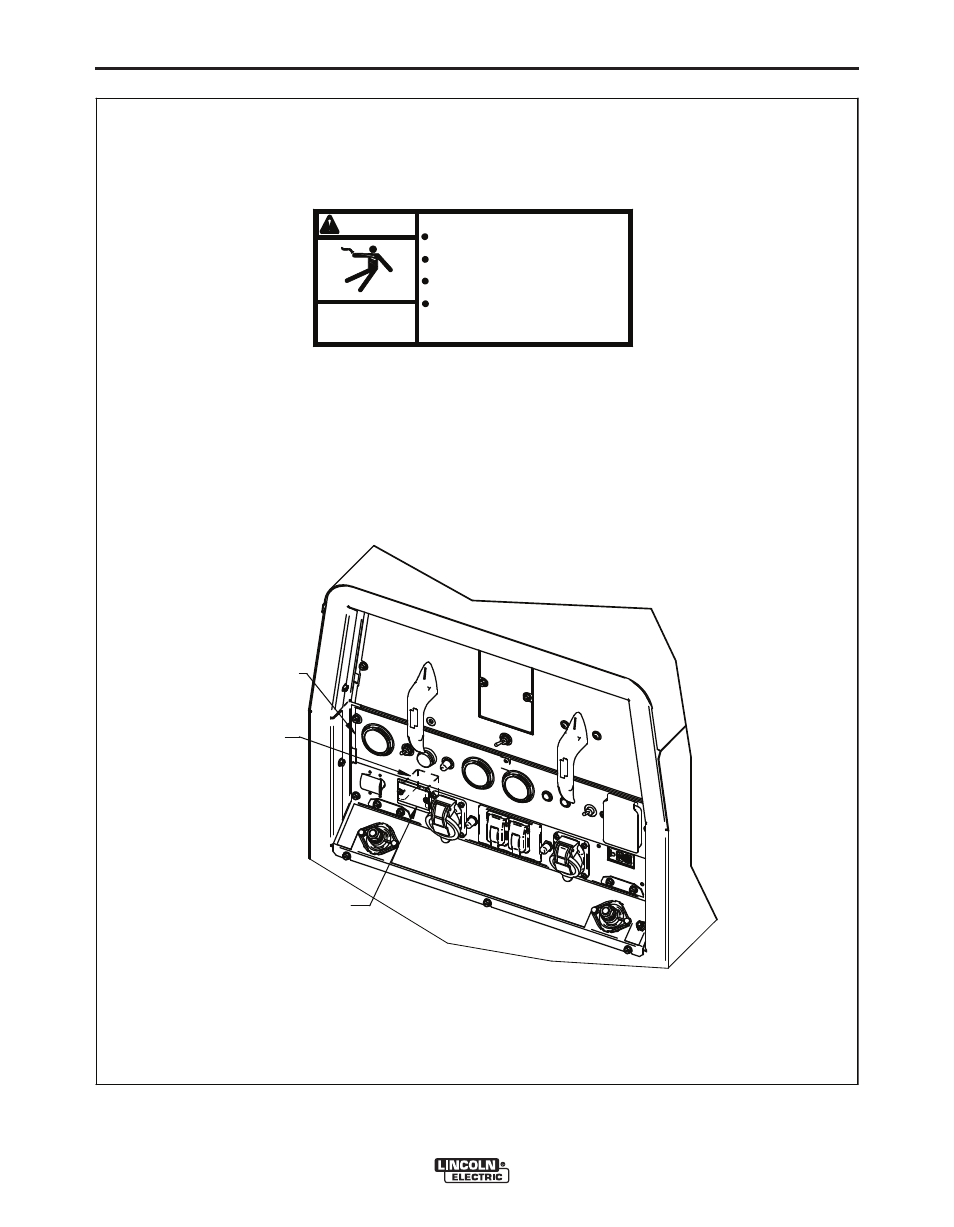

INSTRUCTIONS FOR INSTALLING A 2-POLE RESIDUAL CURRENT DEVICE
TO PROTECT THE 240V SINGLE PHASE RECEPTACLE
LOWER CONTROL
PANEL
FIGURE 1
RCD MOUNTING
BRACKET
COVER PLATE
.
