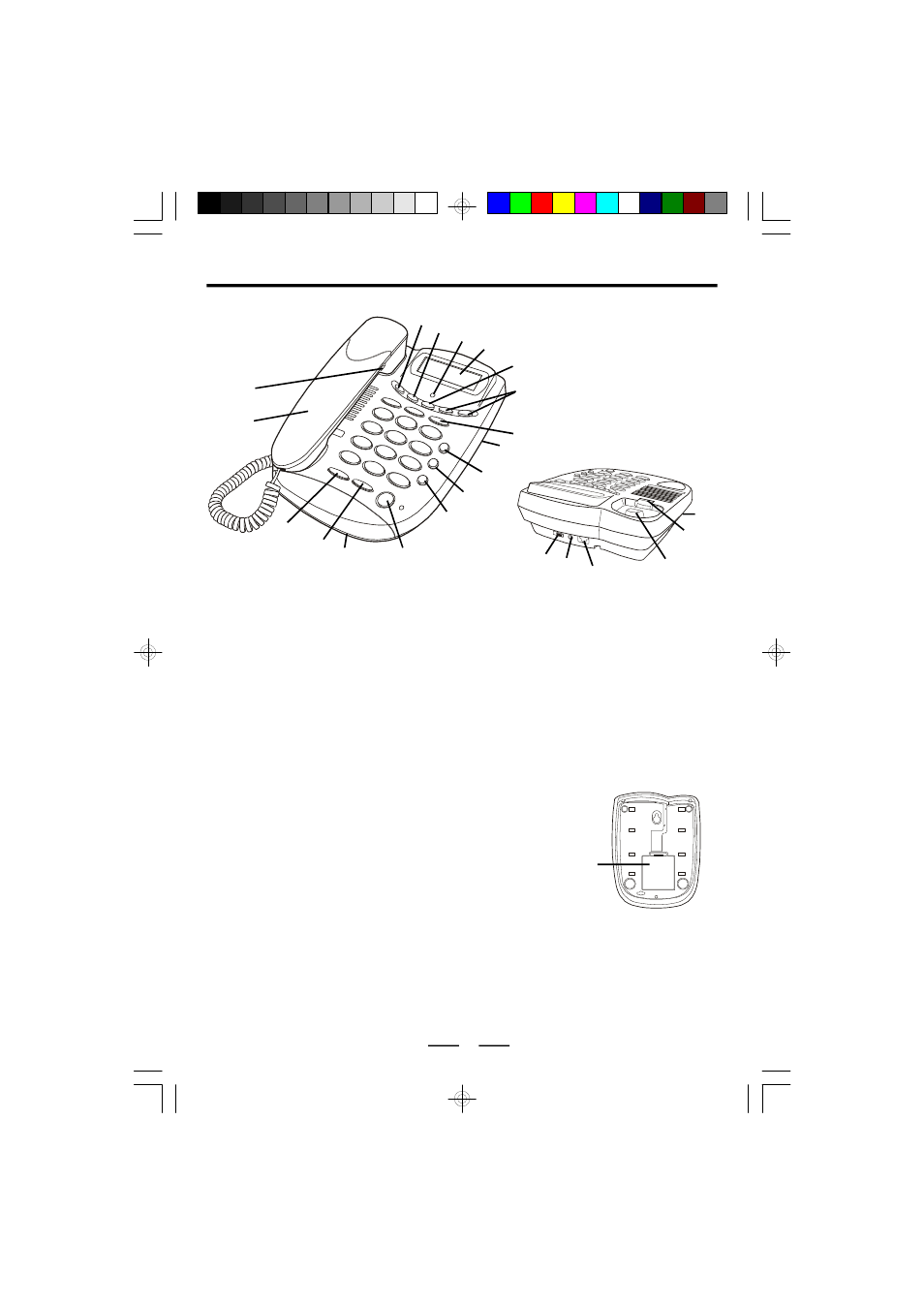

LOCATION OF CONTROLS
1. COMFORTABLE ROUNDED HANDSET - for comfortable use even during long calls.
2. HANDSET VOLUME CONTROL - adjusts the volume of handset receiver.
3. MENU BUTTON - used for setting up the telephone.
4. DIAL BUTTON - dials the number currently displayed.
5. NEW CALL INDICATOR - flashes when new calls have come in.
6. CALLER ID DISPLAY - shows the caller’s name, number, and calling time & date (and more).
7. DELETE BUTTON - erases an individual record or all records from the Caller ID Memory, also used
to exit setup.
8. UP/DOWN BUTTONS - review all calls received.
9. ONE-TOUCH SPEED DIAL BUTTONS - allow you to store numbers and quickly dial them from memory.
10. SPEAKERPHONE VOLUME CONTROL - adjusts the volume of the speaker.
11. STORE (MEMORY) BUTTON - used for storing numbers into the one-touch or two-touch Speed Dial memories.
12. AUTO (MEMORY) BUTTON - allows you to store & dial numbers from 10 two-touch memory locations.
13. MUTE BUTTON - allows you to hear the other party without them hearing you (while pressed).
14. SPEAKERPHONE - allows you to make or receive a call without lifting the handset.
15. SPEAKERPHONE MICROPHONE - for speakerphone use.
4
15
18
17
16
24
21 19
16. REDIAL/PAUSE BUTTON - get a new dial tone, then press this
button to dial the last dialed number (also if you need a pause for PABX).
17. FLASH BUTTON - press to switch calls for call waiting or to get
a new dial tone.
18. RINGER HI/LOW/OFF SWITCH - adjusts the volume of the ringer or
turns off ringer for undisturbed privacy.
19. AC ADAPTOR JACK - allows you to use home AC power supply
(AC adaptor not included).
20. LINE CORD JACK - insert one end of the telephone line cord here
when connecting the telephone.
4 5
1
6
7
8
11
14
13
10
2
12
9
BACK OF THE PHONE
22
23
21. HOOK SWITCH - press down to release the line, hold it down and then release it to get a new dial tone
or for call waiting.
22. HANDSET CLIP - holds the Handset in place when the telephone is mounted on a wall.
23. COILED CORD JACK - Insert COILED CORD from HANDSET here.
24. BATTERY COMPARTMENT - place 4 size “AA” alkaline batteries inside according to the polarities as
shown inside the battery compartment.
