DESK USE / WALL MOUNTING

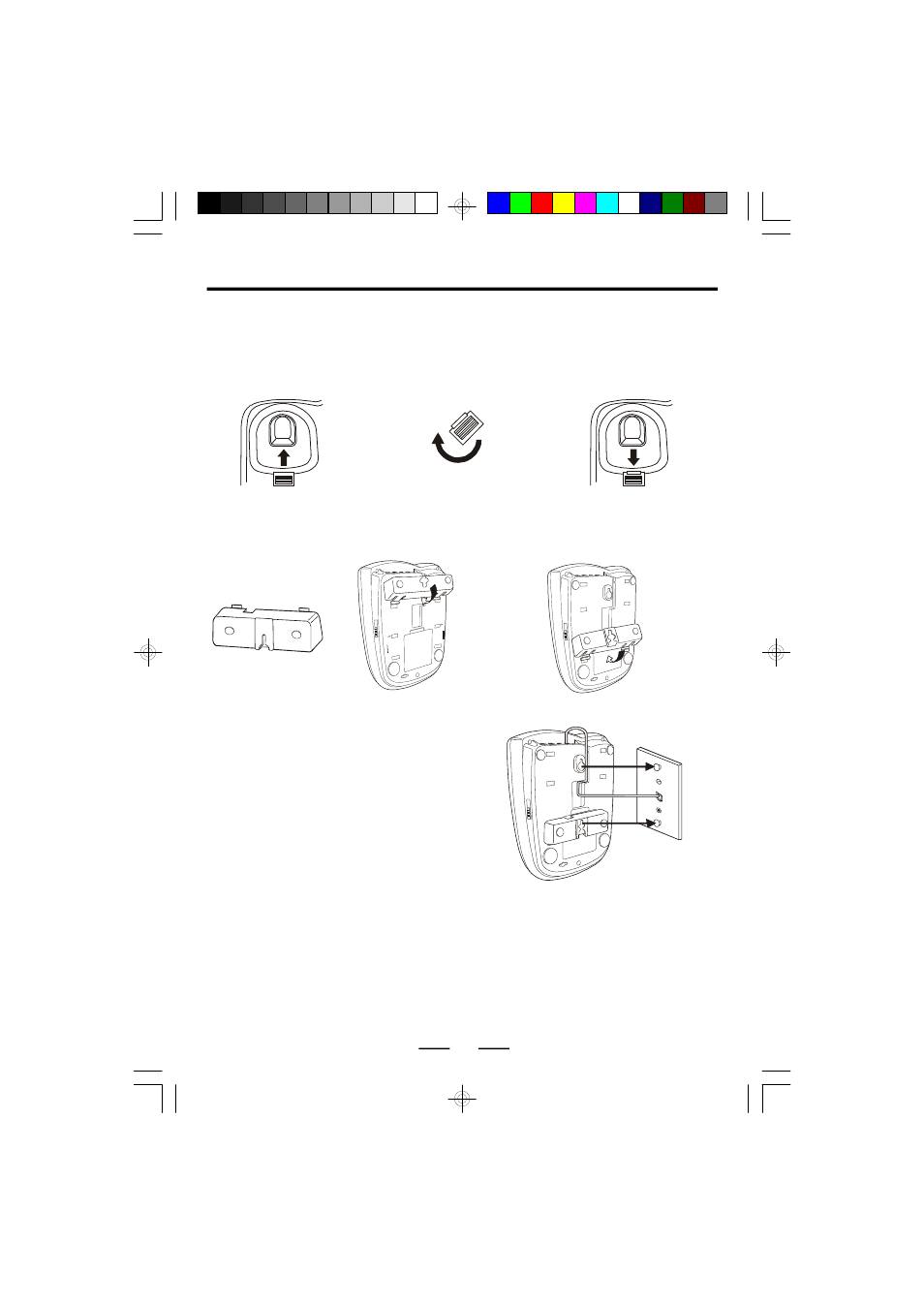

1. HANDSET CLIP - When the phone is mounted on the wall, the HANDSET CLIP must be
adjusted so it will hold the HANDSET.
A. SLIDE OUT B. REVERSE C. REPLACE INTO PHONE
FOR WALL USE,
PUT ADAPTOR
HERE
Note: For either desk use or wall mounting, you need to install the included adaptor.
If you do not have a modular wall phone plate installed, please consult with your phone
company or installer to get one, or see next page for installation without a wall plate.
2. Both to use as a desk phone and as a wall
phone, you must use the plastic (box shape)
WALL MOUNT ADAPTOR.
3. Use the SHORT STRAIGHT WALL CORD,
and plug one end into the rear of the
phone. Route the cord into the channel at
the phone back.
4. Plug the other end of the SHORT
STRAIGHT WALL CORD into the WALL
JACK.
5. Put the phone over the WALL PLATE, make sure both posts fit into slots on the back of
the phone. Then slide the phone down to lock the phone onto the WALL PLATE.
