Page 13
13
a
ANT. IN
Connect the antenna to this terminal.
b
S-VIDEO OUT
Connect to a S-Video Input on TV.
c
COMPONENT/PROGRESSIVE SCAN VIDEO
OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
d
AUDIO OUT (Left/Right)
Connect to a TV or other equipment with audio
inputs.
e
AV IN 1 (VIDEO IN /AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, VCR,
Camcorder).
f
OPTICAL (DIGITAL AUDIO OUT jack)
Connect to digital (optical) audio equipment.
g
Cooling fan
h
AC Power Cord
Plug into the power source.
i
RF. OUT
Connect to a TV with RF coaxial inputs.
j
COAXIAL (DIGITAL AUDIO OUT jack)
Connect to digital (coaxial) audio equipment.
k
AV OUT (VIDEO OUT / AUDIO OUT
(Left/Right))
Connect to a TV with video and audio inputs.
l HDMI OUT
HDMI output providing a high quality interface
for digital audio and video.
a
b c d
e
f
g
h
i
j
k
l

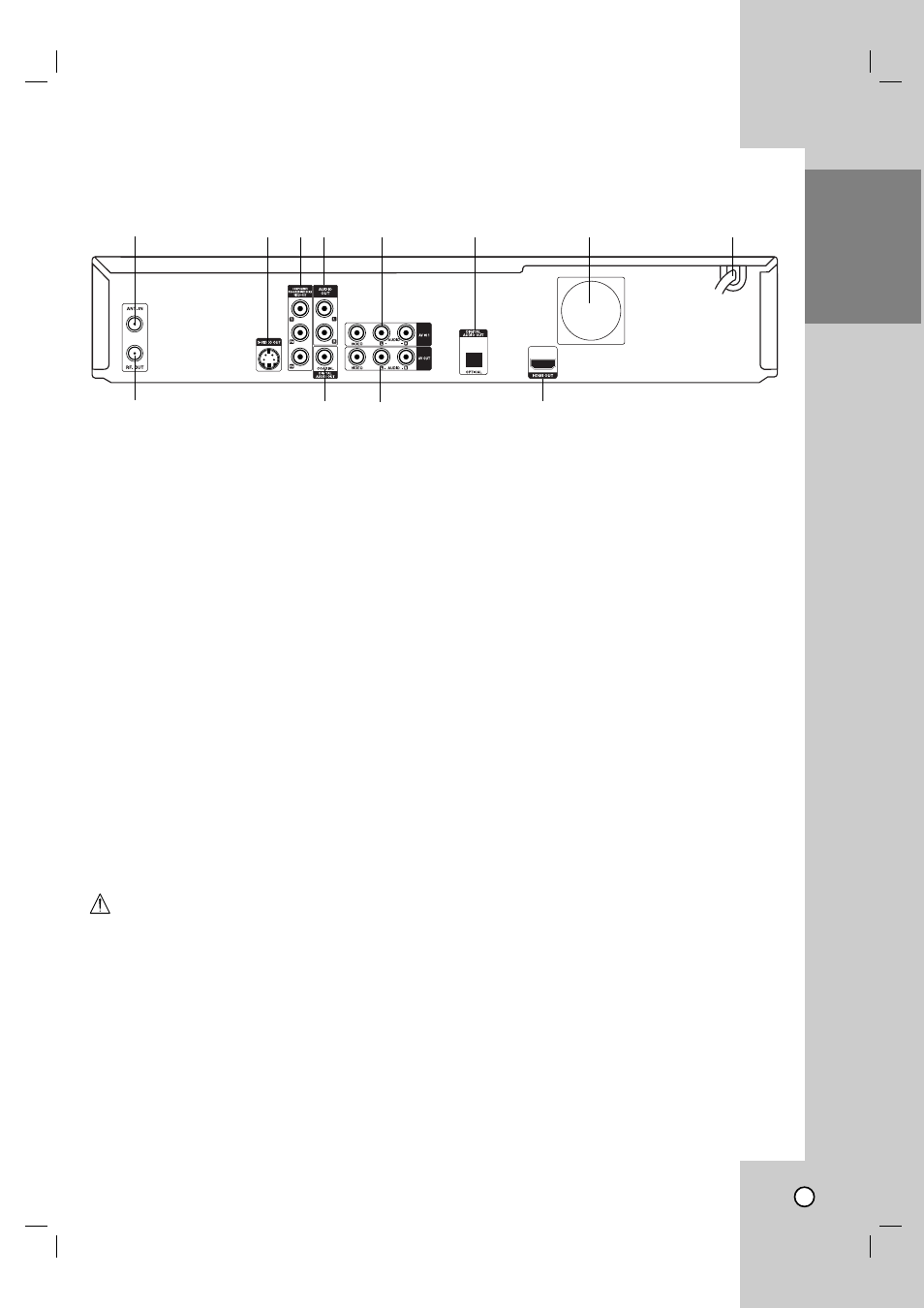

Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
INTRODUCTION
