Introduction

2.4 Ethernet Interface

The NET485 device contains the following LEDs:

• 10BaseT/100BaseTX (Bi-color, Left LED)

• Full/Half Duplex (Bi-color, Right LED)

LEFT
LED

POWER
LED

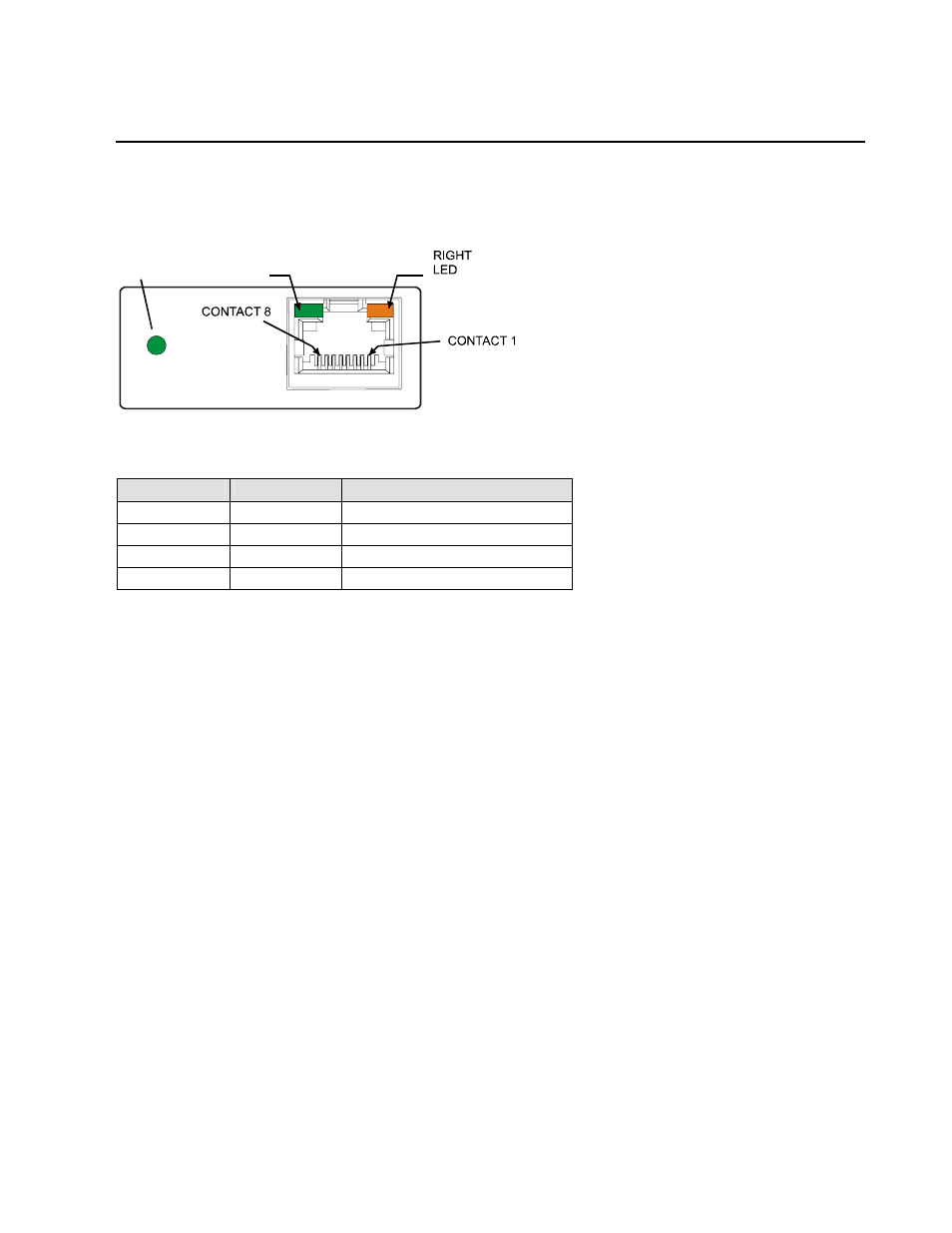

Figure 6 - Ethernet Jack

Table 2 - NET485 LED Functions

Left LED

Right LED

Meaning

Solid Amber

10BASE-T

Solid Green

100BASE-Tx

Blinking Amber

Half Duplex Activity

Blinking Green

Full Duplex Activity

NET485 User Guide

2-3
