Maintenance – Lincoln Electric MAGNUM 400 DUAL PROCEDURE IM646-A User Manual
Page 21

D-6
MAINTENANCE
D-6
MAGNUM® 400 DUAL PROCEDURE GUNS

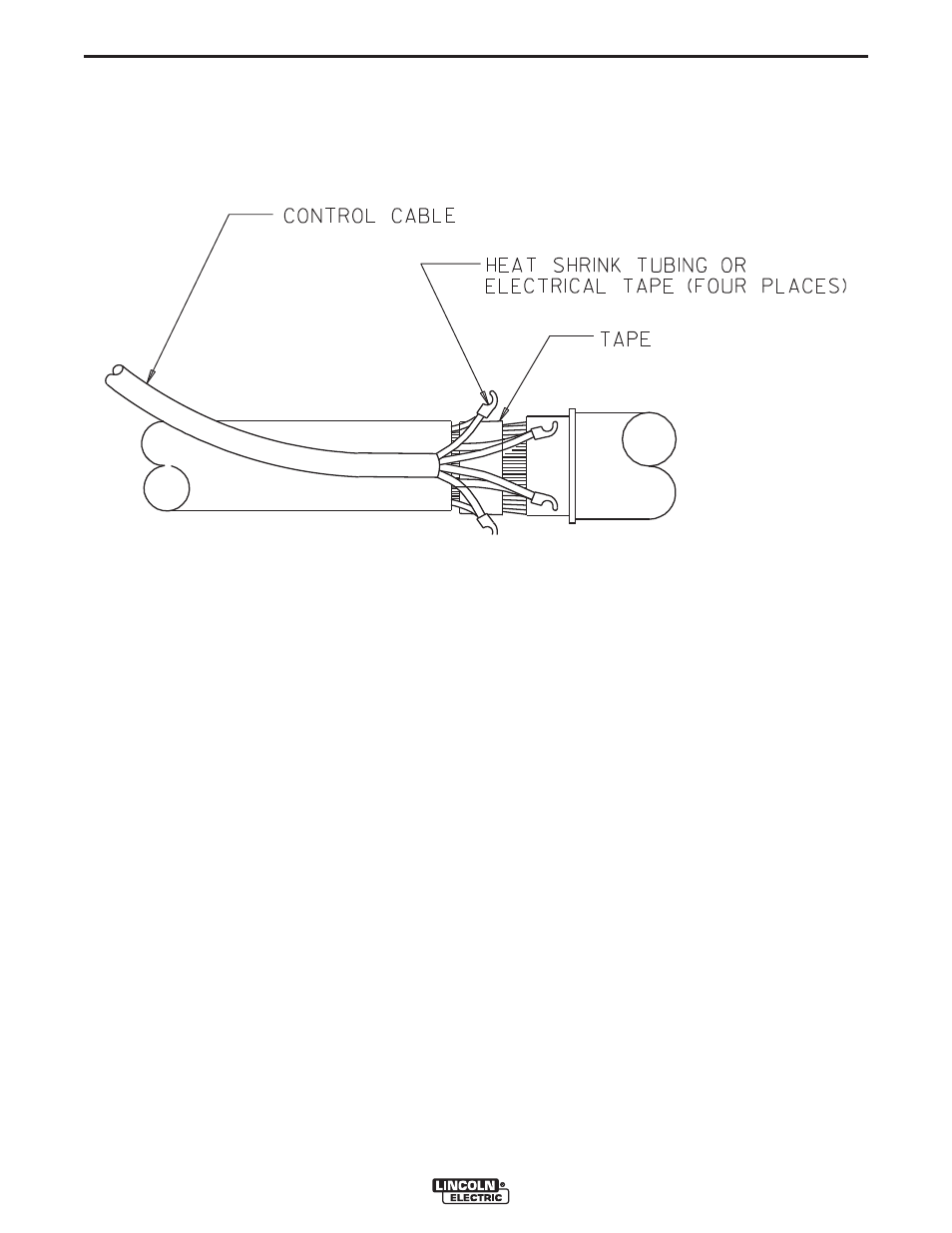

Figure E.8
For K1722:
The control cable leads should be connected to the
same color leads on the gun cable. Insulate each of
the solder connections with either heat shrink tubing
or electrical tape. Anchor leads as shown in Figure
E.8. Position the plastic strain relief such that the
tapered end is 4.68 (119 mm) from the incoming con-
nector (See Figure E.6). Lock into place with steel
housing. Plastic strain relief may overhang cable
jacket a maximum of .43" (11 mm).
h) Position cable boot and cable handle on cable.
Move the connector cover into position while
pulling control cables to take up the slack. Install
tailpiece and fasten to cable handle with cable han-
dle nut. (Refer to Figure E.6).
I) Replace the molded gas plug (or barbed fitting)
and feeder end connector. Install and trim liner per
previous instructions.
