A-4 INSTALLATION A-4
K466-5 INSTALLATION (For L-Tec Feeders
equipped with an L-Tec feeder connector assembly,
MIG 35, MIG 31A, 225...)
a. Remove brass cable connector (see Figure B.1)
from the kit and screw it onto the feeder end of the
gun cable. Tighten the connection with the wrench
provided.
b. Check that the molded gas plug fitting is sealing
the gas fitting hole in the side of the feeder end
handle.
c. The gun control cable provided is not used.
K466-7, and K466-10 Installation (Hobart Series
2000 Feeders, and Lincoln -10 Series Feeders)
a. Remove brass cable connector (see Figure B.1)
from the connector kit and screw it onto the feeder
end of the gun cable. Tighten the connection with
the wrench provided.
b. Check that the molded gas plug fitting is sealing
the gas fitting hole in the side of the feeder end
handle.
c. The gun control cable provided is not used.
MAGNUM® 400 DUAL PROCEDURE GUNS

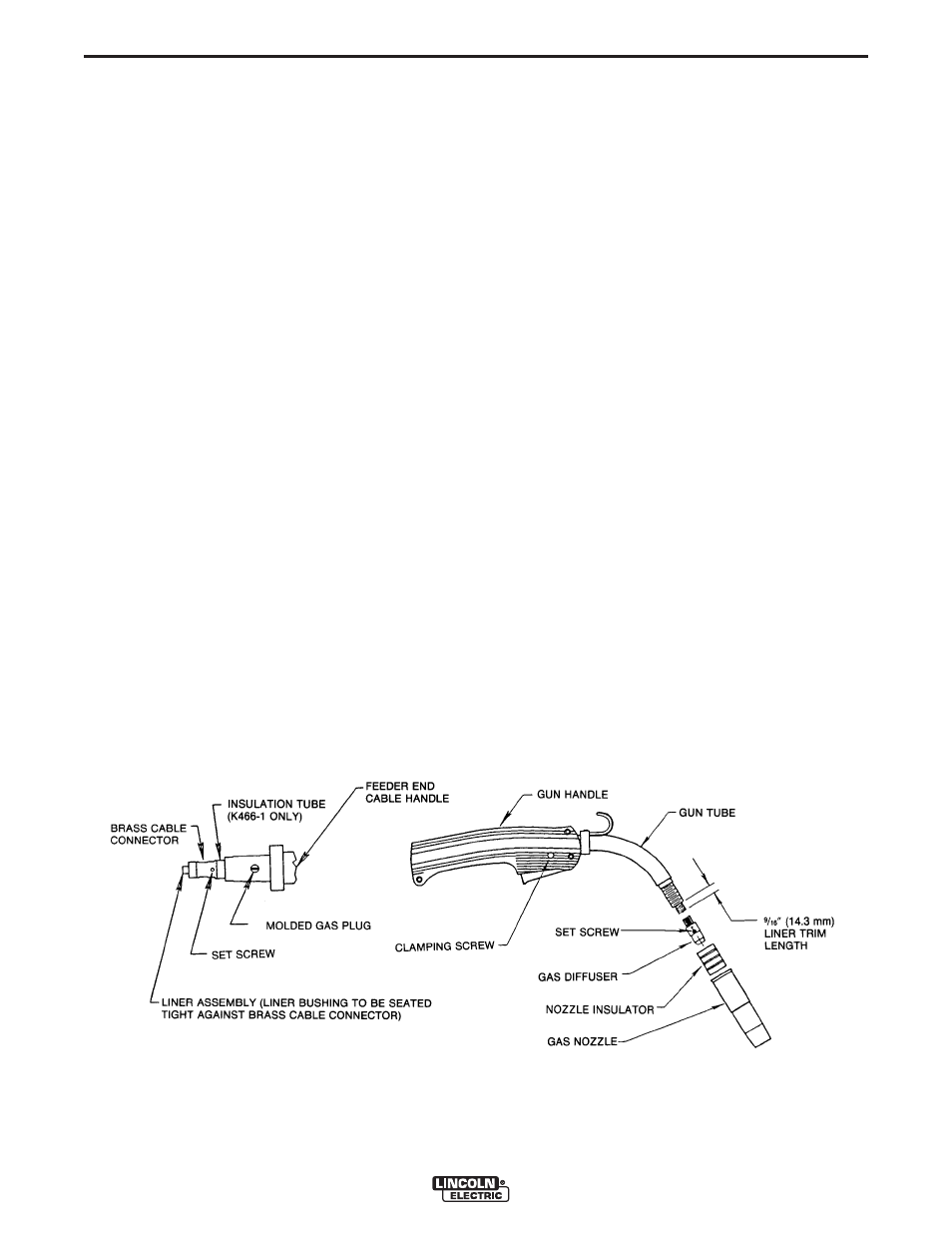

Figure B.1
