Viewing Modes

Viewing Modes

There are six different viewing modes available on the system: individual viewing of channels
1~4, Quad split-screen, and Auto-Scan. For details on Auto-Scan, see page 14.

Press the CHANNEL button

repeatedly

to switch between these viewing modes.

CHANNEL

Quad mode

Auto-Scan mode

Channel 1

Channel 2

Channel 3

Channel 4

AUTO

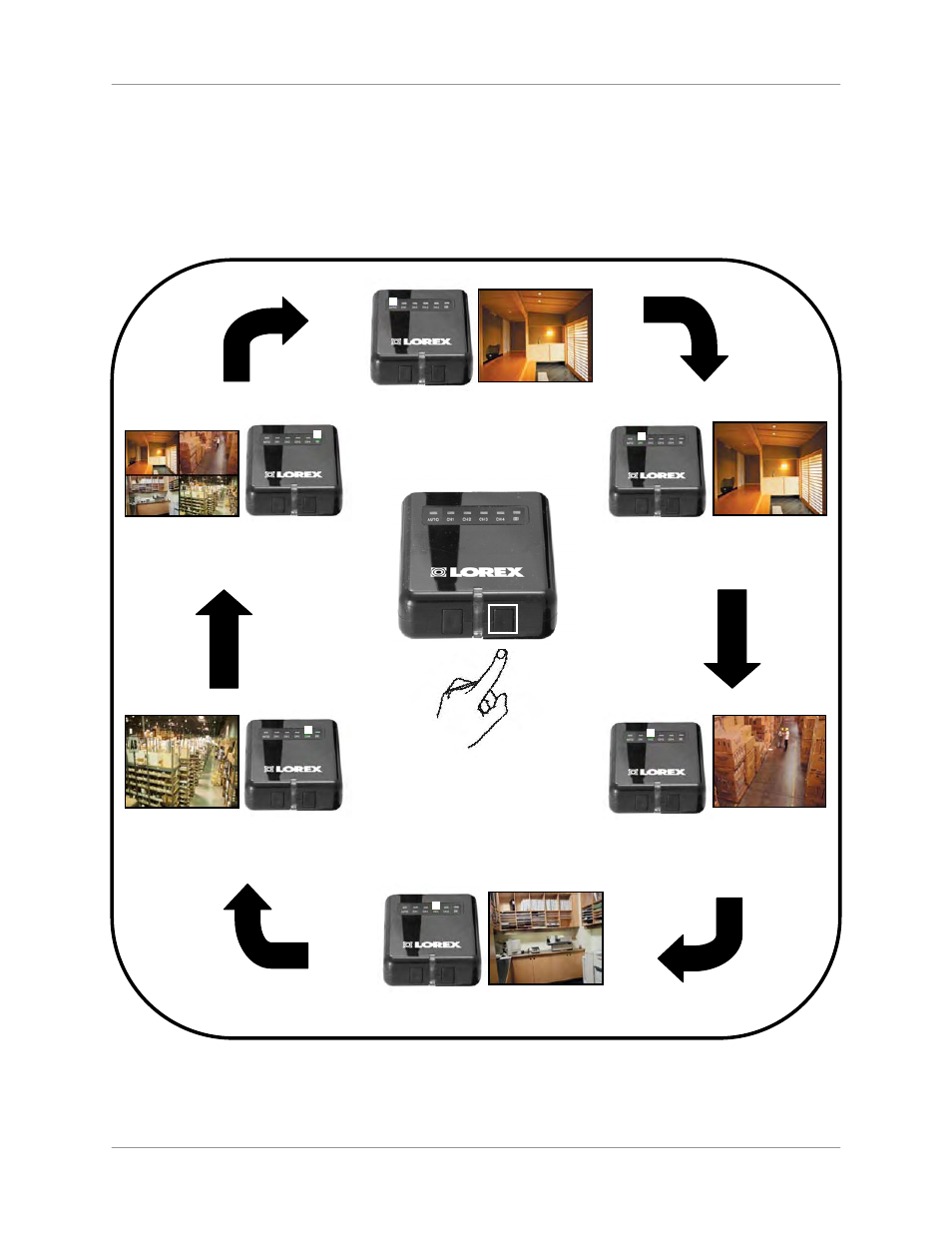

Figure 3.0 View Mode diagram

Press the CHANNEL
button to change viewing
modes*

*Images simulated.
