22
Installation

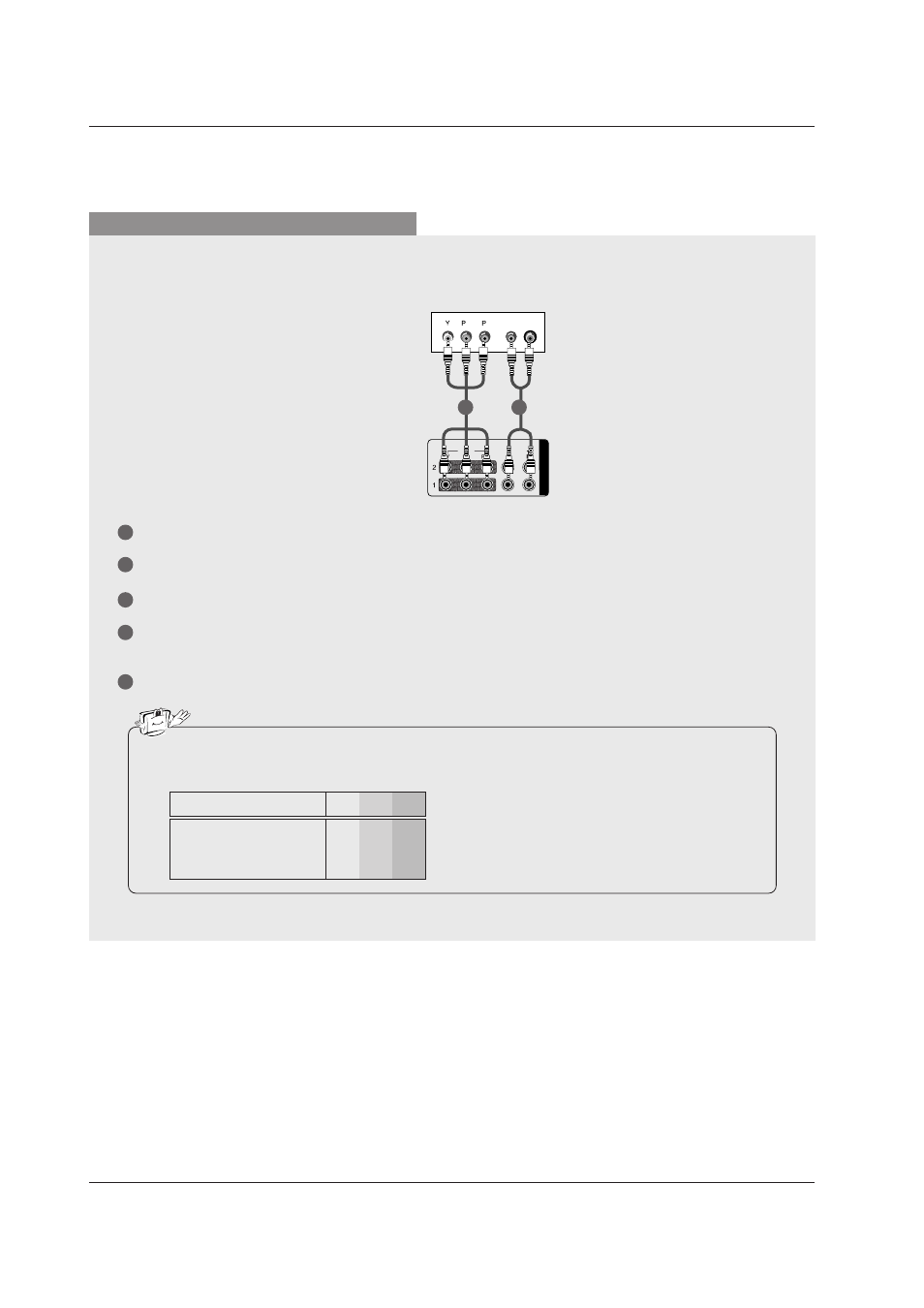

When connecting with a component cable
1
2
3
4
5
Connect the video outputs (Y, P B , P R ) of the DVD to the COMPONENT IN VIDEO jacks on the set.
Connect the audio outputs of the DVD to the COMPONENT IN AUDIO jacks on the set.
Turn on the DVD player, insert a DVD.
Select Component 1 input source with using the INPUT button on the remote control.
- If connected to COMPONENT IN 2, select Component 2 input source.
Refer to the DVD player's manual for operating instructions.
• Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Y P B P R Component ports on the TV
Y
Y
Y
Y Pb
B-Y
Cb
P B
Pr
R-Y
Cr
P R
Video output ports
on DVD player
HDMI / DVI IN
ANTENNA/
CABLE IN
VIDEO AUDIO
VIDEO AUDIO
( )
S-VIDEO
A V
IN 1
A
V
OUT
COMPONENT
IN
DIGITAL AUDIO
OUT
OPTICAL
VIDEO AUDIO AUDIO
COMPONENTCOMPONENT
IN
B R (R) AUDIO (L)
DVD
1 2
