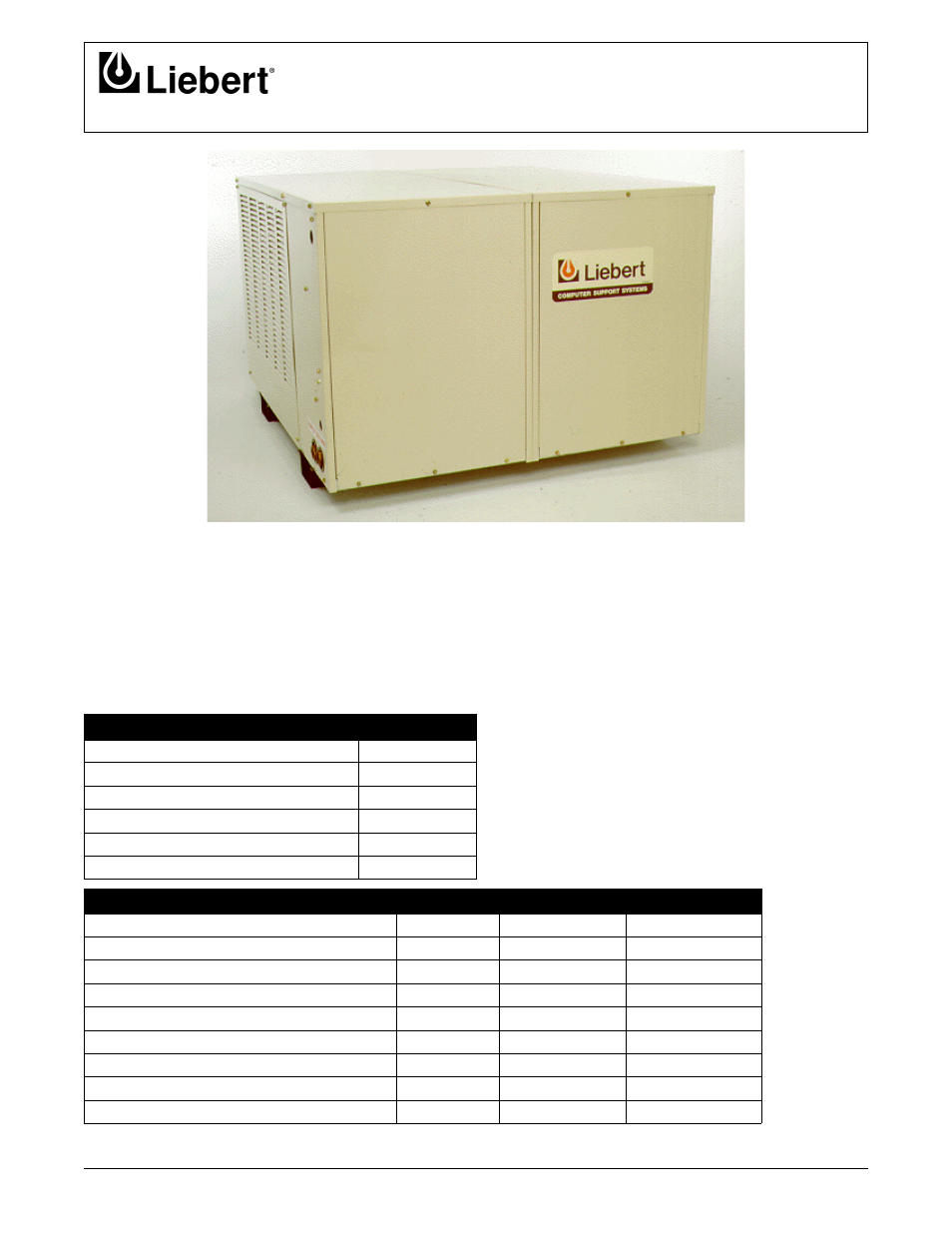

Indoor/Outdoor Process Fluid Chiller Designed for Siemens Magnetom Impact 1
Keeping Business in Business
Indoor/Outdoor Process Fluid Chiller
Designed for Siemens Magnetom Impact
• Dedicated, equipment-matched cooling supplies the proper temperature and water flow year round.
• Factory-tested, piped, wired and charged for hassle-free startup and operation.
• Clean, non-ferrous cooling loop, required for sensitive medical equipment.
• Local service and parts for quick and knowledgeable maintenance and service.
• Optional switch-over to alternate water source provides redundant, continuous operation.
• Optional remote monitoring systems keep you informed of chiller operation.
• ETL/CSA certified.
• ISO 9001 certified company.
Magnetom Impact Specifications
Fluid Specified Water /Glycol
Max Heat Dissipation—BTUH (kW) 27,325 (8)
Fluid Temperature Range °F (°C) 45-65 (7-18)
Temperature Gradient N/A
Fluid Flow Rate—GPM (l/m) 1.3 (4.9)
Fluid Pressure Drop—PSI (kPa) 7 (48.3)
Process Fluid Chiller Specifications
Model Number PS036A PS036A PS036A
Fluid Circulated Water Ethylene Glycol Propylene Glycol
Net Cooling Capacity—BTUH (kW) 27,800 (8.1) 27,900 (8.2) 27,400 (8.0)
Leaving Fluid Temperature—°F (°C) 47 (8.3) 53 (11.7) 56 (13.3)
Fluid Flow Rate—GPM (l/m) 1.3 (4.9) 1.5 (5.7) 1.6 (6.1)
Magnetom Impact Pressure Drop—PSI (kPa) 7 (48.3) 13.5 (93.1) 16.7 (115.1)
Chiller Pressure Drop—PSI (kPa) 1.5 (10.3) 2.2 (15.2) 2.6 (17.9)
Pump Total Head—PSI (kPa) 41.0 (283) 41.0 (283) 41.0 (283)
Pump—HP (kW) 3/4 (0.6) 3/4 (0.6) 3/4 (0.6)
