95
Sonar Simulator
This unit has a built-in simulator that lets you run it as if you were on
the water. All sonar features and functions are useable. When in simu-
lator mode, you will see the chart file name in the Sonar Page title bar
and a play symbol will flash on and off at the right end of the title bar.
To use the simulator:
1. From the Sonar Page, press
MENU
|
MENU
| ↓ to
S
YSTEM
S
ETUP
|
ENT
| ↓
to
S
IMULATORS
|
ENT
.

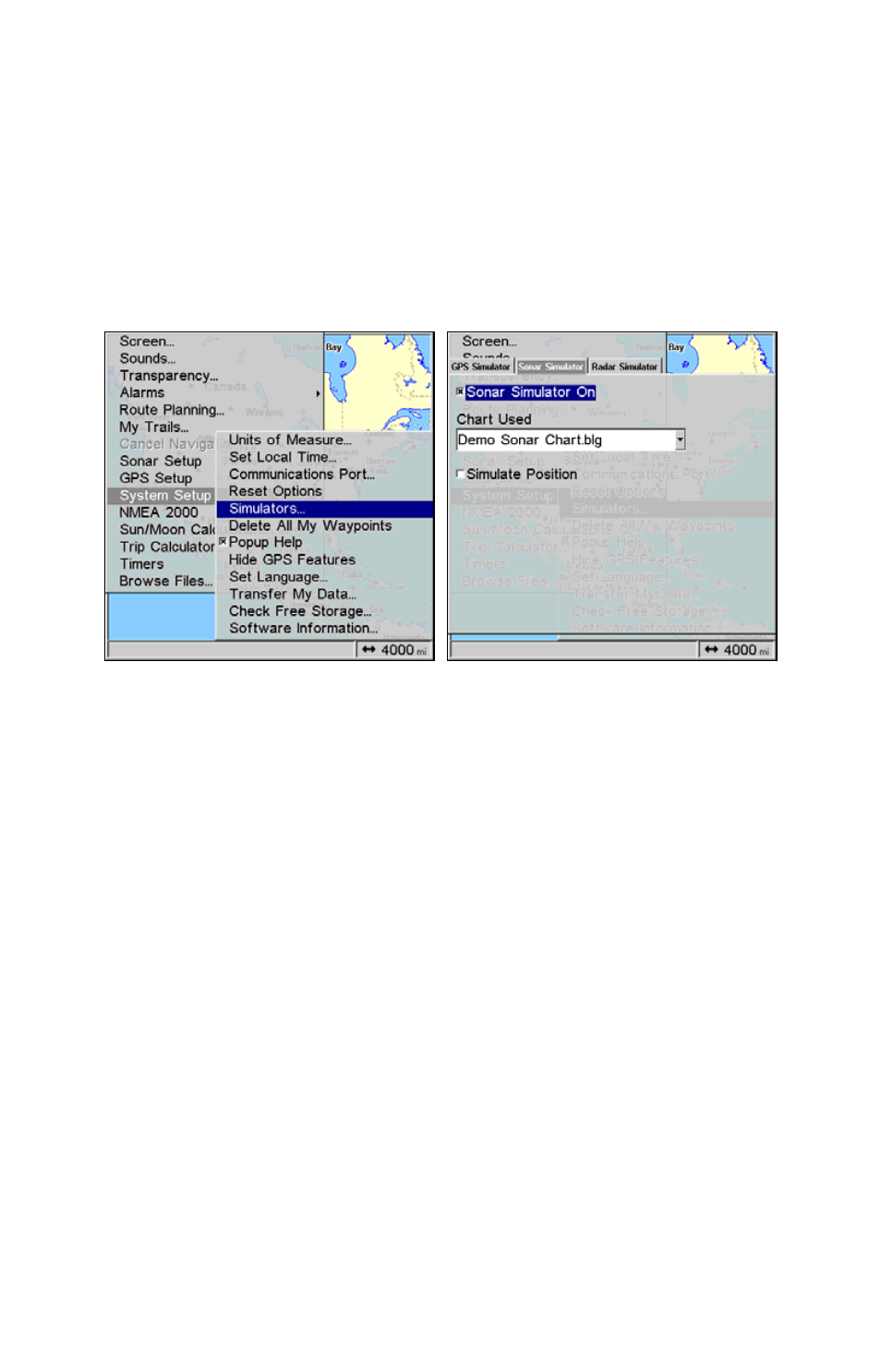

System Setup menu with Simulators selected (left). Sonar Simulator
page with Sonar Simulator On highlighted (right). The checkbox next
Sonar Simulator On is checked (turned on).
NOTE:
With Simulate Position checked, the simulator will automatically run
the GPS simulator (if GPS data was recorded with the sonar log).
2. Press → to highlight
S
ONAR
S
IMULATOR
tab. To turn on the simulator,
highlight
S
ONAR
S
IMULATOR
O
N
and press
ENT
, which will place an X in the
checkbox. Repeat these steps to turn off the simulator.
3. Press
EXIT
repeatedly to return to the main display.
