Linear CCTV CAMERA RE-BWC1 - Manual

Copyright © 2007 Linear Corporation 227793 A
RE-BWC1
Black & White
CCTV Camera
Installation Instructions
PRODUCT DESCRIPTION
Linear’s Model RE-BWC1 (P/N ACP00886A) CCTV camera can be installed inside
the RE-1 Entry System. The camera provides a video signal for viewing the area in
front of the entry system
The camera is continuously powered by the RE-1. The camera’s infrared light emitters
illuminate the area directly on front of the entry system for nighttime or low light
operation.
The camera focus has been factory adjusted to a range of three to four feet.
The RE -1 CAMERA jack is used to connect the camera to the main circuit board with
the single-ended modular cable supplied with the camera. This cable routes power to,
and video from the camera.
The RE-1 VIDEO jack is for connection to a video cable with a Type “BNC” connector. Up
to 300 feet of 75-ohm RG-59 video cable can be used. Longer cable runs may require the
use of a video amplifi er.
NOTE: If camera is being installed on an existing installation, power must be off
prior to removing circuit board.

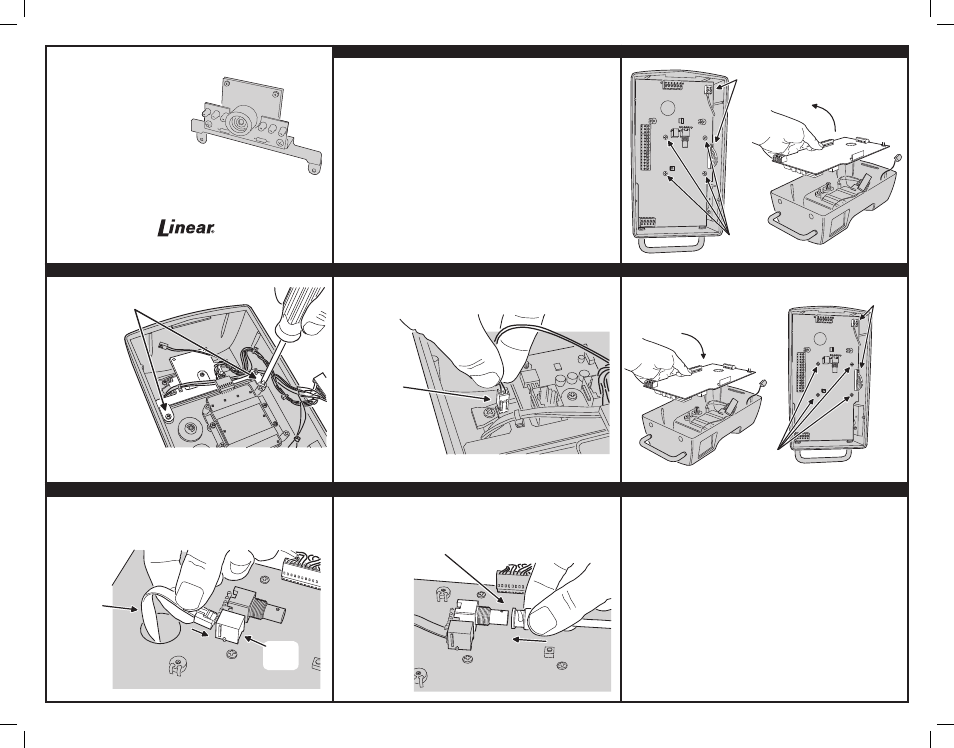

1. REMOVE CIRCUIT BOARD
2. MOUNT THE CAMERA 3. CONNECT LIGHTING POWER 4. REPLACE CIRCUIT BOARD
5. CONNECT CAMERA CABLE 6. CONNECT VIDEO CABLE LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship
for twenty four (24) months. The Warranty Expiration Date is labeled on the
product. This warranty extends only to wholesale customers who buy direct from
Linear or through Linear’s normal distribution channels. Linear does not warrant
this product to consumers. Consumers should inquire from their selling dealer
as to the nature of the dealer’s warranty, if any. There are no obligations or
liabilities on the part of Linear LLC for consequential damages arising
out of or in connection with use or performance of this product or other
indirect damages with respect to loss of property, revenue, or profi t, or
cost of removal, installation, or reinstallation. All implied warranties, including
implied warranties for merchantability and implied warranties for fi tness, are valid
only until Warranty Expiration Date as labeled on the product. This Linear LLC
Warranty is in lieu of all other warranties express or implied.
All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an
RPA# and other important details.
DISCONNECT THESE
TWO CONNECTORS
REMOVE THESE
4 SCREWS
REMOVE
CIRCUIT
BOARD
SECURE THE CAMERA ASSEMBLY
WITH TWO SCREWS
IMPORTANT!
TO PREVENT INTERNAL
INFRARED LIGHT FROM
ENTERING THE CAMERA,
BE SURE THE FOAM GASKET
AROUND THE CAMERA'S
LENS PRESSES FIRMLY AGAINST
THE RE-1'S FACEPLATE
INSERT WIRING
HARNESS PLUG
INTO THE 2-PIN
LIGHTING
CONNECTOR
PLUG THE CAMERA CABLE
INTO THE CAMERA'S JACK
AND THE RE-1'S CAMERA JACK
RE-1
CAMERA
JACK
CAMERA
CABLE FROM
CAMERA'S JACK
CONNECT THE VIDEO CABLE FOR THE MONITOR
TO THE RE-1'S VIDEO OUTPUT CONNECTOR
RECONNECT THESE
TWO CONNECTORS
SECURE WITH
4 SCREWS
REPLACE
CIRCUIT
BOARD
