3 Chapter 2: Getting to Know the Phone Adapter
The Back Panel
Internet Phone Adapter with 2 Ports for Voice-over-IP
Chapter 2: Getting to Know the Phone Adapter
The Back Panel
The Phone Adapter’s ports are located on the back panel.
PHONE 1Port The PHONE 1 port (for your primary Internet phone line) allows you to connect your telephone
to the Phone Adapter using an RJ-11 telephone cable.
PHONE 2 Port If you have a second Internet phone service account, use the PHONE 2 port to connect a
second telephone (or fax machine) to the Phone Adapter using an RJ-11 telephone cable.
INTERNET Port The INTERNET port allows you to connect the Phone Adapter to your router or gateway using a
Category 5 (or better) Ethernet network cable.
POWER Port The POWER port is where you connect the included power adapter.

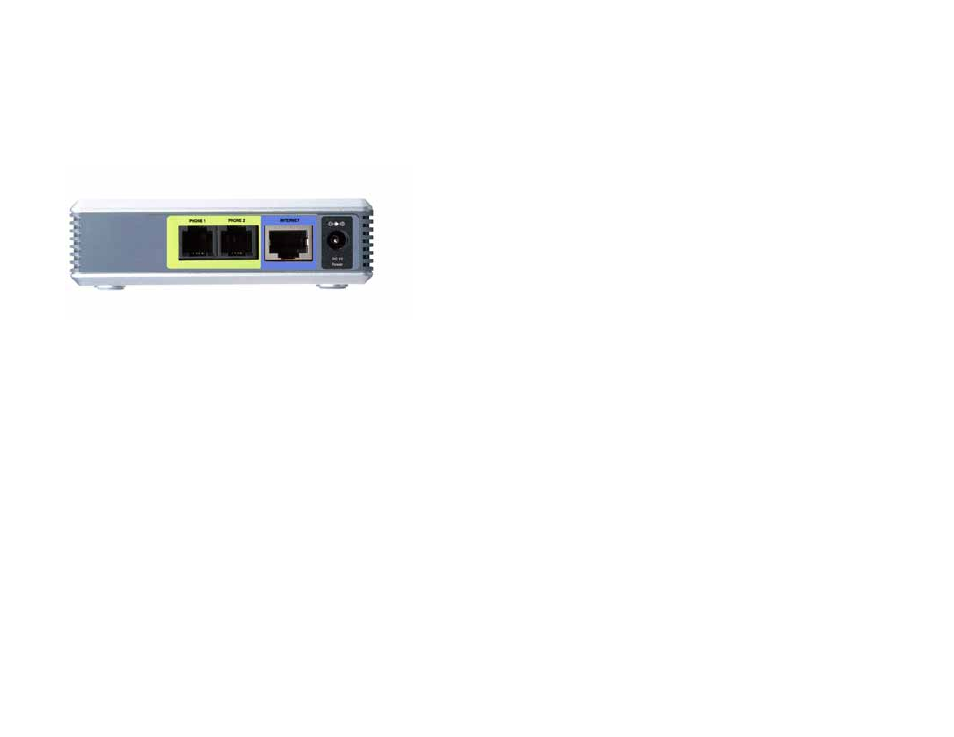

Figure 2-1: Back Panel
