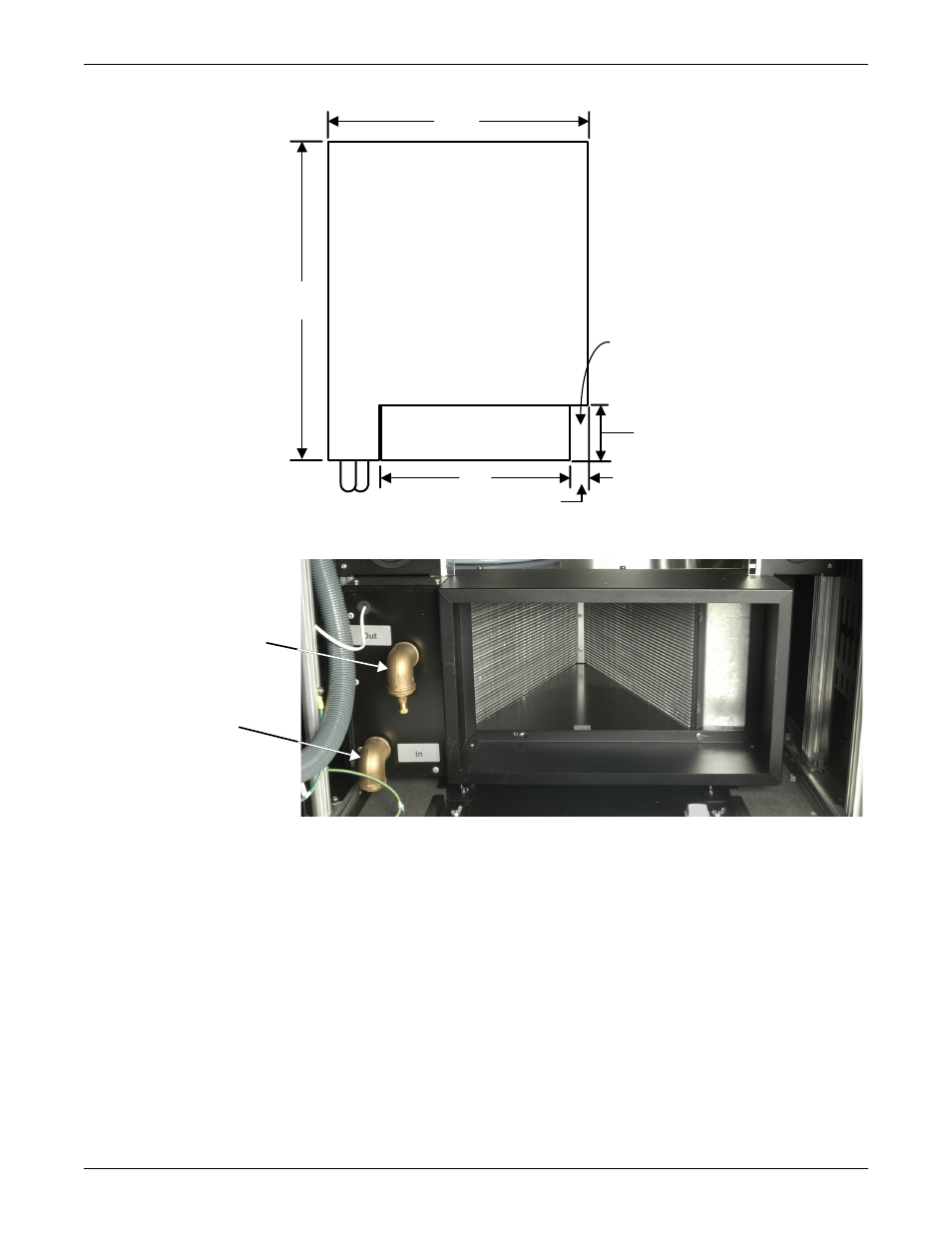

Figure 8 heat exchanger, Figure 9 heat exchanger connection, Figure 8 – Liebert Rack Enclosure With Integrated Water-Based Cooling XDK User Manual
Page 17: Heat exchanger, Figure 9, Heat exchanger connection
Installation and Commissioning
13
Figure 8
Heat exchanger
Figure 9
Heat exchanger connection
Liebert recommends insulating the cold water pipes with waterproof insulation to prevent condensa-
tion and losses.
9-7/8"
(150mm)
2"
(50mm)
2"
(50mm)
33-7/16"
(850mm)
27-3/8"
(695mm)
Space
for
Cabling
Top View
Water supply
Water return
