Optional Color CCTV Camera
Linear’s Model CCM-1 (P/N ACP00904) CCTV camera can be installed
inside the AE-1000 Entry System. The camera provides a video signal for
viewing the area in front of the entry system.
The CAMERA connector is used to connect the camera to the AE-1000.
The 4-conductor cable routes power to, and video from the camera.
The VIDEO jack is the camera output for connection to a video cable with
a Type “BNC” connector. Up to 400 feet of 75-ohm RG-59 video cable can
be used. Longer cable runs may require the use of a video amplifi er.

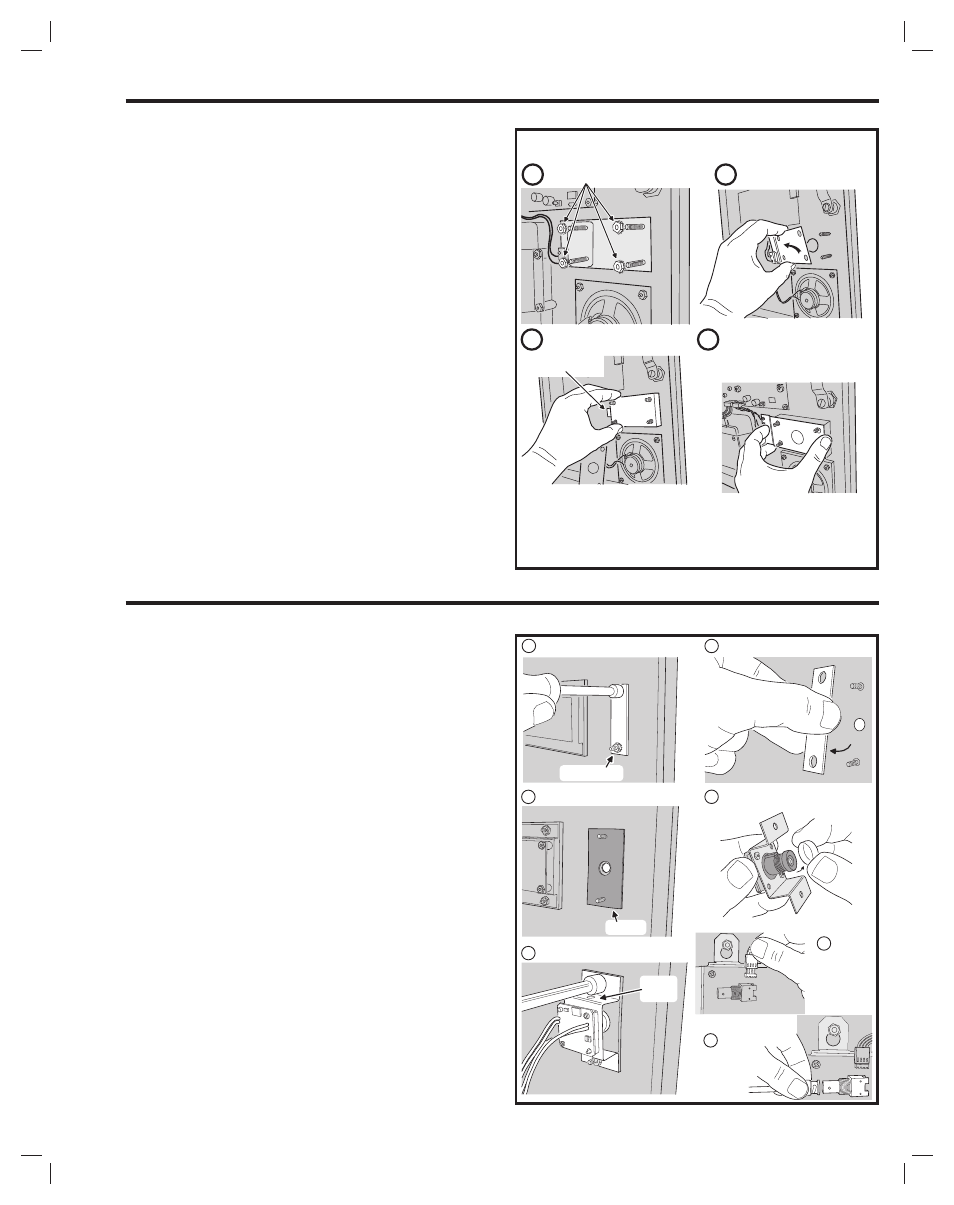

Camera Installation
1. Remove the two locknuts and the cover plate from the camera
mounting studs above the keyswitch on the AE-1000 faceplate.
2. Mount the camera assembly on the two studs, with the alignment
hole in the camera bracket towards the top. Secure the camera
with the two locknuts.
3. Connect the camera’s cable to the AE-1000’s CAMERA connector.
4. Connect the video cable to the AE-1000’s VIDEO connector.
5. Connect the other end of the video cable to the viewing monitor or
the video distribution system.
220777 C IMAGE 13
Optional Postal Lock
A postal lock can be installed in the AE-1000 Entry System to provide
keyed access for the postal service. The AE-1000 case is designed to
accept a U.S. Postal Service postal lock. When the postal lock is engaged,
the programmed output relay will activate.
Postal Lock Installation
1. Remove the four locknuts that retain the postal lock switch plate
(above the speaker on the AE-1000 faceplate).
2. Remove the switch plate hole cover plate, and block from the four
studs. The hole cover plate and block will not be used and can be
discarded.
3. Install the postal lock assembly onto the four studs. The postal
lock’s moving plunger should point towards the middle of the
faceplate (see fi gure).
4. Replace the postal lock switch plate with the microswitch oriented
inward where it will be pressed by the postal lock’s moving plunger
(see fi gure).
5. Secure the postal lock and switch plate with the four locknuts.
✦ NOTE: Be sure the postal lock’s plunger actuates the
microswitch. Adjust the switch plate and the postal lock then test
the action until the microswitch fully actuates.
6. Tighten the four locknuts after the adjustment and testing is
complete.
7. When programming the system, set the postal lock option to
activate the desired relay output.
