PREPARATION

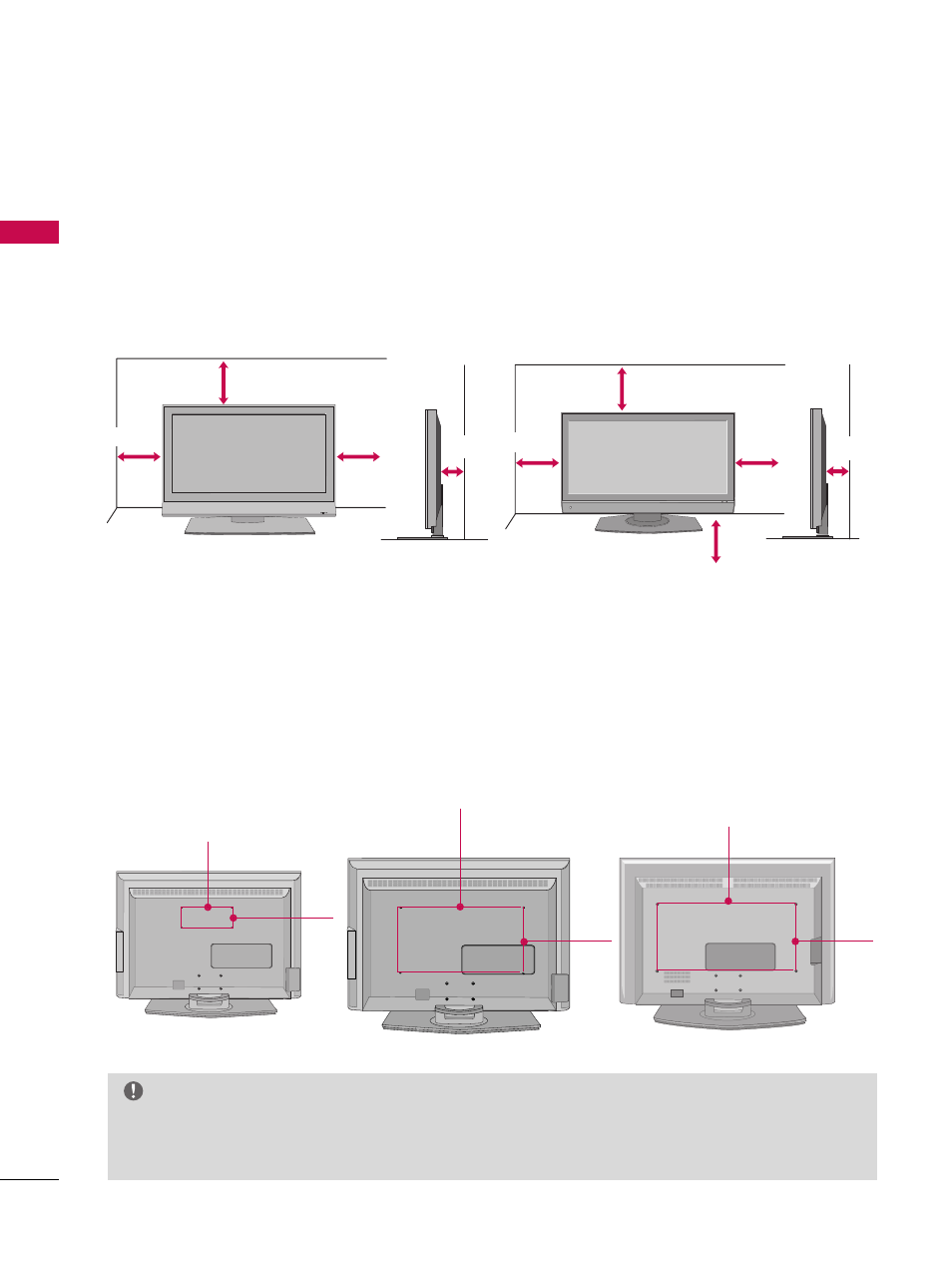

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 in. on each side and the top, 2.36 in. on the bottom, and 4 in.
from the wall.

4 inches

4 inches

R

4 inches

4 inches

37/42/47/52LB5D

32/37/42LB4D

4 inches

4 inches

4 inches

4 inches

VESA WALL MOUNTING

This product accepts a VESA-compliant mounting interface pad. (optional)

There 4 threaded holes are available for attaching the bracket.

G

G

Screw length needed depends on the wall mount used. For further information, refer to the VESA
Wall Mounting Instruction Guide.

NOTE

37/42/47/52LB5D

37/42LB4D

AV IN 2

L/

MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

AV IN 2

L/

MONO

R

AUDIO

VIDEO

USB IN

400mm

400mm

600mm

600mm

100mm

200mm

32LB4D
