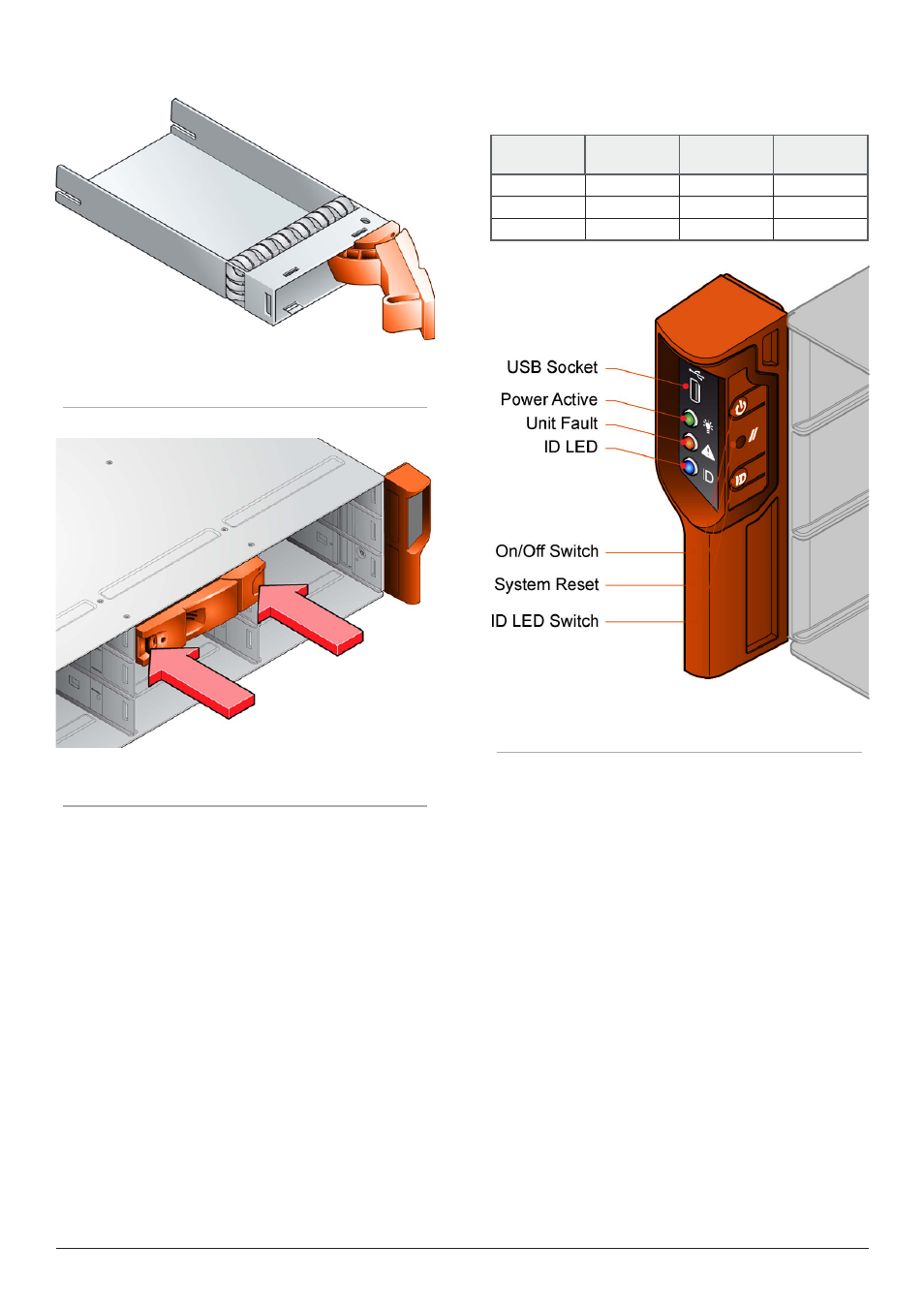

Figure 8: Fitting Drives (Note: ensure the carriers are fully engaged in
the enclosure.)
Figure 7: Drive Carrier Module (Note: ensure that the handle always
opens from the left.)
3.8. Operator Panel
LED
Color
Normal
Fault
Power On
Green
On
On
Fault
Amber
Off
On
Enclosure ID
Blue
N/A
N/A
Figure 9: Operator Panel
