Step

4.

Attaching

the

cables

to

the

drive

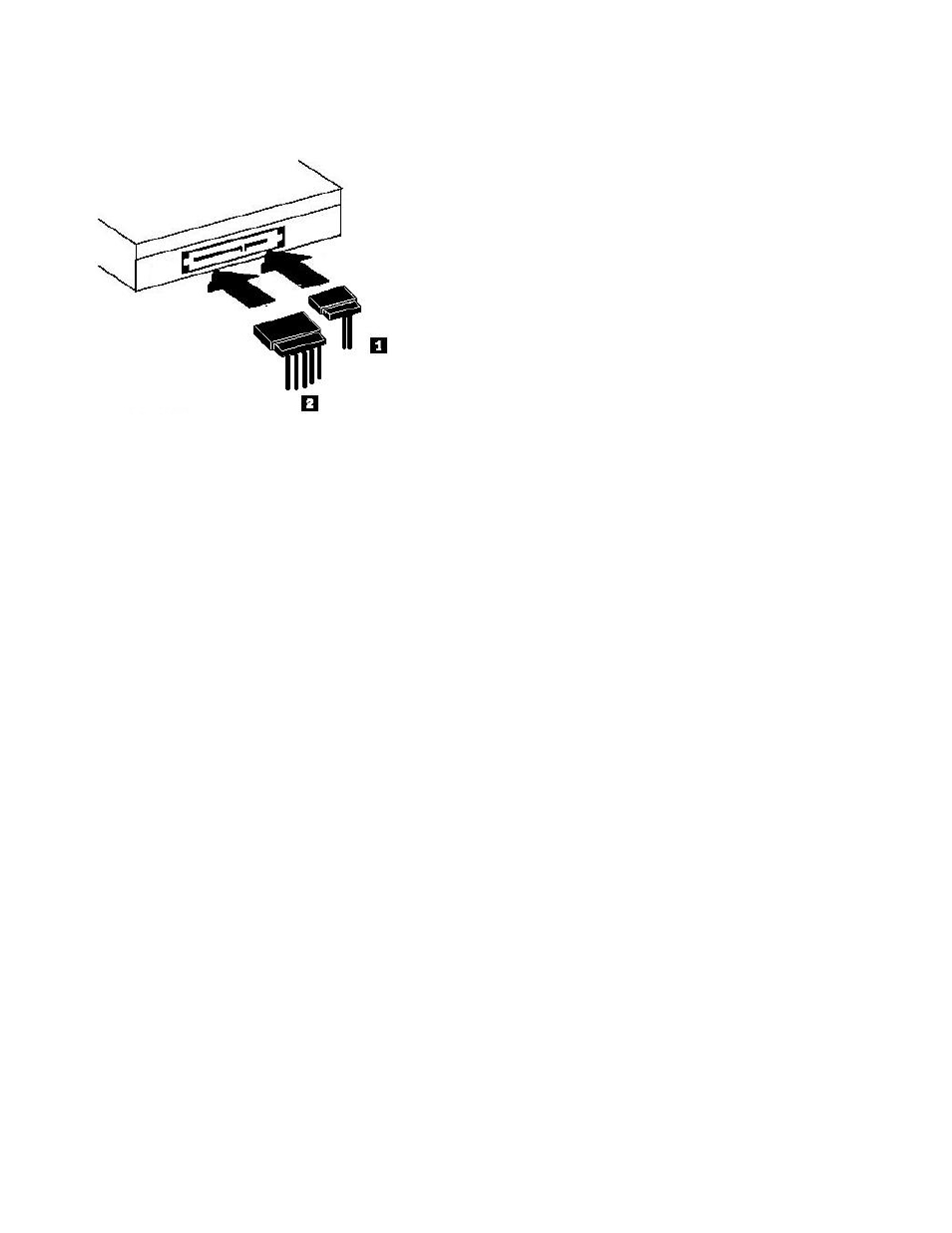

The

following

diagram

shows

where

to

connect

the

cables

to

the

drive.

1.

Attach

a

7-pin

Serial

ATA

data

cable

connector 1 to

the

Serial

connector

on

the

drive.

2.

Attach

a

15-pin

power

cable 2 to

the

power

connector

on

the

drive.

Step

5.

Completing

the

hardware

installation

1.

Ensure

that

the

drive

is

securely

mounted

and

that

the

connectors

are

firmly

attached.

2.

Ensure

that

the

cables

do

not

interfere

with

the

computer

cover,

and

that

they

do

not

block

the

power-supply

fan

blades

or

airflow

paths.

3.

Reinstall

the

computer

cover.

4.

Reconnect

all

external

devices.

5.

Reconnect

all

power

cords

into

the

electrical

outlets.

2-2

ThinkCentre

and

Lenovo

Super

Multi-Burner

Drive

(Serial

ATA)

User’s

Guide
