Product Description
7

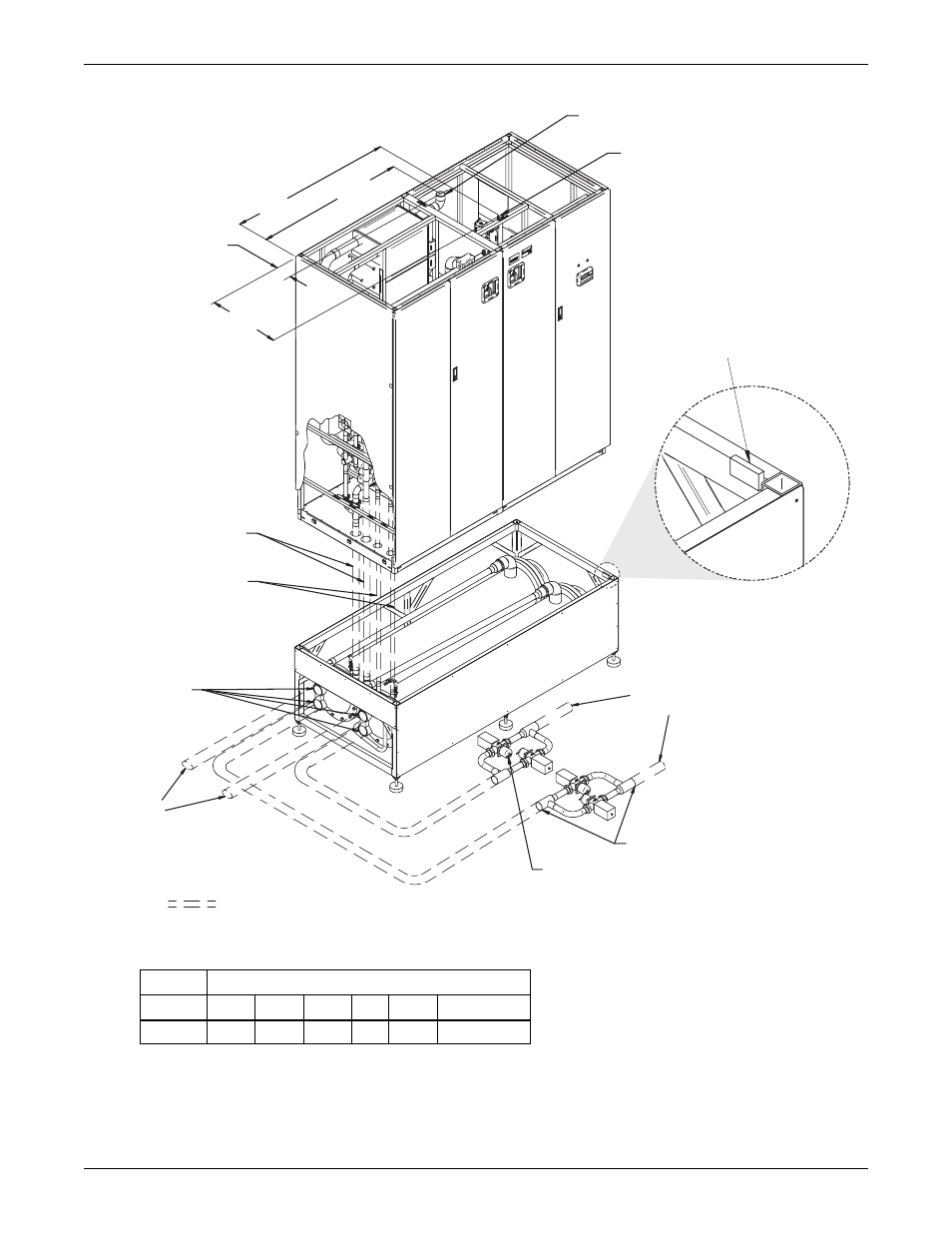

Figure 7
Water/glycol Liebert XDC on a floor stand—positioning and piping connections
Table 3
Liebert XDC water/glycol piping connection Sizes
Model
Piping Outlet Connection Sizes, OD Cu, inches
50/60Hz
A
B
C
D
E*
F**
XDC160
2-1/8
1-1/8
1-3/8
7/8
2-1/2
2-1/8 or 2-5/8
* Threaded Female Conection
** 2-1/8" for 1" WRV, 2-5/8" for 1-1/4" WRV
Customer
Water
Supply
Customer
Water
Return
Customer Provided Piping
C - Hot Gas
Refrigerant Lines
D - Liquid
Refrigerant Lines
6"
(153mm)
B - Supply to
Cooling Units
F - Cup Fitting
E - Threaded
Female
Connections
A - Return from
Cooling Units
23"
(584mm)
47"
(1194mm)
44"
(1118mm)
Capillary Lines are 48" (1220mm)
Limit Valve Distance from Condensers
DPN001419
Pg. 01, Rev. 01
Welded Tab
DETAIL A
A
