Page 11
5
Chapter 2: Getting to Know the Switch

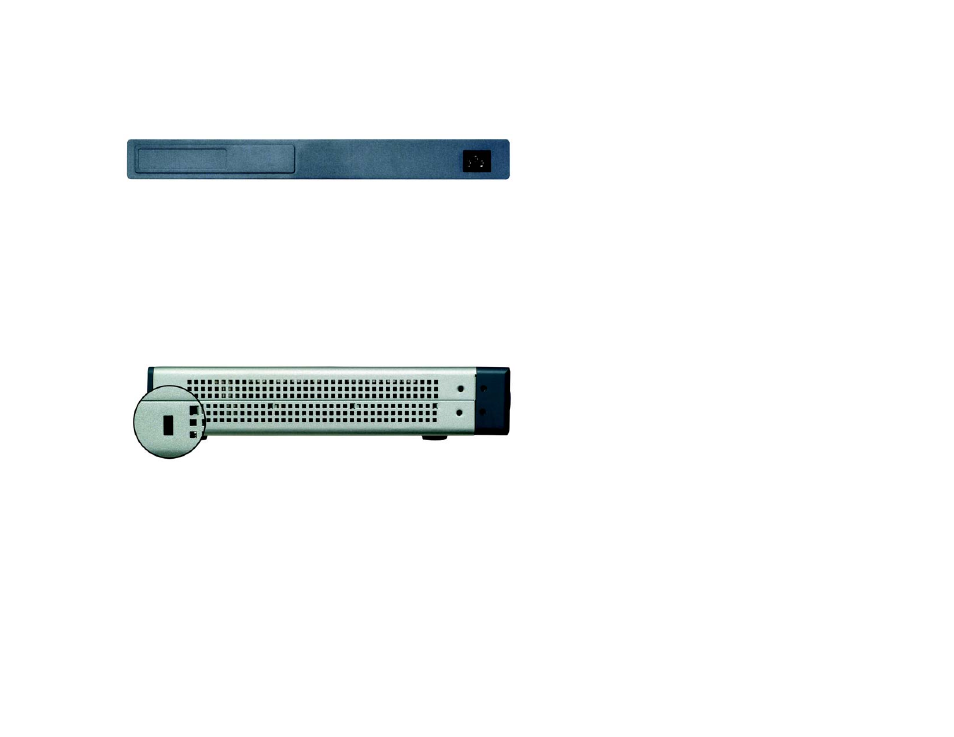

The Back Panel
24-port 10/100 + 2-Port Gigabit Switch with WebView
The Back Panel
The power port is located on the back panel of the Switch.
Power
The Power port is where you will connect the power cord.
The Side Panel
The security slot is located on a side panel.
Security Slot
The security slot is where you can attach a lock so the Switch will be protected from theft.
Figure 2-3: Side Panel
Figure 2-2: Back Panel
