Chapter 1
Product Overview
1 12 Volt Power Over Ethernet Adapter Kit
Chapter 1:
Product Overview
Introduction
Thank you for choosing the Linksys 12 Volt Power Over
Ethernet Adapter Kit, comprised of the Injector and
Splitter. The Injector sends power and data over the
Ethernet cable to the Splitter. Then the Splitter separates
the data and power back into two cables and delivers
them to the remotely located access point or other
network device that requires a 12-volt power input. The
Injector can also be used by itself with any Power Over
Ethernet (POE)-enabled network device that accepts
48 volts directly on a POE port.
NOTE: If your Linksys product uses a 5-volt
power input, then you should use the 5-volt kit,
model number: WAPPOE.
This is a list of compatible Linksys products, alphabetized
by model number:
ADSLMUE1 (all versions) - ADSL Modem with USB & •
Ethernet
AG041 - ADSL Gateway with 4-Port Switch
•
BEFSX41 (versions 1 and 2) - Broadband Firewall Router •
with 4-Port Switch/VPN Endpoint
BEFW11S4 (version 4) - Wireless-B Broadband Router
•
RT31P2 - Broadband Router with 2 Phone Ports •
WAG54G (versions 1.2 and 2) - Wireless-G ADSL •
Gateway
WAP54G (version 2) - Wireless-G Access Point
•
WCG200 (all versions) - Wireless-G Cable Gateway •
WGA54G - Wireless-G Game Adapter •
WPS54GU2 - Wireless-G PrintServer for USB 2.0 •
WRK54G - Wireless-G Broadband Router •
WRT54G - Wireless-G Broadband Router •
WRT54GS - Wireless-G Broadband Router with •
SpeedBooster
WRT54GP2 - Wireless-G Broadband Router with 2
•
Phone Ports
Injector

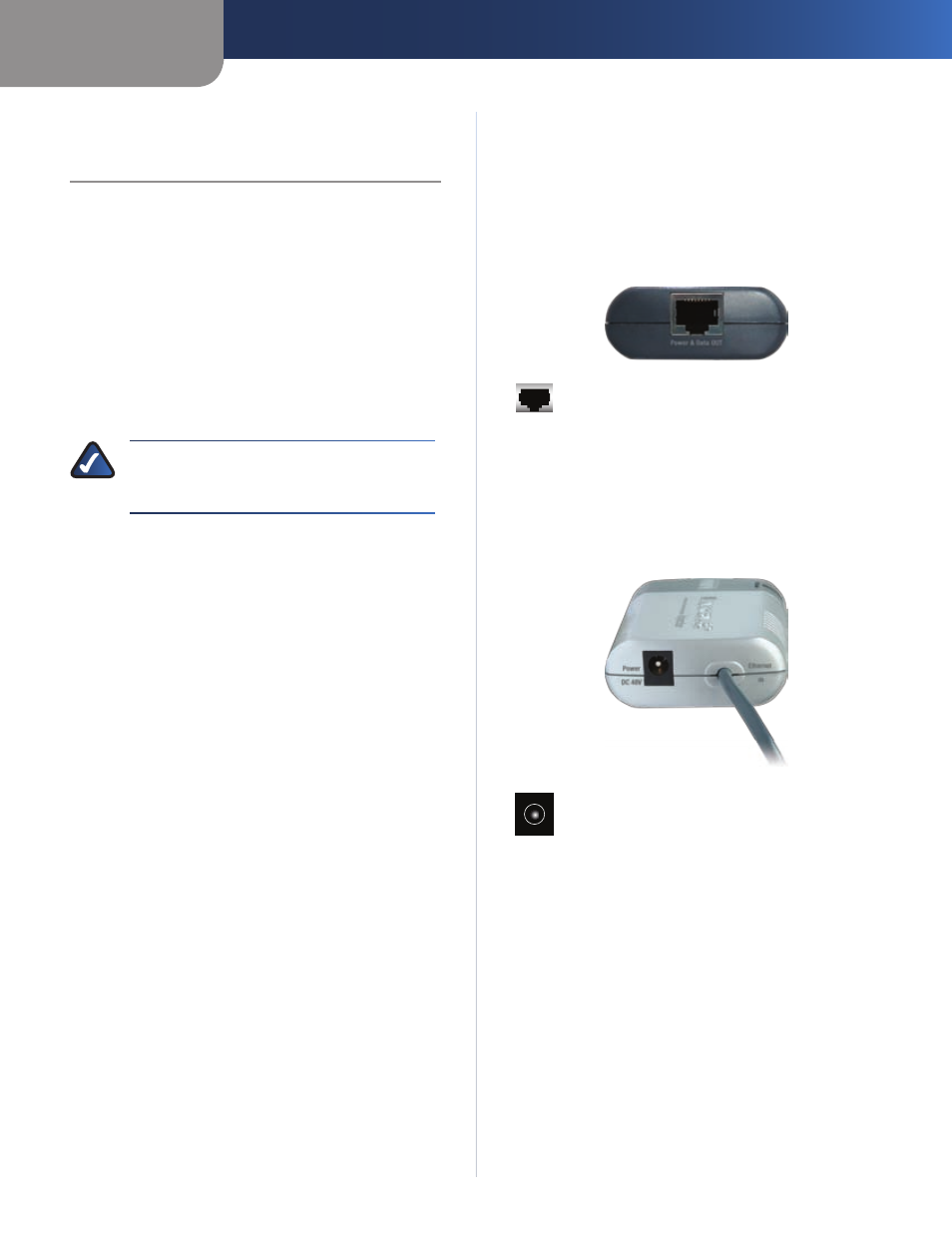

The Injector’s built-in cable and ports are located on side
panels.
Injector’s First Side Panel
The Power & Data OUT port is located on the Injector’s first
side panel.
Power & Data OUT This port allows you to
connect the Injector to the Splitter or a network
device that supports inline power. (You will use
the included Ethernet network cable to make
this connection.)
Injector’s Second Side Panel
The built-in Ethernet network cable and Power port are
located on the Injector’s second side panel.
Power The Power port is where you will
connect the included adapter.
Ethernet IN The Injector has a built-in Ethernet
network cable. You will connect this cable to one
of the Ethernet network ports on your router or
switch.
